With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine and select "DATA MONITOR" mode for "A/T" with CONSULT-II.

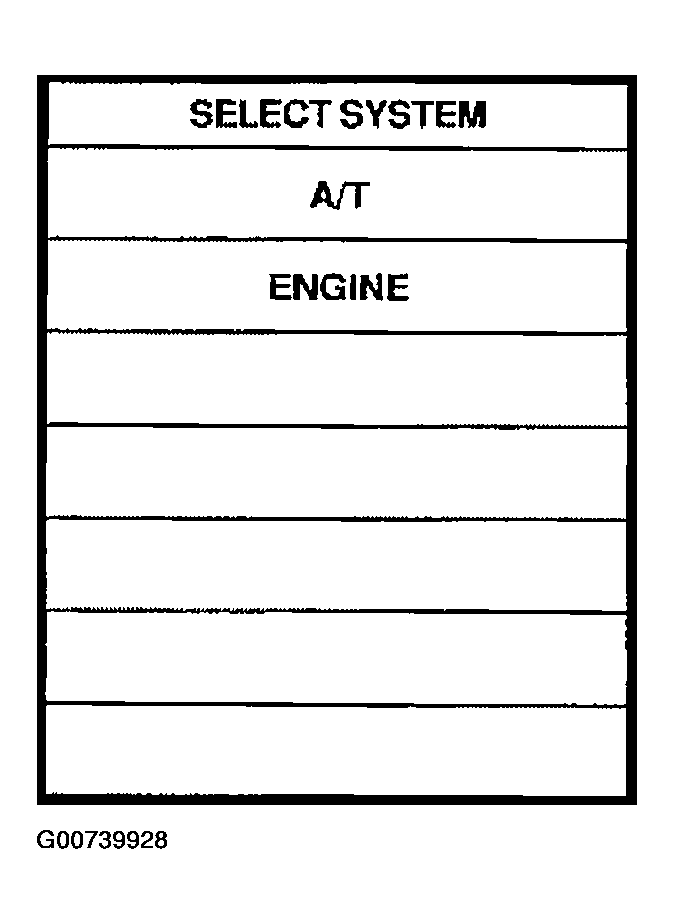

    Fig 1: CONSULT-II Display - SELECT SYSTEM
    G00739928Courtesy of NISSAN MOTOR CO., U.S.A.

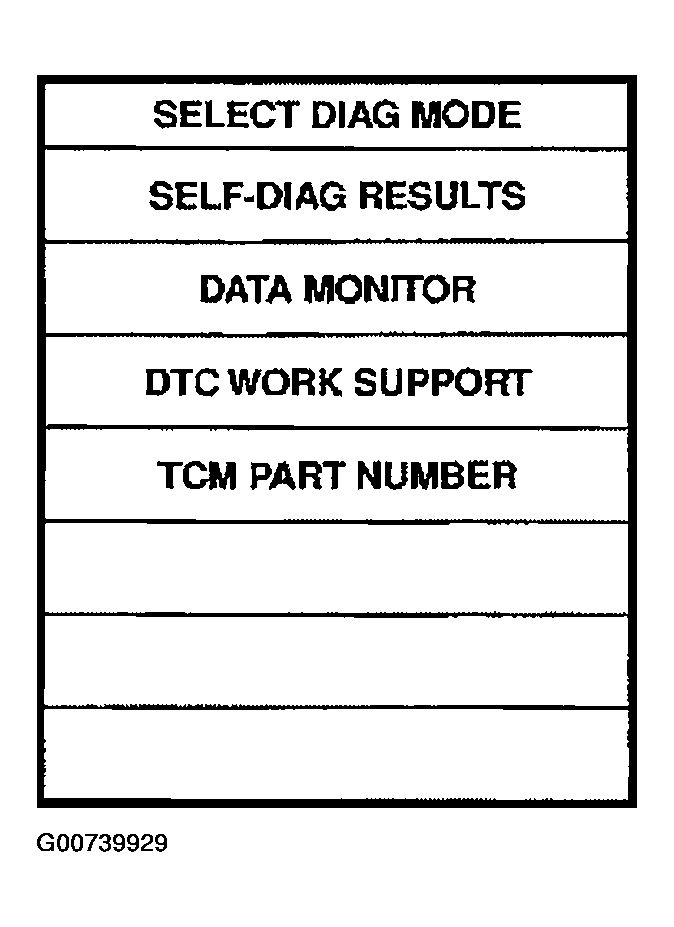

    Fig 2: CONSULT-II Display - SELECT DIAG MODE
    G00739929Courtesy of NISSAN MOTOR CO., U.S.A.

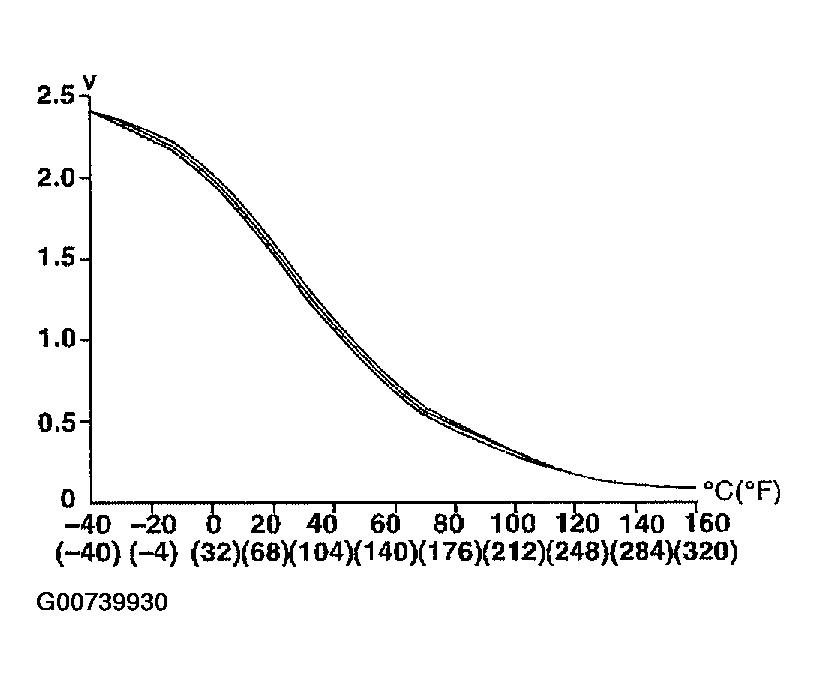

  2. Make sure that output voltage of A/T fluid temperature sensor is within the range below.

    FLUID TEMP SEN: 0.5 - 1.5V

    If out of range, drive the vehicle to decrease the voltage (warm up the fluid) or stop engine to increase the voltage (cool down the fluid).

  3. Select "1ST GR FNCTN P0731" of "DTC WORK SUPPORT" mode for "A/T" with CONSULT-II and touch "START".
  4. Accelerate vehicle to 20 to 25 km/h (12 to 16 MPH) under the following condition and release the accelerator pedal completely.

    THROTTLE POSI: Less than 1.0/8 (at all times during step 4) Selector lever: D position

    • Check that "GEAR" shows "2" after releasing pedal.
  5. Depress accelerator pedal to WOT (more than 7.0/8 of "THROTTLE POSI") quickly from a speed of 20 to 25 km/h (12 to 16 MPH) until "TESTING" changes to "STOP VEHICLE" or "COMPLETED". (It will take approximately 3 seconds.) If the check result NG appears on CONSULT-II screen, go to "DIAGNOSTIC PROCEDURE "

    If "STOP VEHICLE" appears on CONSULT-II screen, go to the following step.

    • Check that "GEAR" shows "1" when depressing accelerator pedal to WOT.
    • If "TESTING" does not appear on CONSULT-II for a long time, select "SELF-DIAG RESULTS" for "ENGINE". In case a 1st trip DTC other than P0731 is shown, refer to applicable "TROUBLE DIAGNOSIS FOR DTC".
  6. Stop vehicle.

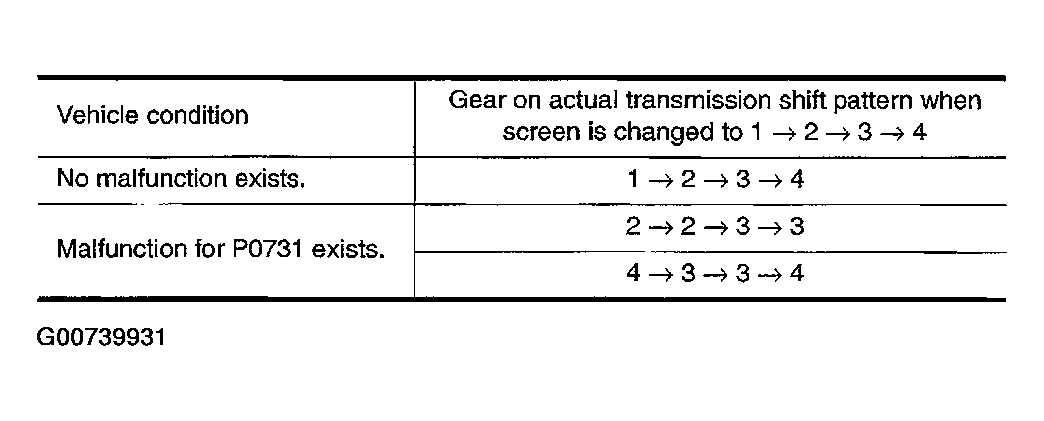

  7. Follow the instruction displayed. (Check for normal shifting referring to the table below.)
    Fig 3: Gear Shifting Pattern Chart
    G00739930Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 4: Temperature/Voltage Graph
    G00739931Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Make sure that "OK" is displayed. (If "NG" is displayed, refer to "DIAGNOSTIC PROCEDURE".)

    Refer to "DIAGNOSTIC PROCEDURE ".

    Refer to "SHIFT SCHEDULE ".
