Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK INPUT SIGNAL (WITH CONSULT-II)
With CONSULT-II
1. Start engine.

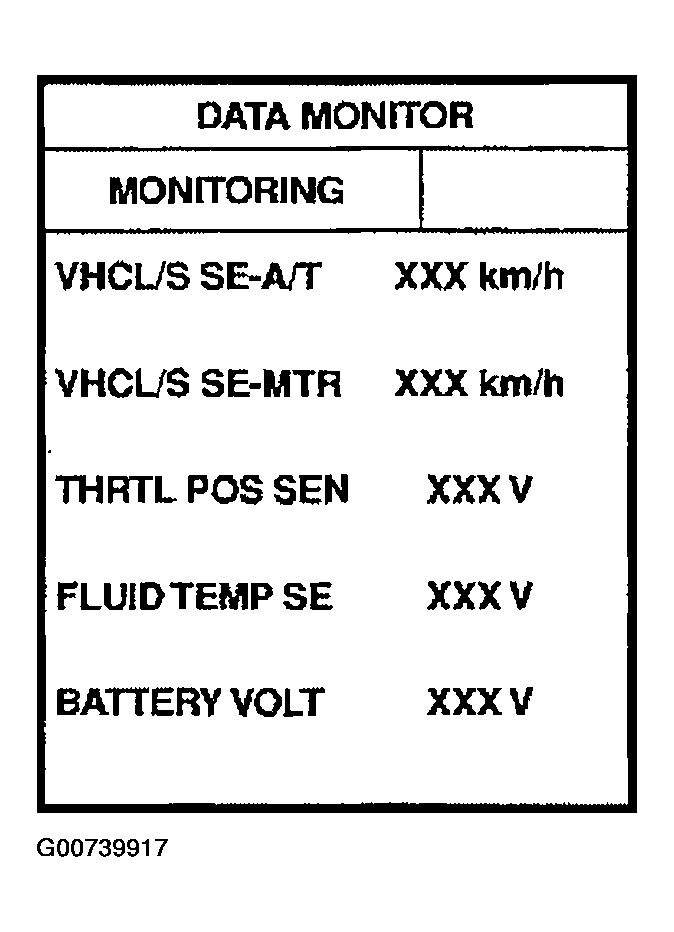

  Fig 1: CONSULT-II Display - DATA MONITOR
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Select "DATA MONITOR" mode for "A/T" with CONSULT-II.
3. Read out the value of "VHCL/S SE-A/T" while driving.
  Check the value changes according to driving speed.
OK or NG
1. OK: GO TO 5.
2. NG: GO TO 2.
CHECK REVOLUTION SENSOR (WITH CONSULT-II)
With CONSULT-II
1. Start engine.

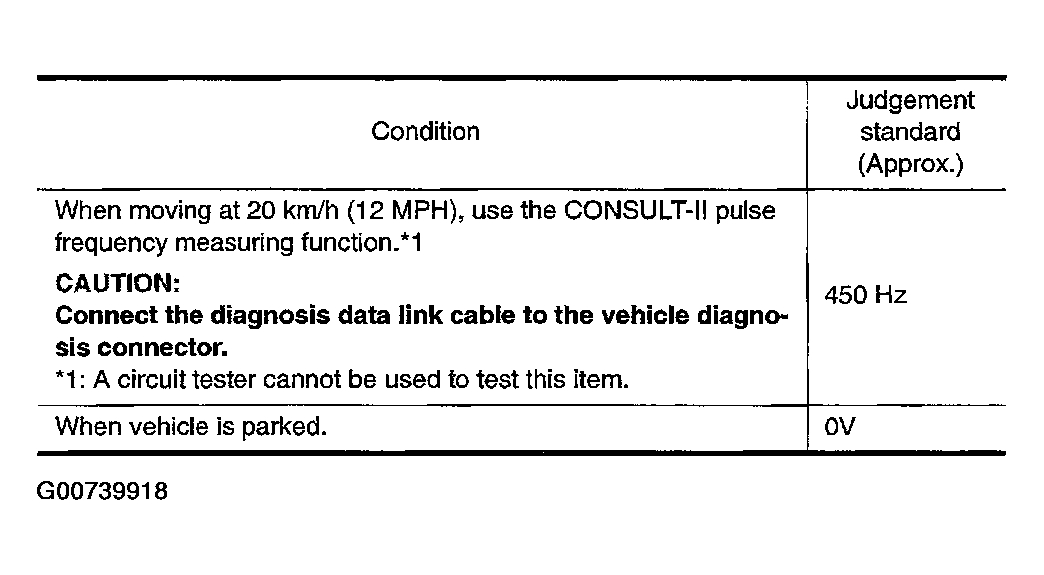

  Fig 2: Vehicle Condition - Judgement Standard Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Check pulse between TCM harness connector E143 terminal 29 (W) and ground.

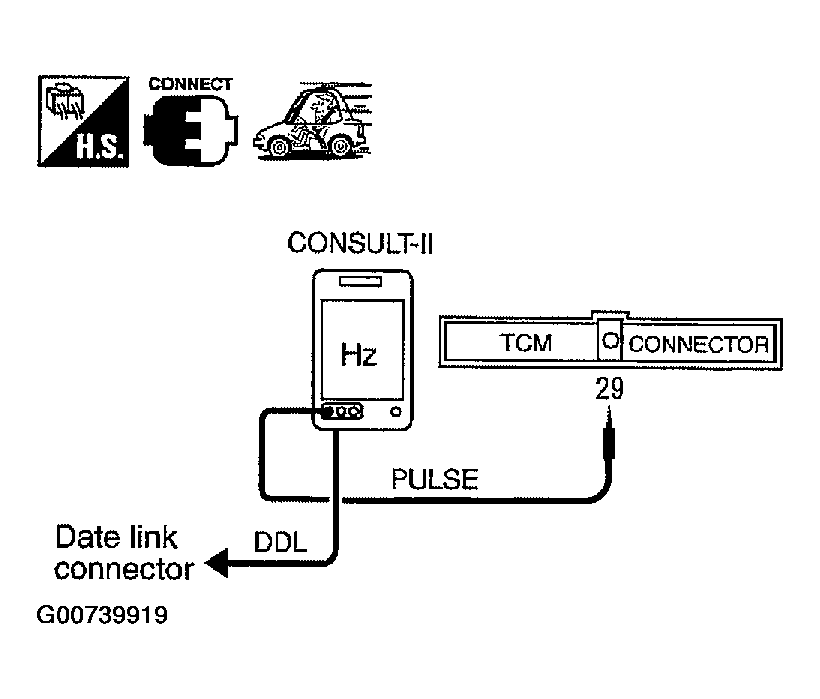

  Fig 3: Checking Pulse Between TCM Harness Connector E143 Terminal 29 (W) And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK: GO TO 5.
2. NG: GO TO 3.
CHECK POWER FOR REVOLUTION SENSOR
1. Turn ignition switch to OFF position.

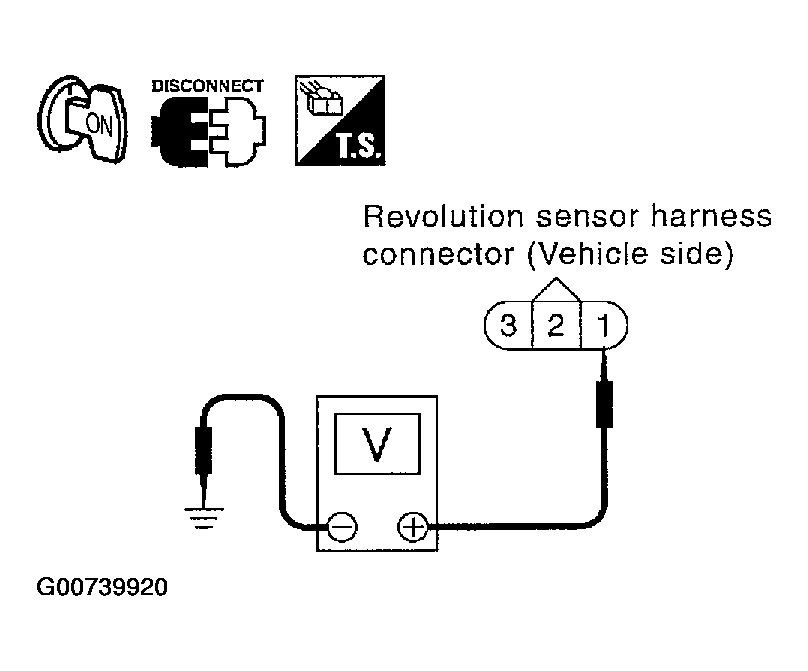

  Fig 4: Checking Voltage Between Revolution Sensor Harness Connector F38 Terminal 1 (R/Y) And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Disconnect the revolution sensor harness connector.
3. Turn ignition switch to ON position. (Do not start engine.)
4. Check voltage between revolution sensor harness connector F38 terminal 1 (R/Y) and ground.
  Voltage: Battery voltage
OK or NG
1. OK: GO TO 4.
2. NG: Check the following items. If any items is damaged, repair or replace damaged parts.
  - Fuse
  - Harness for short or open between ignition switch and revolution sensor
  - Ignition switch
    Refer to "POWER DISTRIBUTION ".
DETECT MALFUNCTIONING ITEM
Check harness for short or open between TCM, ECM and revolution sensor.

OK or NG
1. OK: Repair or replace revolution sensor.
2. NG: Repair or replace damaged parts.
CHECK DTC
Perform "DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE ".

OK or NG
1. OK: INSPECTION END
2. NG: GO TO 6.
CHECK TCM INSPECTION
1. perform TCM input/output signal inspection. Refer to "TCM TERMINALS AND REFERENCE VALUE ".
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
1. OK: INSPECTION END
2. NG: Repair or replace damaged parts.
