Wiring Diagram - AT-BA/FTS

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For references to PG-POWER, see GROUND DISTRIBUTION & POWER DISTRIBUTION .

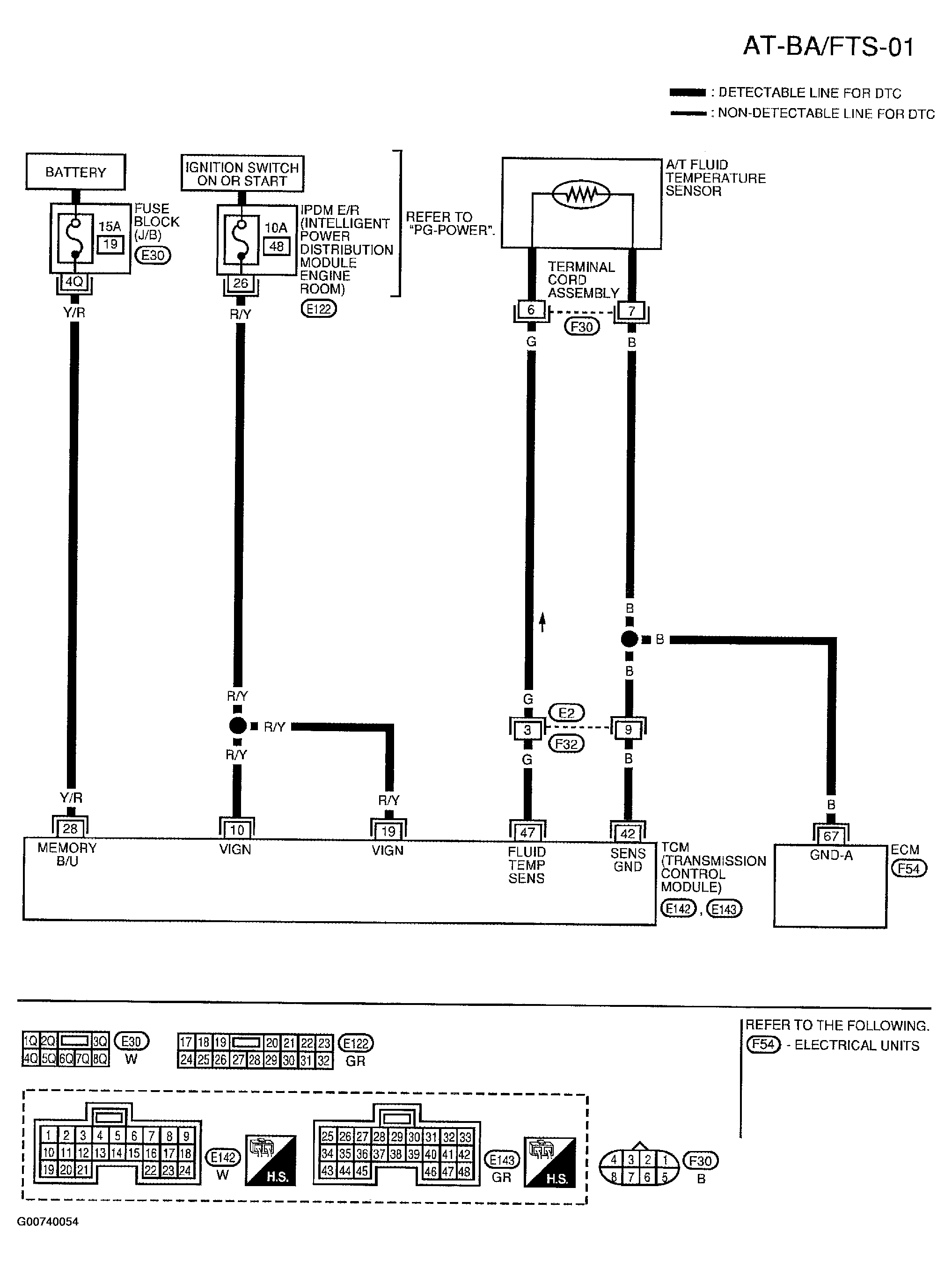

Fig 1: AT-BA/FTS-01 - Wiring Diagram
G00740054Courtesy of NISSAN MOTOR CO., U.S.A.

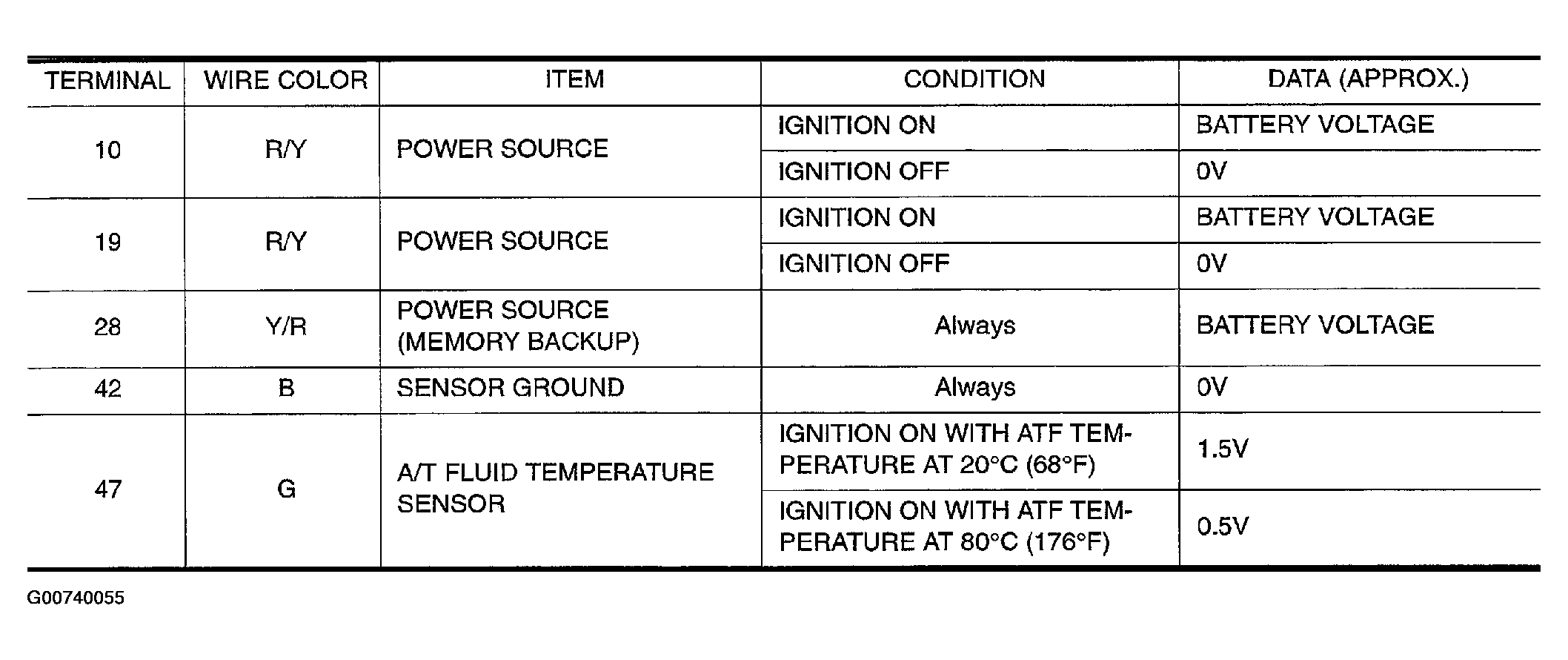

Fig 2: TCM Terminals And Reference Value Chart
G00740055Courtesy of NISSAN MOTOR CO., U.S.A.
