With Consult-II

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine.
  2. Select "DATA MONITOR" mode for "A/T" with CONSULT-II.

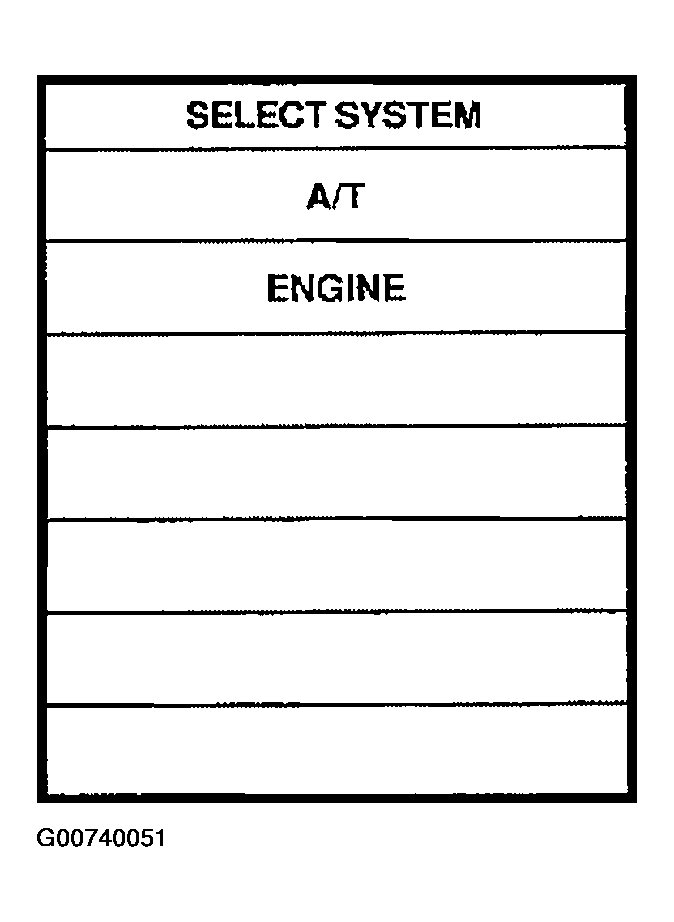

    Fig 1: CONSULT-II Display - SELECT SYSTEM
    G00740051Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Drive vehicle under the following conditions:

    Selector lever in D, vehicle speed higher than 20 km/h (12 MPH).

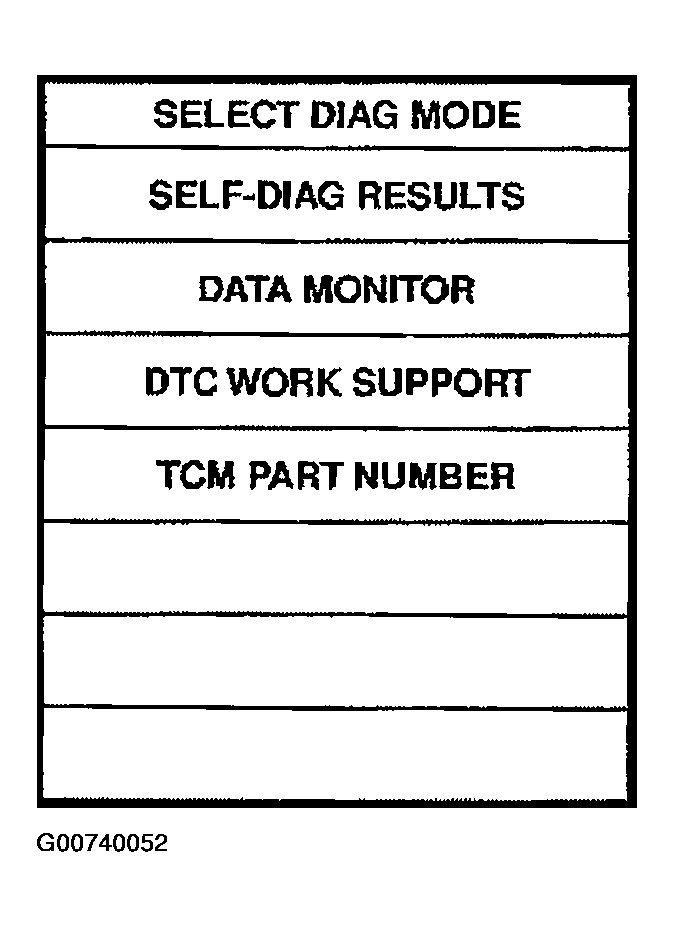

    Fig 2: CONSULT-II Display - SELECT DIAG MODE
    G00740052Courtesy of NISSAN MOTOR CO., U.S.A.
