Assembly (3)

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Install anchor end pin and lock nut on transaxle case.
Place brake band on outside or reverse clutch drum. Tighten anchor end pin just enough so that brake band is evenly fitted on reverse clutch drum.

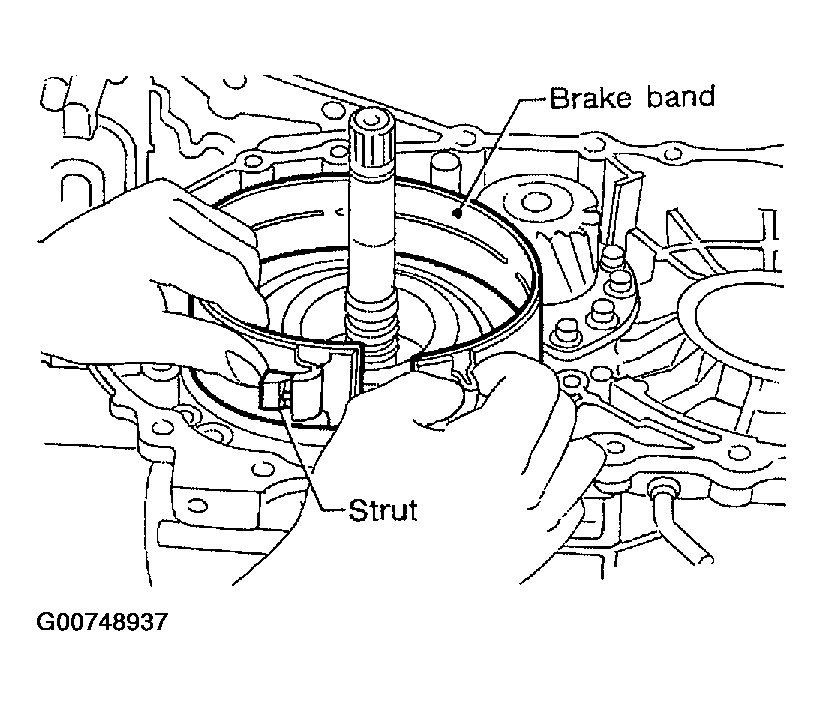

Fig 1: Placing Brake Band On Outside Or Reverse Clutch Drum
Courtesy of NISSAN MOTOR CO., U.S.A.

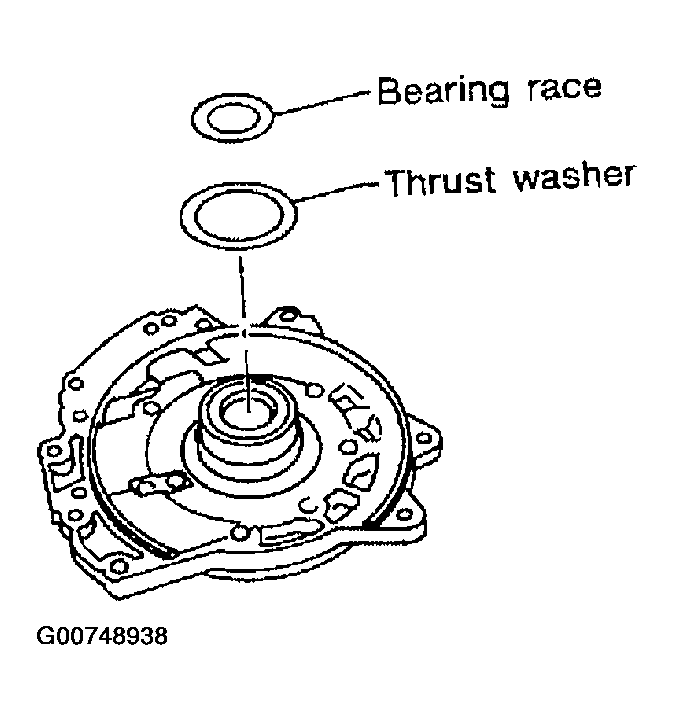

Place bearing race selected in total end play adjustment step on oil pump cover.
CAUTION: Apply petroleum jelly to bearing race.
Place thrust washer selected in reverse clutch end play step on reverse clutch drum.
CAUTION: Apply petroleum jelly to thrust washer.

Fig 2: Placing Thrust Washer In Reverse Clutch End Play
Courtesy of NISSAN MOTOR CO., U.S.A.

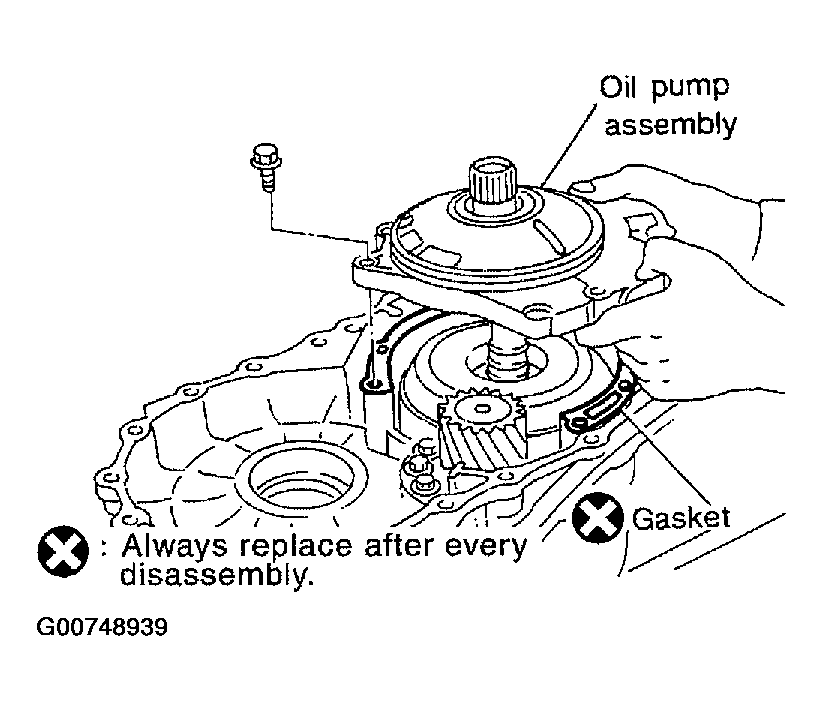

Install oil pump assembly and gasket on transaxle case.
CAUTION: Do not reuse gasket.
Tighten oil pump fixing bolts to the specified torque.

Fig 3: Tightening Oil Pump Fixing Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Install O-ring to input shaft.
CAUTION:
- Apply petroleum jelly to O-ring.
- Do not reuse O-ring.

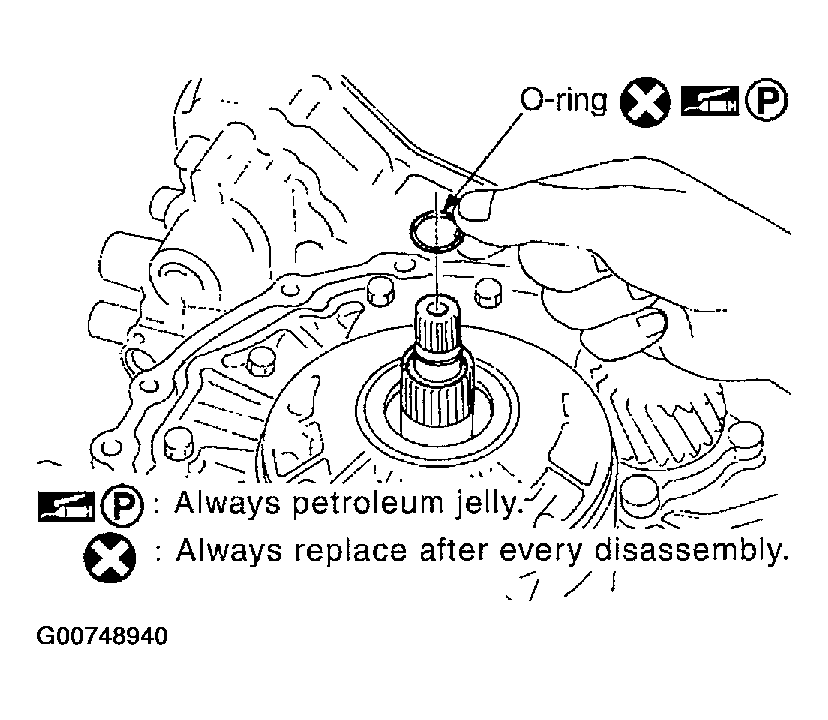

  Fig 4: Installing O-Ring To Input Shaft
  Courtesy of NISSAN MOTOR CO., U.S.A.
Adjust brake band.
1. Tighten anchor end pin to the specified torque.
  Anchor end pin: Refer to " BRAKE BAND " .
  - Do not reuse anchor end pin.

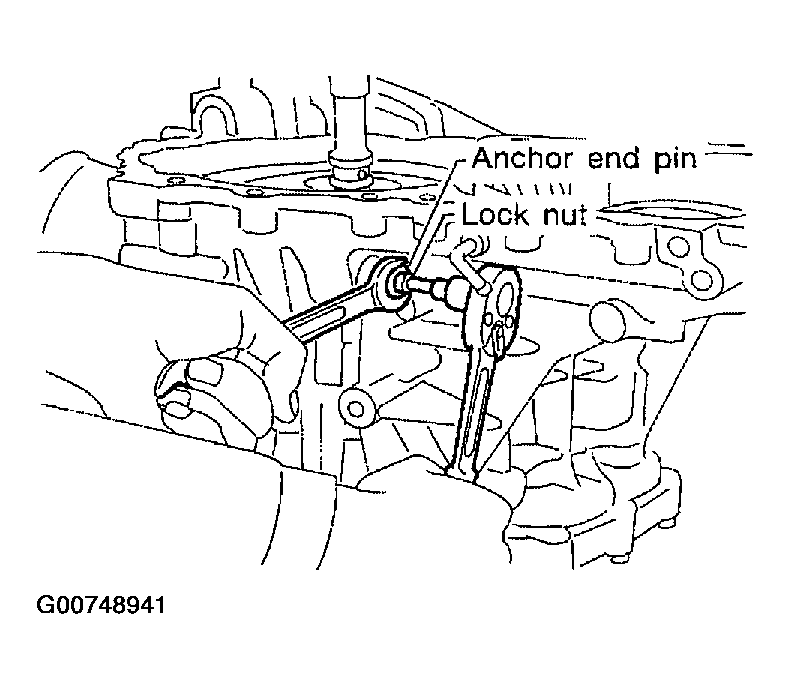

    Fig 5: Tightening Anchor End Pin
    Courtesy of NISSAN MOTOR CO., U.S.A.
2. Back off anchor end pin two and a half turns.
3. While holding anchor end pin, tighten lock nut.
  Lock nut: Refer to " BRAKE BAND " .
Apply compressed air to oil holes of transaxle case and check operation of brake band.

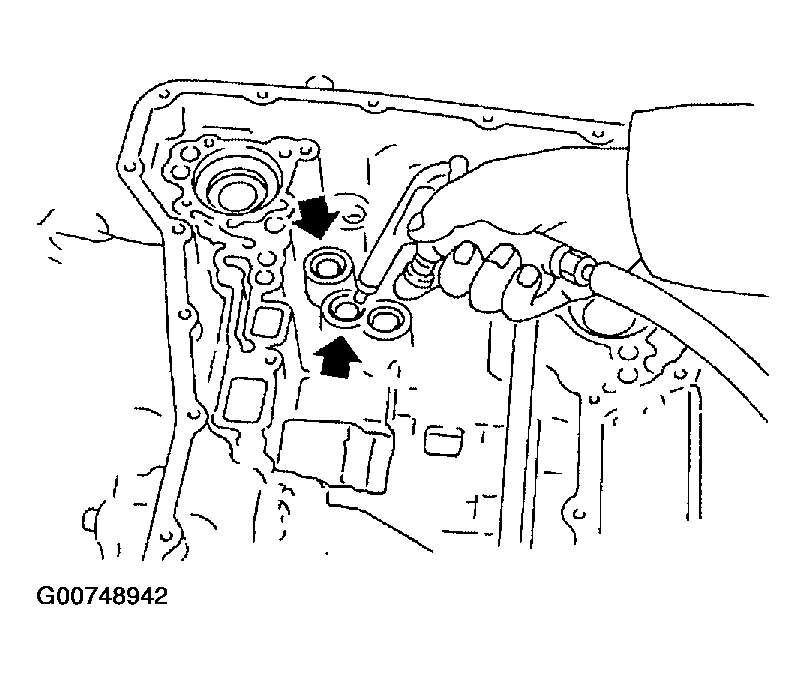

Fig 6: Applying Compressed Air To Oil Holes
Courtesy of NISSAN MOTOR CO., U.S.A.
Install final drive assembly on transaxle case.

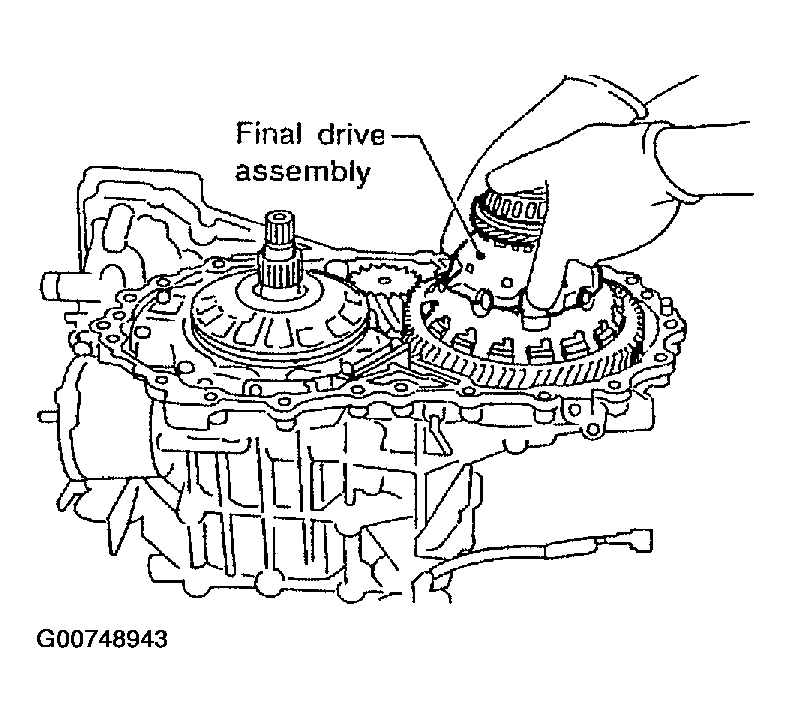

Fig 7: Installing Final Drive Assembly On Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Install differential lubricant tube on converter housing. Tighten differential lubricant tube bolts to the specified torque. Refer to "OVERHAUL ".

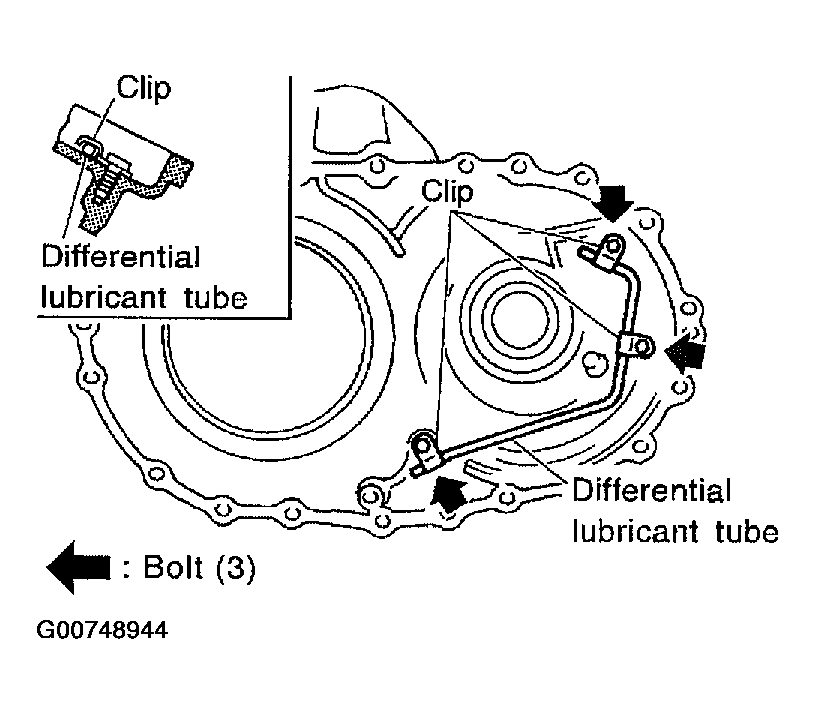

Fig 8: Installing Differential Lubricant Tube On Converter Housing
Courtesy of NISSAN MOTOR CO., U.S.A.

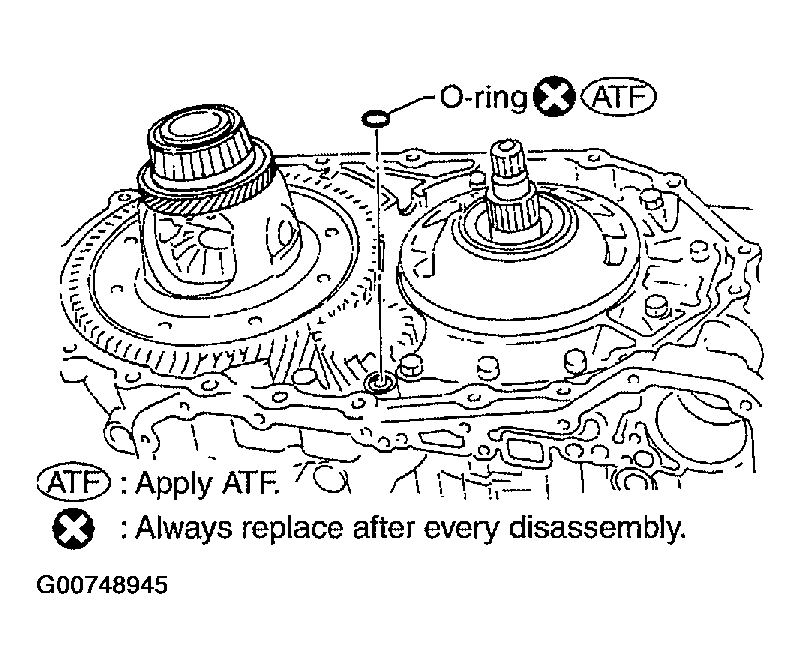

Install O-ring on differential oil port of transaxle case.
CAUTION:
- Apply ATF to O-ring.
- Do not reuse O-ring.

  Fig 9: Installing O-Ring On Differential Oil Port Of Transaxle Case
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install converter housing on transaxle case.

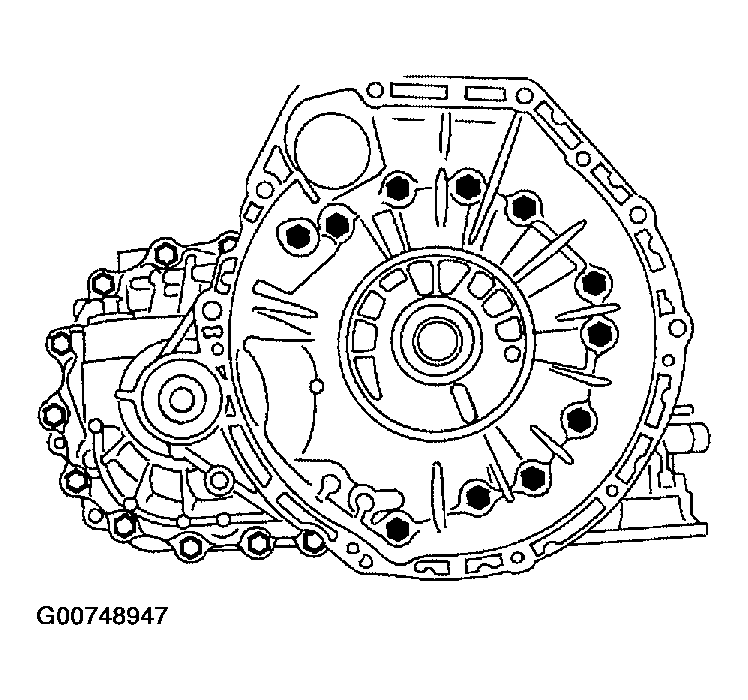

Fig 10: Installing Converter Housing On Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.

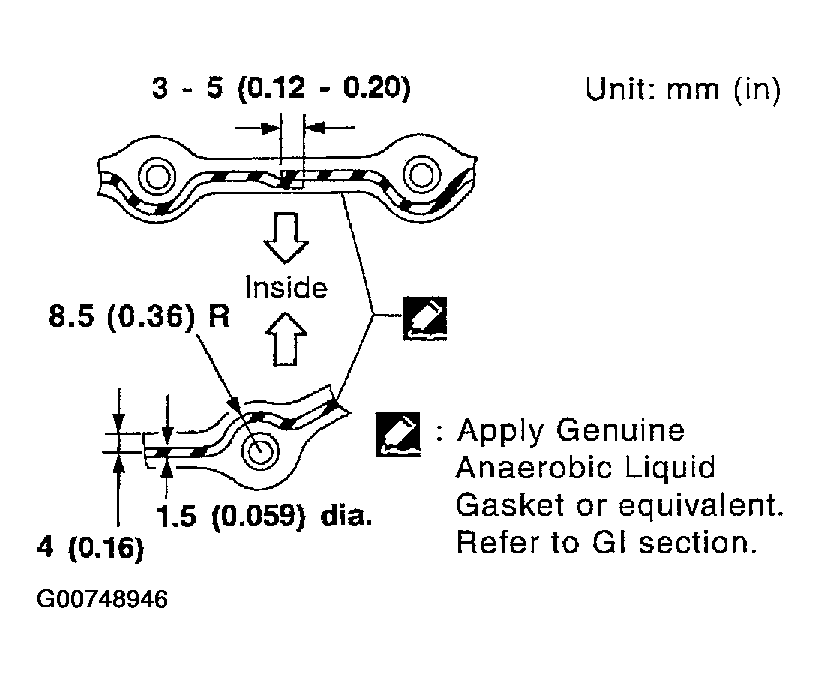

- Apply locking sealant to mating surface of converter housing.

  Fig 11: Applying Locking Sealant To Mating Surface Of Converter Housing
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Tighten converter housing bolts to the specified torque. Refer to " OVERHAUL ".
Install accumulator piston.
1. Check contract surface of accumulator piston for damage.

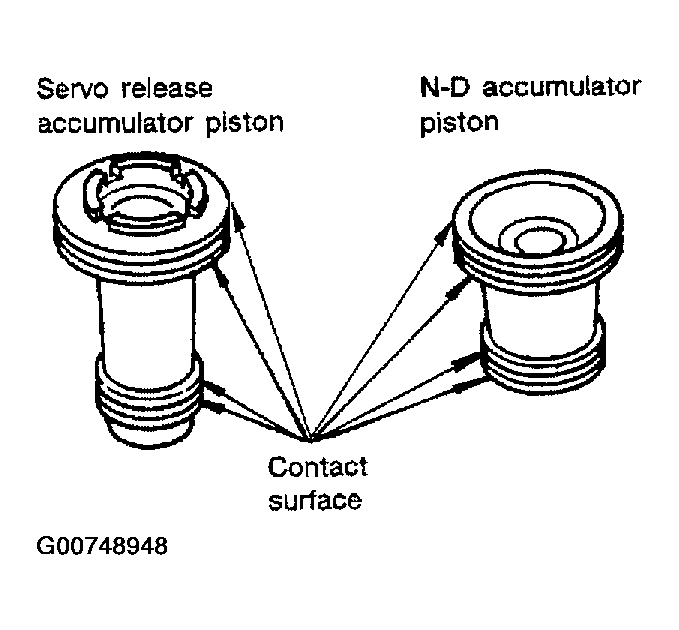

  Fig 12: Checking Contract Surface Of Accumulator Piston
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install O-rings on accumulator piston.

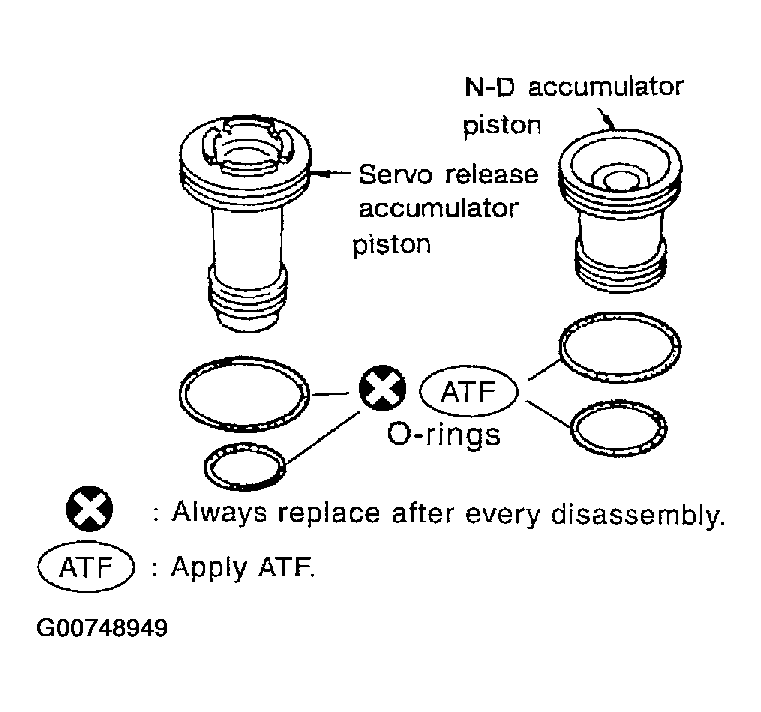

  Fig 13: Identifying O-Rings On Accumulator Piston
  Courtesy of NISSAN MOTOR CO., U.S.A.
  CAUTION:
  - Do not reuse O-rings.
  - Apply ATF to O-rings.
    Accumulator piston O-rings: Refer to "O-RING "
3. Install accumulator pistons and return springs on transaxle case.
  CAUTION: Apply ATF to inner surface transaxle case.
  Return springs: Refer to "RETURN SPRING ".

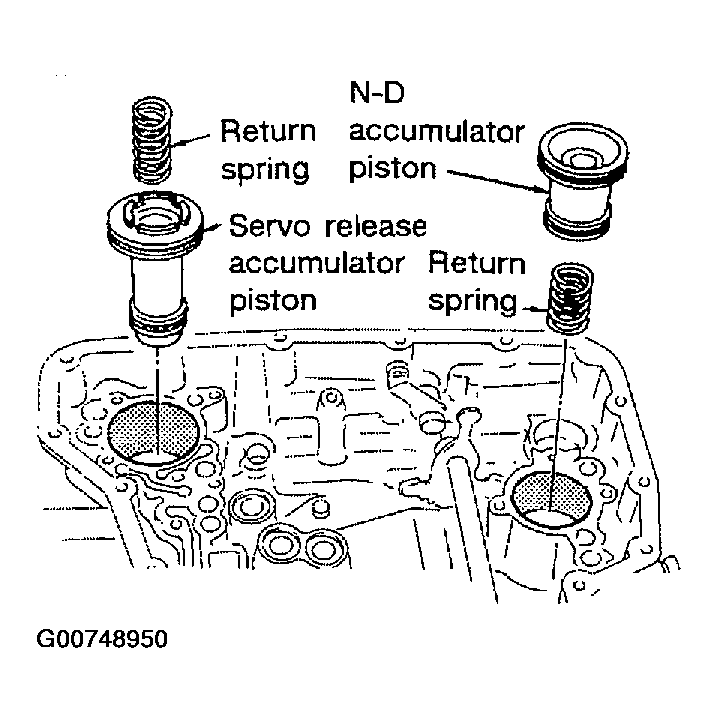

  Fig 14: Installing Accumulator Pistons And Return Springs On Transaxle Case
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install lip seals for band servo oil holes on transaxle case.
CAUTION:
- Do not reuse lip seals.
- Apply petroleum jelly to lip seals.

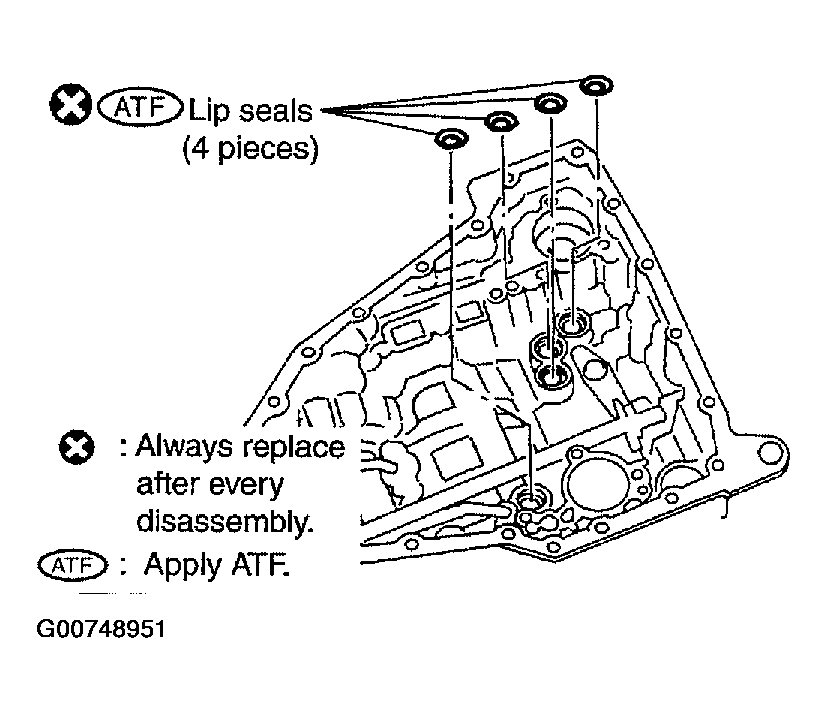

  Fig 15: Installing Lip Seals For Band Servo Oil Holes
  Courtesy of NISSAN MOTOR CO., U.S.A.

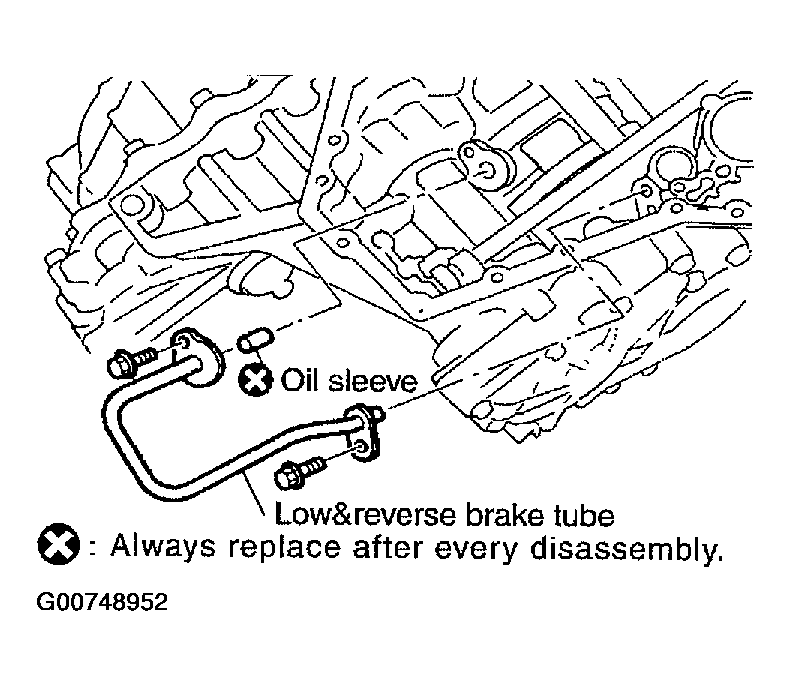

Install low & reverse brake tube and oil sleeve. Tighten low & reverse brake tube bolts to the specified torque. Refer to "OVERHAUL ".

Fig 16: Installing Low & Reverse Brake Tube And Oil Sleeve
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Do not reuse oil sleeve.
Install control valve assembly.

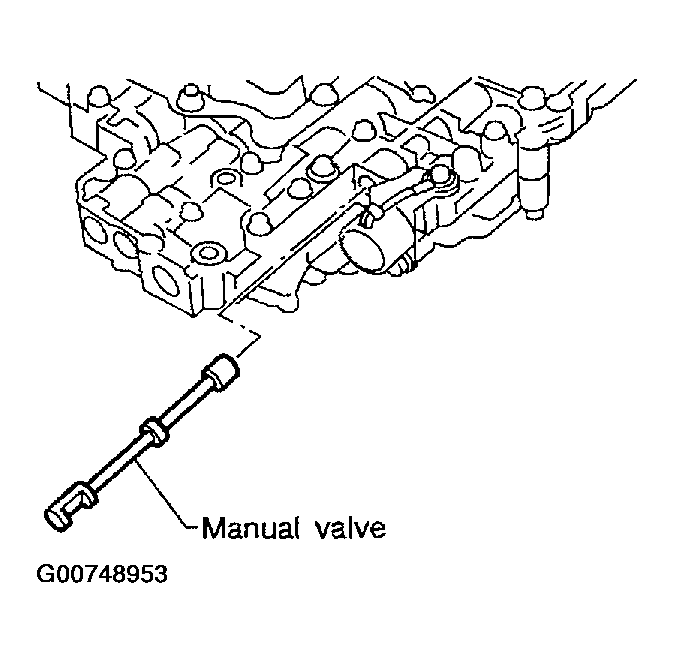

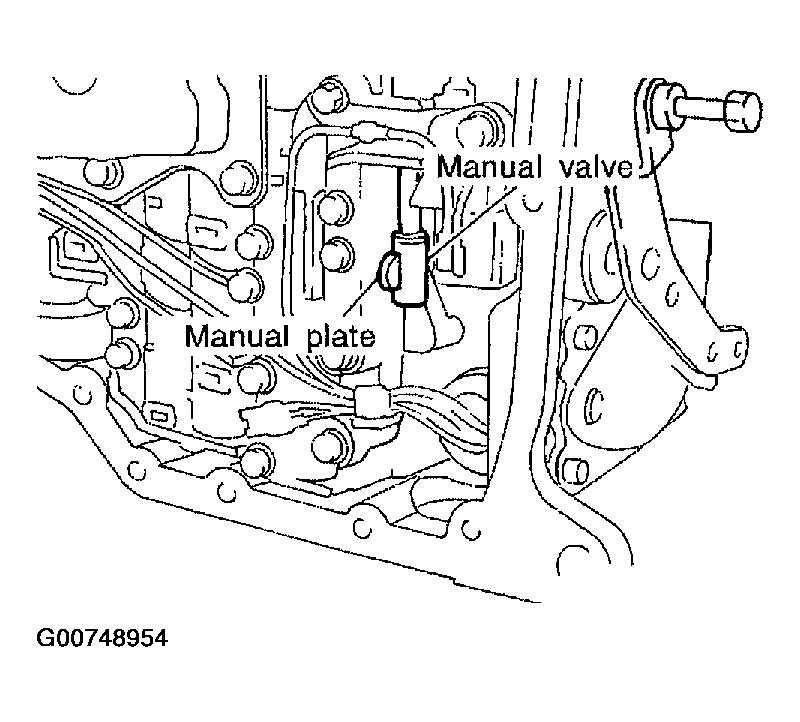

1. Insert manual valve into control valve assembly.
  CAUTION: Apply ATF to manual valve.

  Fig 17: Inserting Manual Valve Into Control Valve Assembly
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Set manual shaft in Neutral position.
3. Install control valve assembly on transaxle case while aligning manual valve with manual plate.
4. Pass solenoid harness through transaxle case and install terminal body on transaxle case by pushing it.
5. Install stopper ring to terminal body.

  Fig 18: Installing Stopper Ring To Terminal Body
  Courtesy of NISSAN MOTOR CO., U.S.A.
6. Tighten bolts I, X and - Refer to "OVERHAUL ".

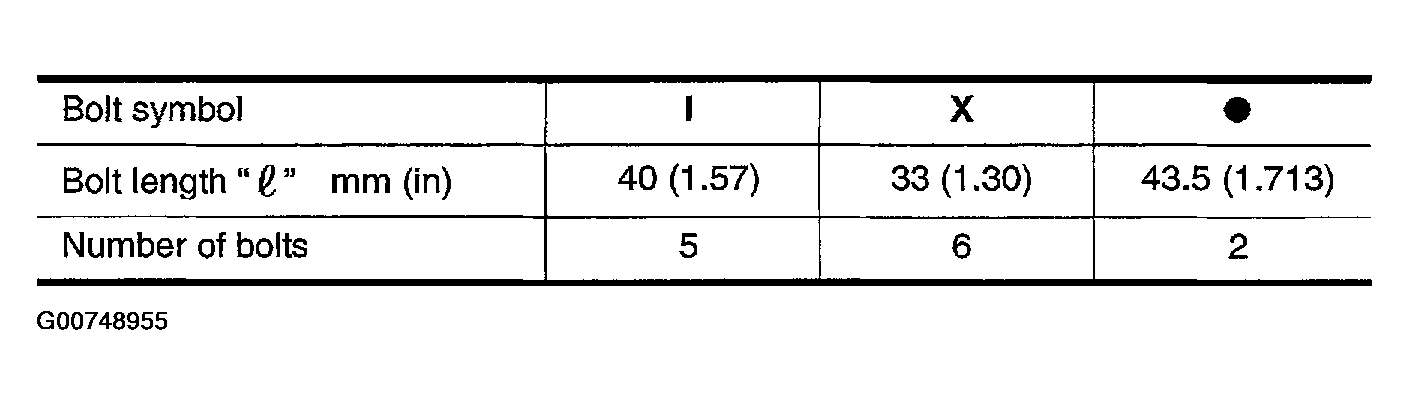

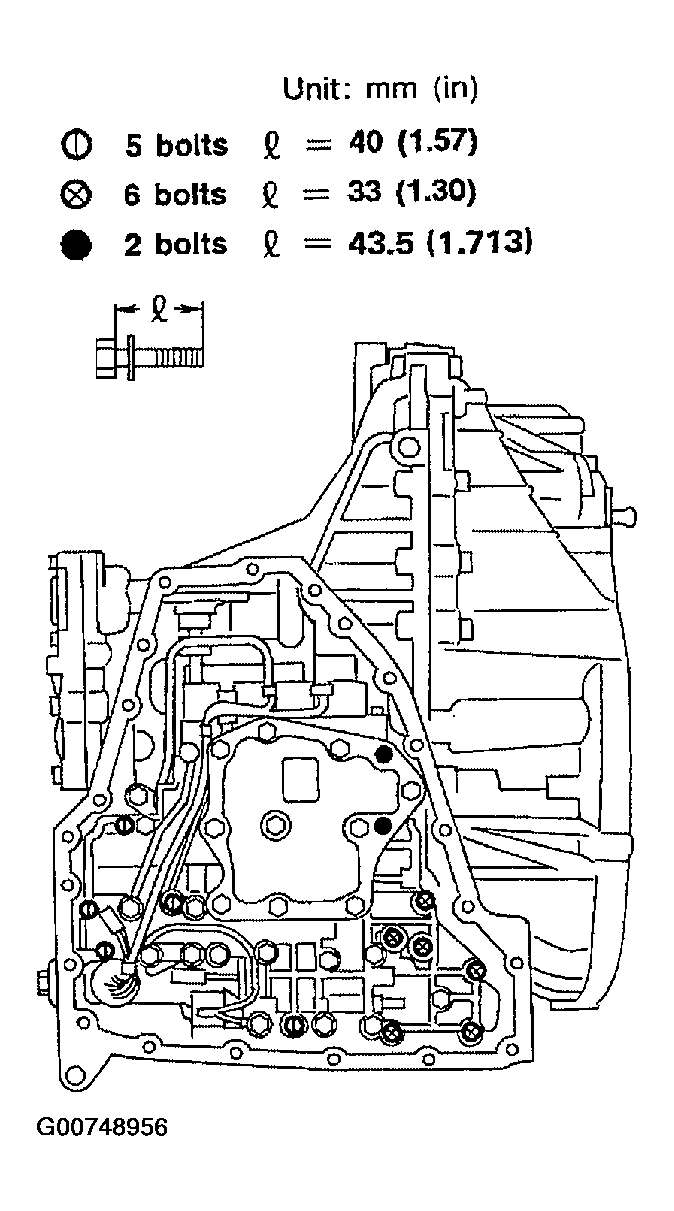

  Bolt length, number and location:

  Fig 19: Tightening Bolts
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 20: Bolts Specification
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil pen.

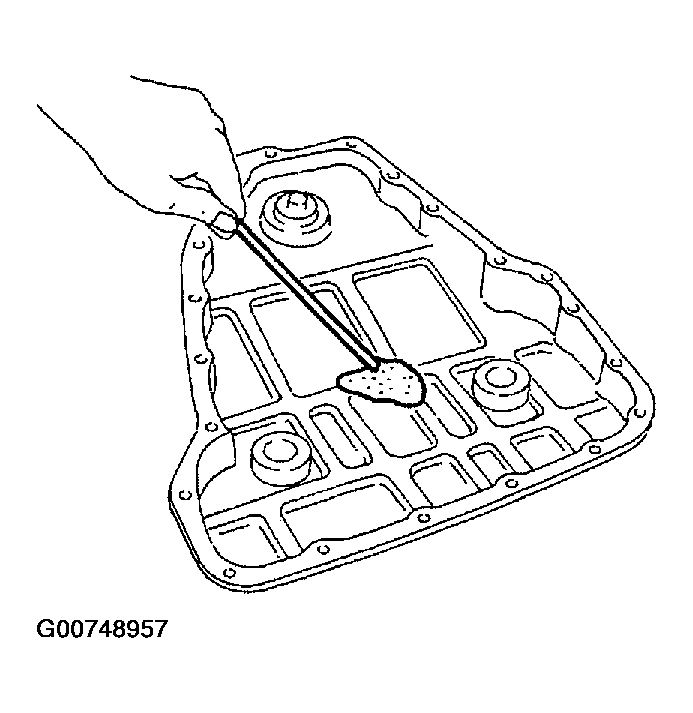

1. Attach a magnet to oil pan.
2. Install new oil pan gasket on transaxle case.
3. Install oil pan on transaxle case.

  Fig 21: Installing Oil Pan On Transaxle Case
  Courtesy of NISSAN MOTOR CO., U.S.A.
  CAUTION:
  - Always replace oil pan bolts as they are self-sealing bolts.
  - Tighten four bolts in a crisscross pattern to prevent dislocation of gasket.
4. Tighten oil pan bolts and drain plug to the specified torque. Refer to "OVERHAUL ".

  Fig 22: Tightening Oil Pan Bolts
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install park/neutral position (PNP) switch.
1. Set manual shaft in P position.
2. Temporarily install park/neutral position (PNP) switch on manual shaft.
3. Move selector lever to N position.

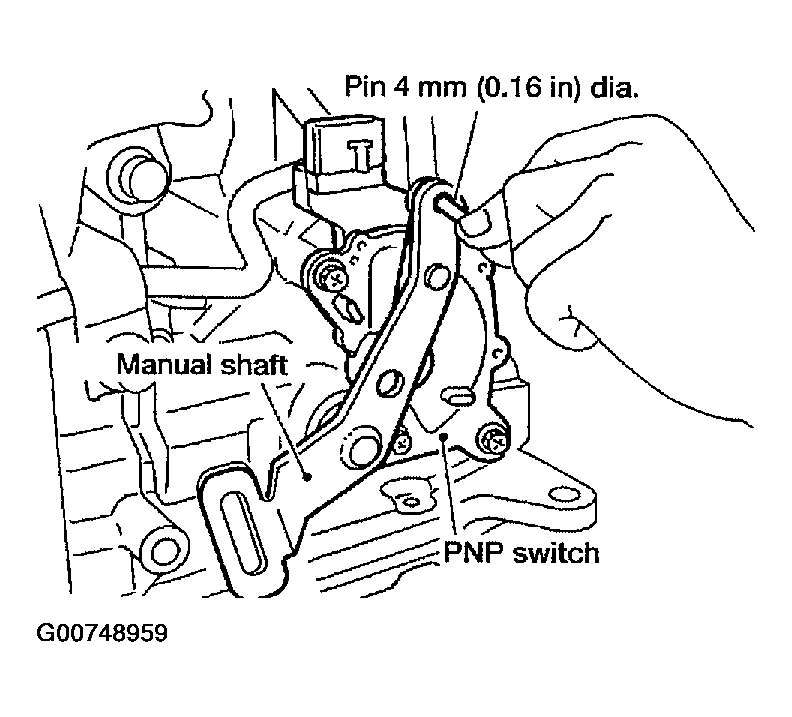

4. Use a 4 mm (0.16 in) pin for this adjustment.
  1. Insert the pin straight into the manual shaft adjustment hole.
  2. Rotate park/neutral position (PNP) switch until the pin can also be inserted straight into hole in park/neutral position (PNP) switch.

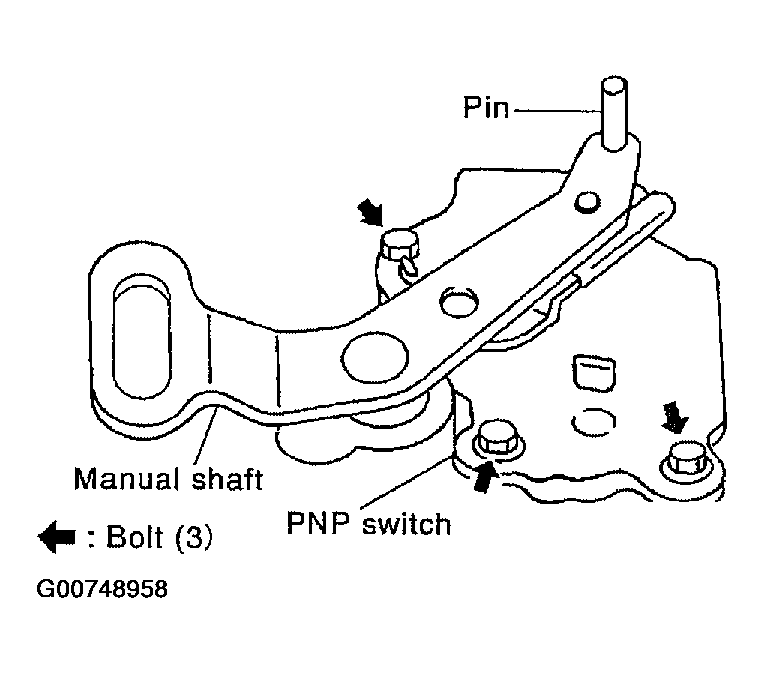

    Fig 23: Inserting Pin Straight Into Manual Shaft Adjustment Hole
    Courtesy of NISSAN MOTOR CO., U.S.A.
5. Tighten park/neutral position (PNP) switch fixing bolts. Refer to "OVERHAUL ".
6. Remove pin from adjustment hole after adjusting park/neutral position (PNP) switch.
Install A/T fluid charging pipe and fluid cooler tube to transaxle case. Tighten A/T fluid charging pipe and fluid cooler tube bolts to the specified torque. Refer to "OVERHAUL ".

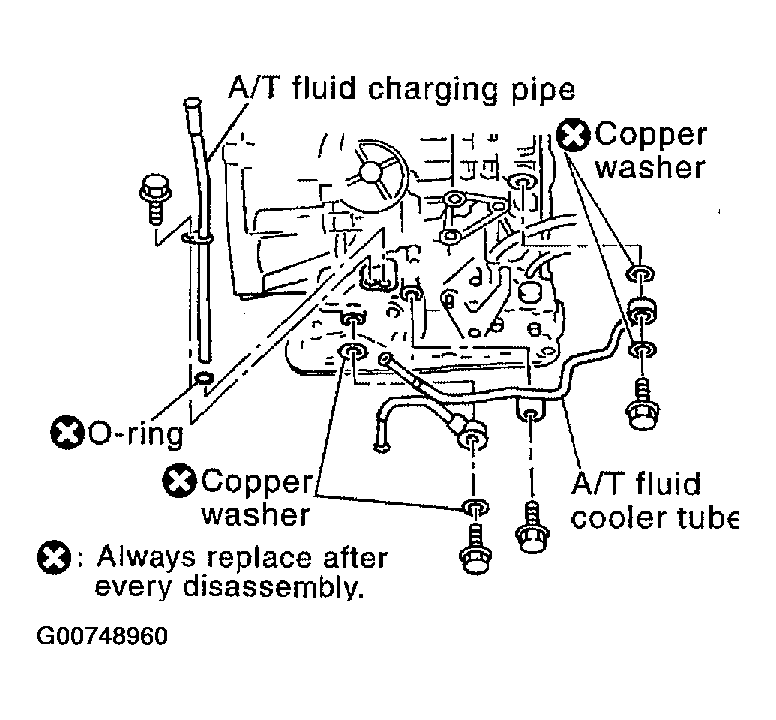

Fig 24: Tightening A/T Fluid Charging Pipe And Fluid Cooler Tube Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Do not reuse O-ring and cooper washer.
Install A/T fluid level gauge.
Install torque converter.

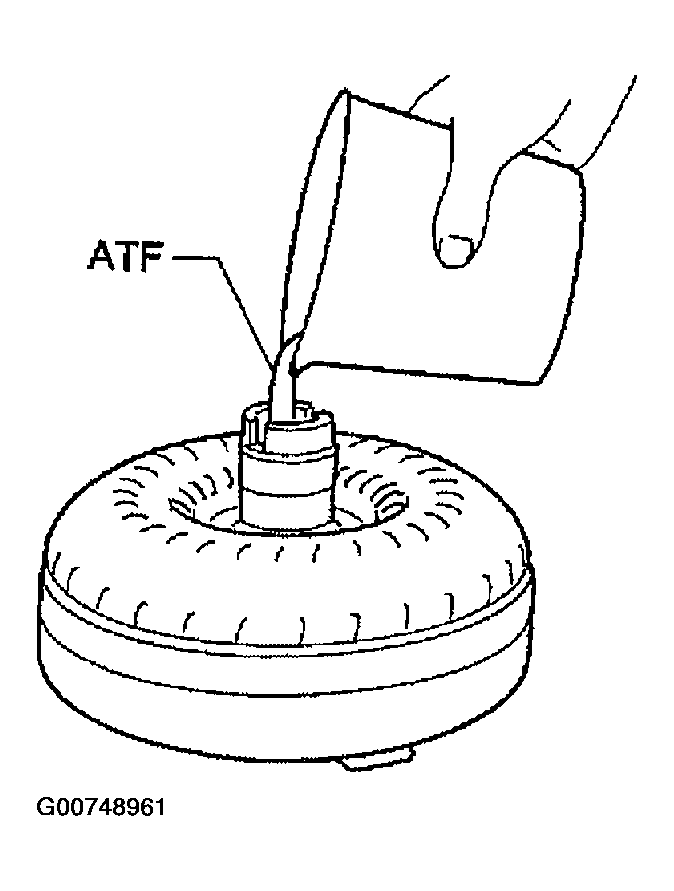

Pour ATF into torque converter.
CAUTION:
- Approximately 1 liter (1-1/8 US qt, 7/8 lmp qt) of fluid is required for a new torque converter.
- When reusing old torque converter, add the same amount of fluid as was drained.

  Fig 25: Installing Torque Converter
  Courtesy of NISSAN MOTOR CO., U.S.A.

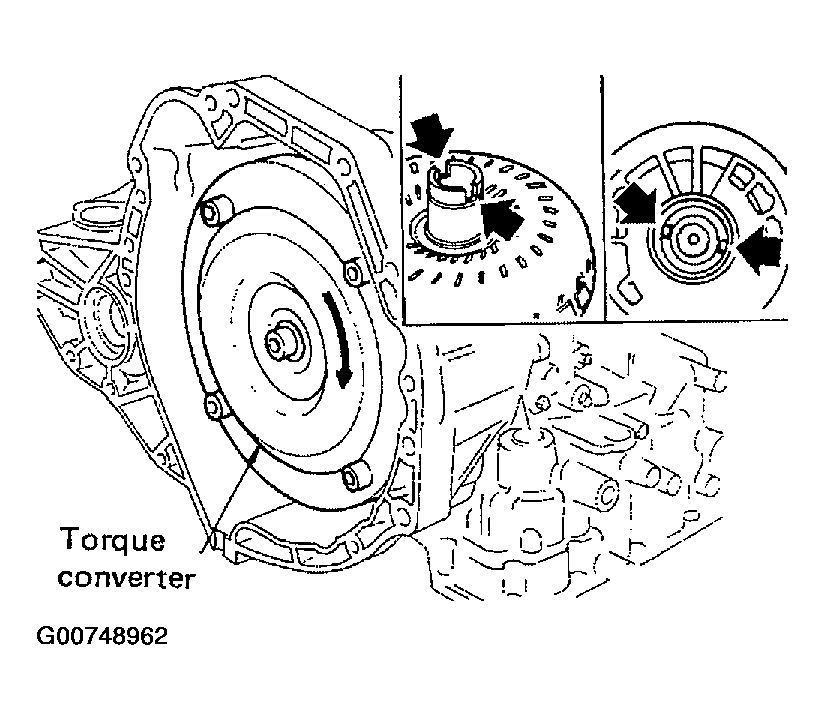

Install torque converter while aligning notches of torque converter with notches of oil pump.

Fig 26: Installing Torque Converter While Aligning Notches With Notches Of Oil Pump
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure distance "A" to check that torque converter is in proper position.
Distance A: 14 mm (0.55 in) or more

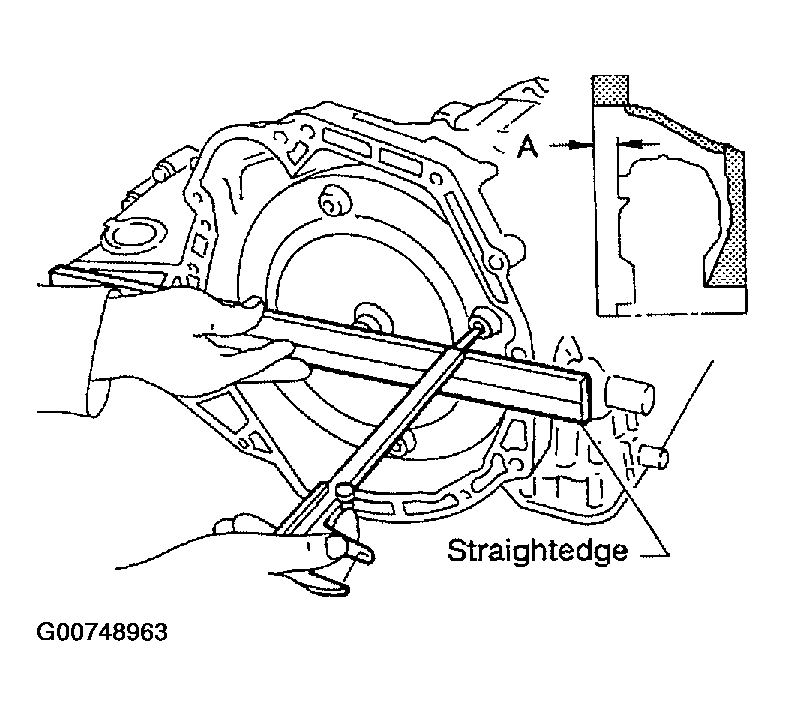

Fig 27: Checking Torque Converter Is In Proper Position
Courtesy of NISSAN MOTOR CO., U.S.A.
