Assembly (1)

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Install differential side oil seals on transaxle case and converter housing.

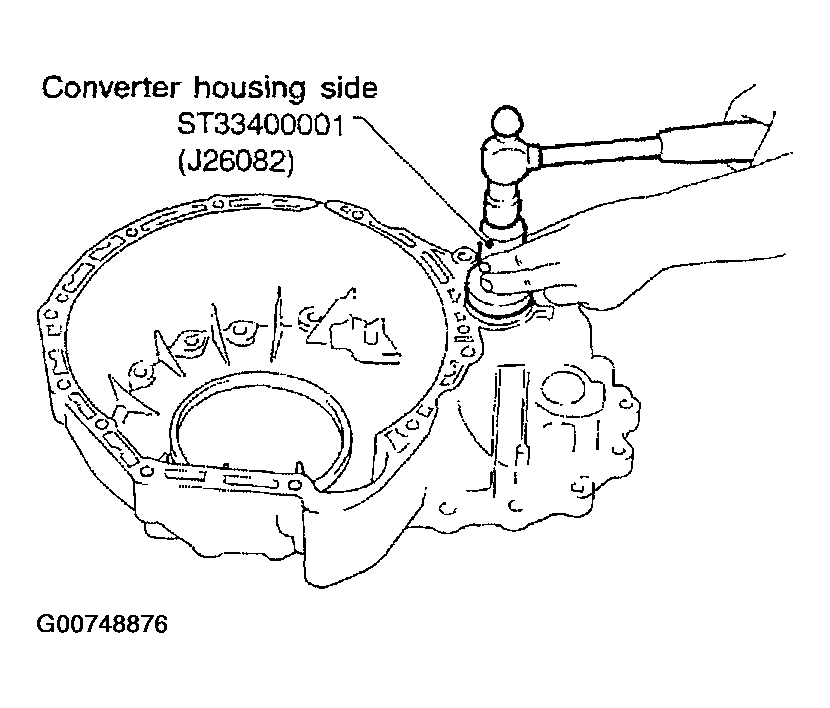

Fig 1: Installing Differential Side Oil Seals
Courtesy of NISSAN MOTOR CO., U.S.A.

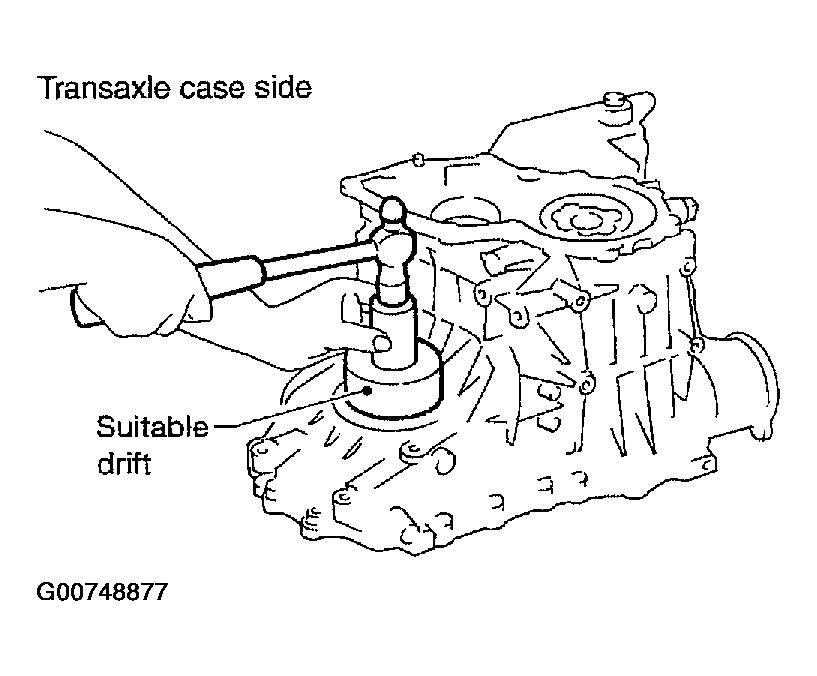

Fig 2: Installing Oil Seal
Courtesy of NISSAN MOTOR CO., U.S.A.
Install parking actuator support to transaxle case. Tighten parking actuator support bolts to the specified torque. Refer to "OVERHAUL ".
CAUTION: Pay attention to direction of parking actuator support.

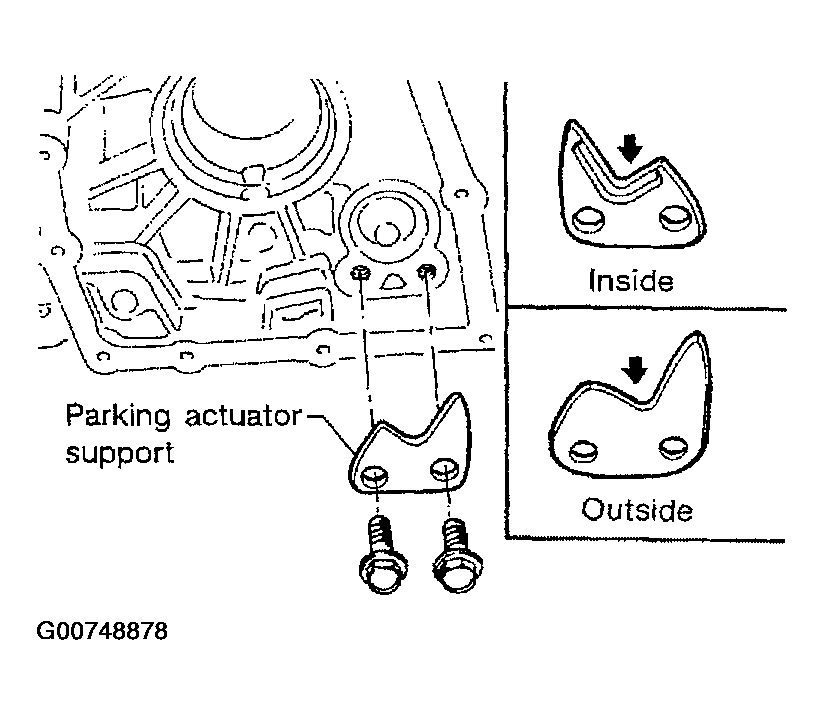

Fig 3: Installing Parking Actuator
Courtesy of NISSAN MOTOR CO., U.S.A.
Install parking pawl on transaxle case and fix it with parking shaft.
Install return spring.

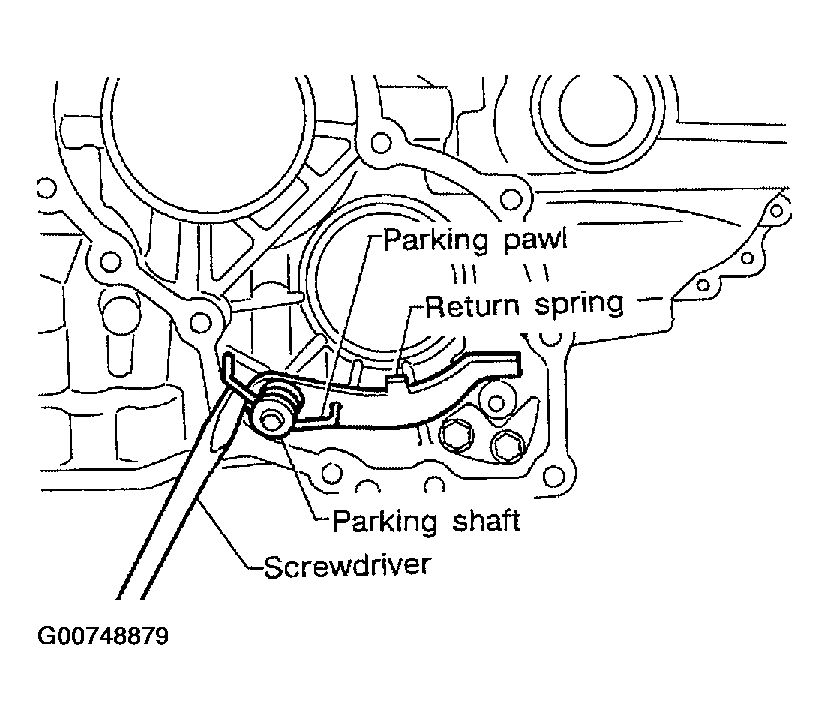

Fig 4: Installing Parking Pawl
Courtesy of NISSAN MOTOR CO., U.S.A.
