Adjustment (2): Notes

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

When any parts listed below are replaced, adjust total end play and reverse clutch end play.

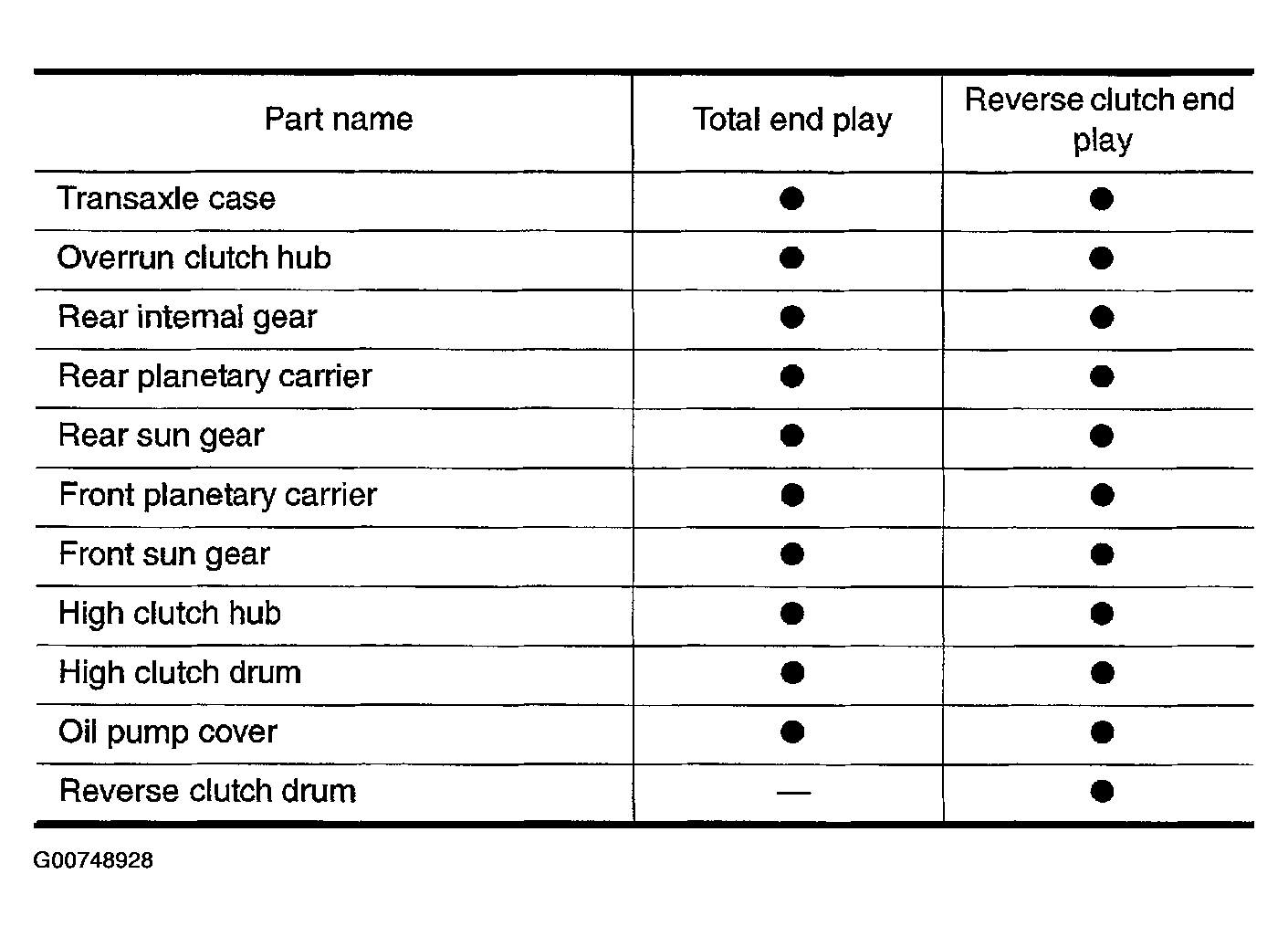

Fig 1: Total End Play And Reverse Clutch End Play Chart
G00748928Courtesy of NISSAN MOTOR CO., U.S.A.
