Differential Side Bearing Preload

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install differential side bearing outer race without adjusting shim on transaxle case.

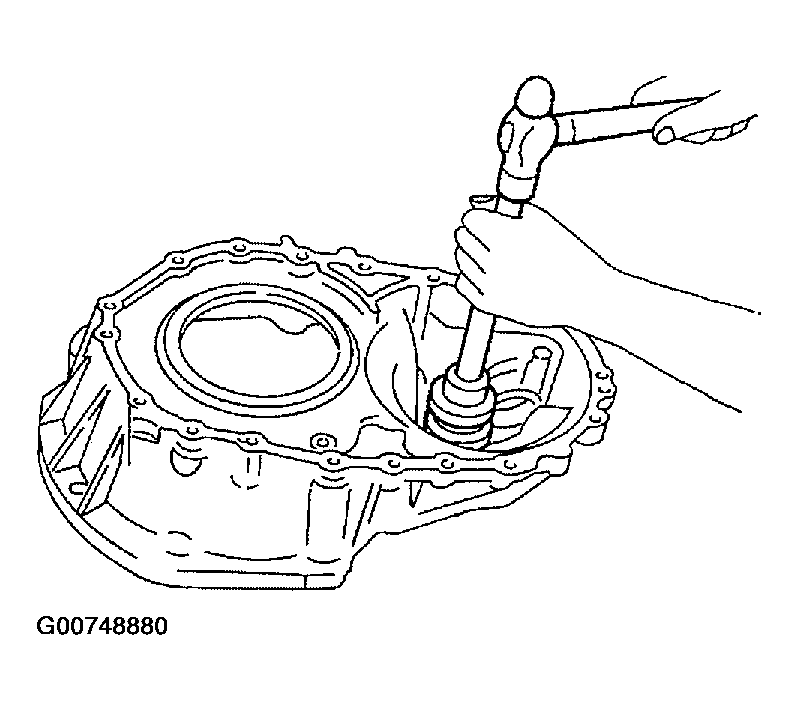

    Fig 1: Installing Bearing Race
    G00748880Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install differential side bearing outer race on converter housing.
  3. Place final drive assembly on transaxle case.
  4. Install transaxle case on converter housing. Tighten transaxle case fixing bolts to the specified torque. Refer to "OVERHAUL ".

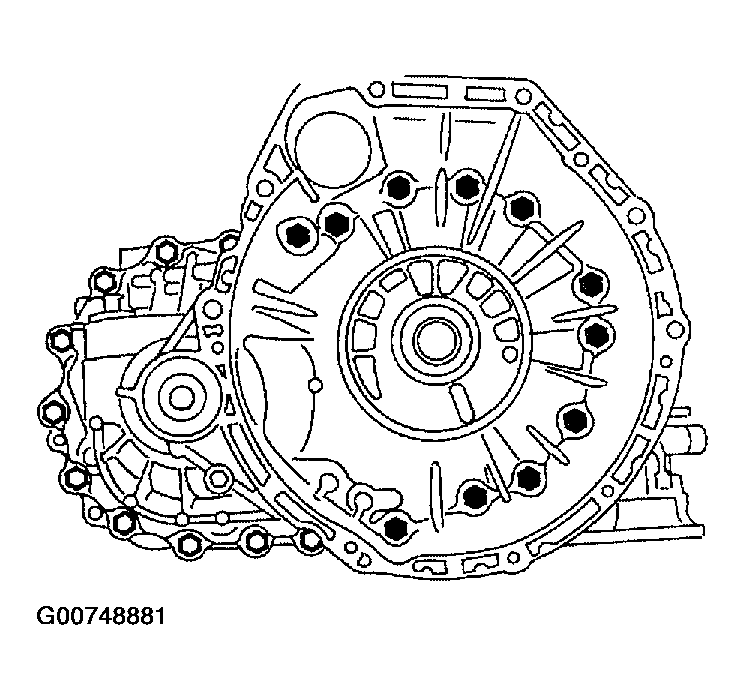

    Fig 2: Tightening Bolts
    G00748881Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Attach dial indicator on differential case at converter housing side.

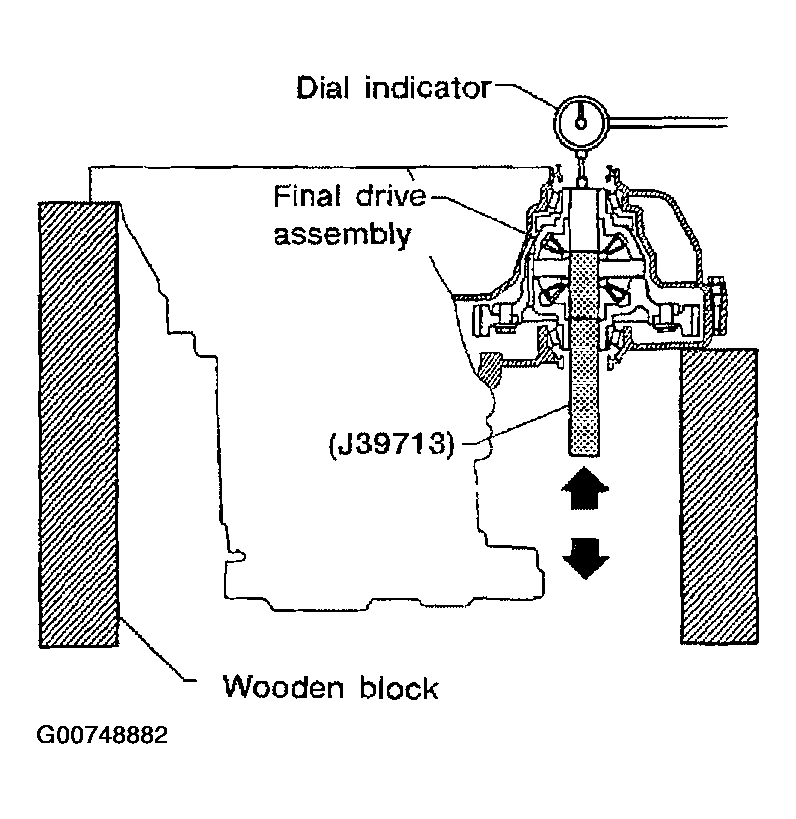

    Fig 3: Installing Dial Indicator
    G00748882Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Insert Tool into differential side gear from transaxle case side.
  7. Move Tool up and down and measure dial indicator deflection.
  8. Select proper thickness of differential side bearing adjusting shim(s).

    Suitable shim thickness = Dial indicator deflection + Specified bearing preload

    Differential side bearing preload adjusting shim: Refer to " DIFFERENTIAL SIDE BEARING PRELOAD ADJUSTING SHIMS  "  .

    Bearing preload: 0.05 - 0.09 mm (0.0020 - 0.0035 in)

  9. Remove converter housing from transaxle case.
  10. Remove final drive assembly from transaxle case.

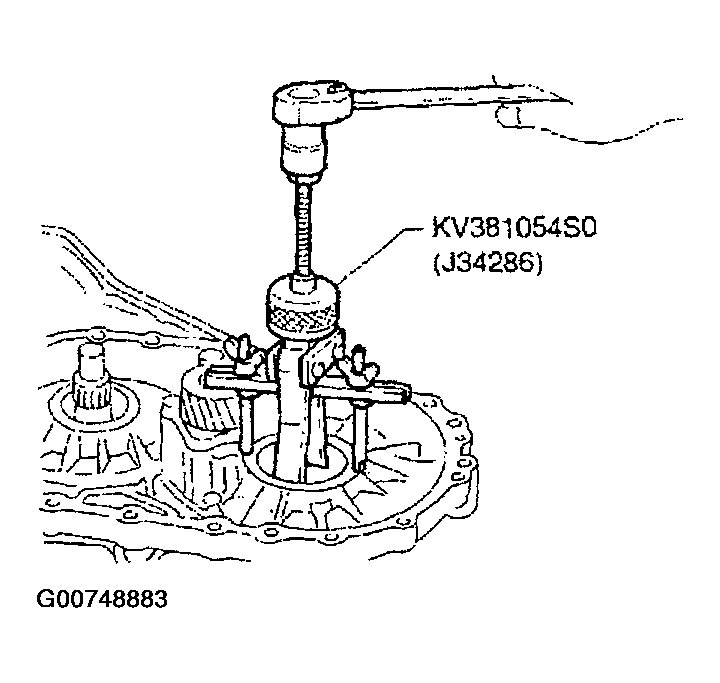

    Fig 4: Removing Bearing
    G00748883Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Remove differential side bearing outer race from transaxle case.
  12. Reinstall differential side bearing outer race and shim(s) selected from SDS table on transaxle case.
  13. Reinstall converter housing on transaxle case and tighten transaxle case fixing bolts to the specified torque. Refer to "OVERHAUL ".
  14. Insert Tool and measure turning torque of final drive assembly.

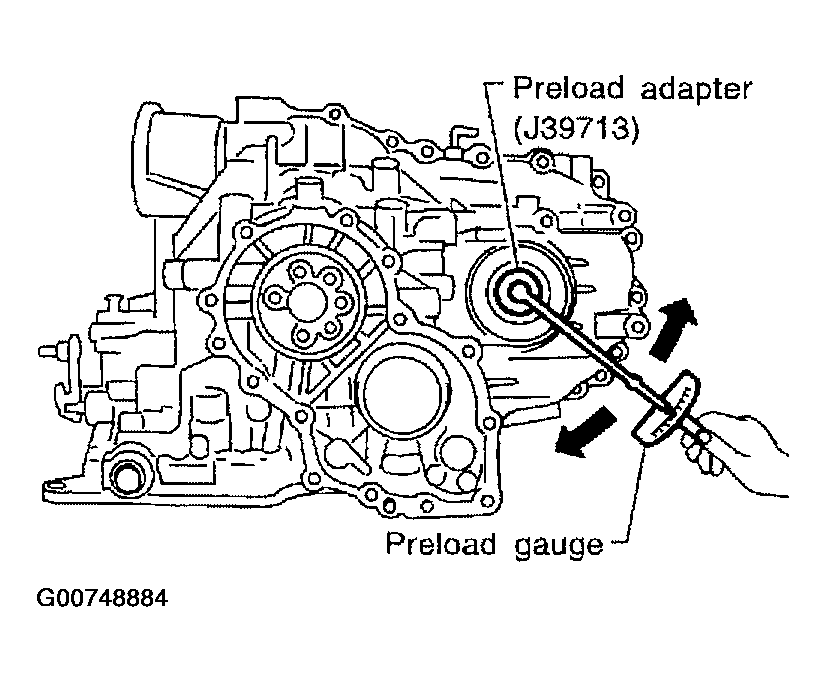

    Fig 5: Measuring Turning Torque Of Final Drive Assembly
    G00748884Courtesy of NISSAN MOTOR CO., U.S.A.
    • Turn final drive assembly in both directions several times to seat bearing rollers correctly.

      Turning torque of final drive assembly (New bearing): 0.8 - 1.5 N-m (8.0 - 15.7 kg-cm, 7 - 13 in-lb)

    • When old bearing is used again, turning torque will be slightly less than the above.
    • Make sure torque is close to the specified range.

      Preload adapter: - (J39713)
