With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Check air passage continuity of EVAP canister purge volume control solenoid valve using "PURG VOL CONT/V" in "ACTIVE TEST" mode with CONSULT-II under the following conditions.

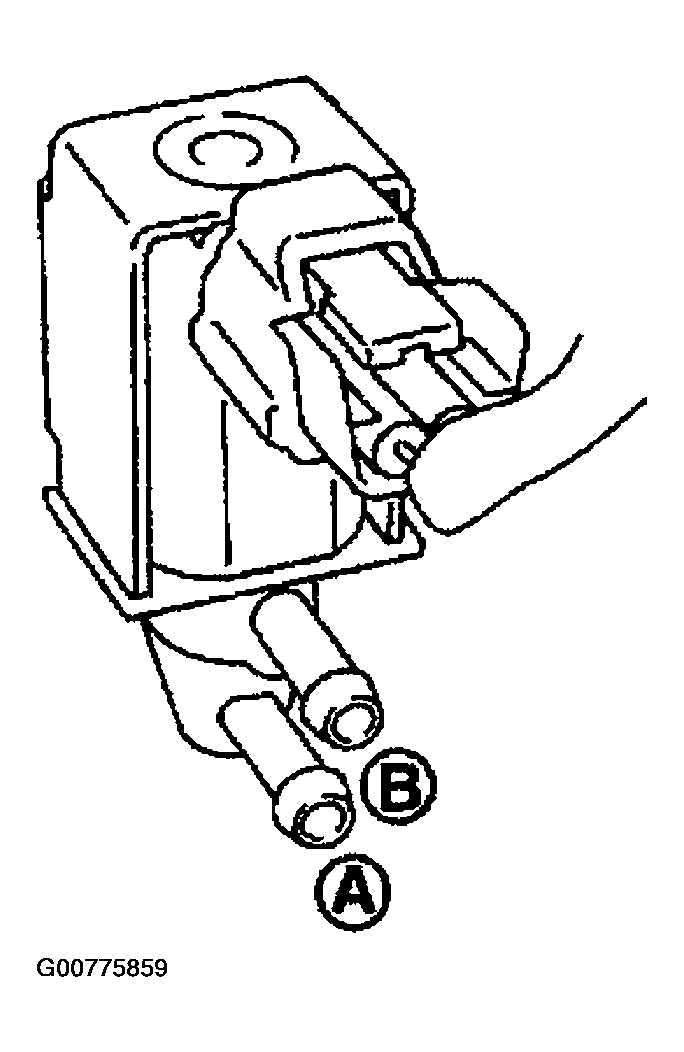

Fig 1: Checking Air Passage Continuity Of EVAP Canister

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Conditions Of EVAP Canister

Courtesy of NISSAN MOTOR CO., U.S.A.
