Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain coolant.
    CAUTION: Perform when engine is cool.
  2. Remove IPDM E/R bolts and position aside. Refer to REMOVAL AND INSTALLATION OF IPDM E/R .
  3. Disconnect lower radiator hose.
  4. Disconnect oil cooler line.
  5. Remove engine coolant inlet and thermostat assembly.
    • Do not disassemble engine coolant inlet and thermostat assembly. Replace them as a unit, if necessary.

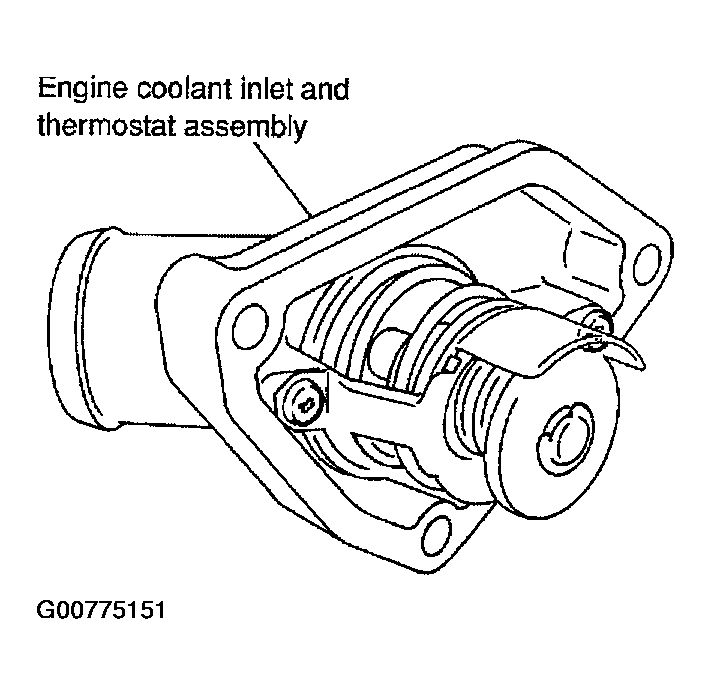

      Fig 1: Removing Engine Coolant Inlet And Thermostat Assembly
      G00775151Courtesy of NISSAN MOTOR CO., U.S.A.
