Liquid Gasket Application Procedure

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a scraper, remove the old sealant adhering to the mating surface.
    • Remove the sealant completely from the groove, mounting bolts, and bolt holes.
  2. Thoroughly clean the mating surface removing any adhering moisture, grease and foreign material.

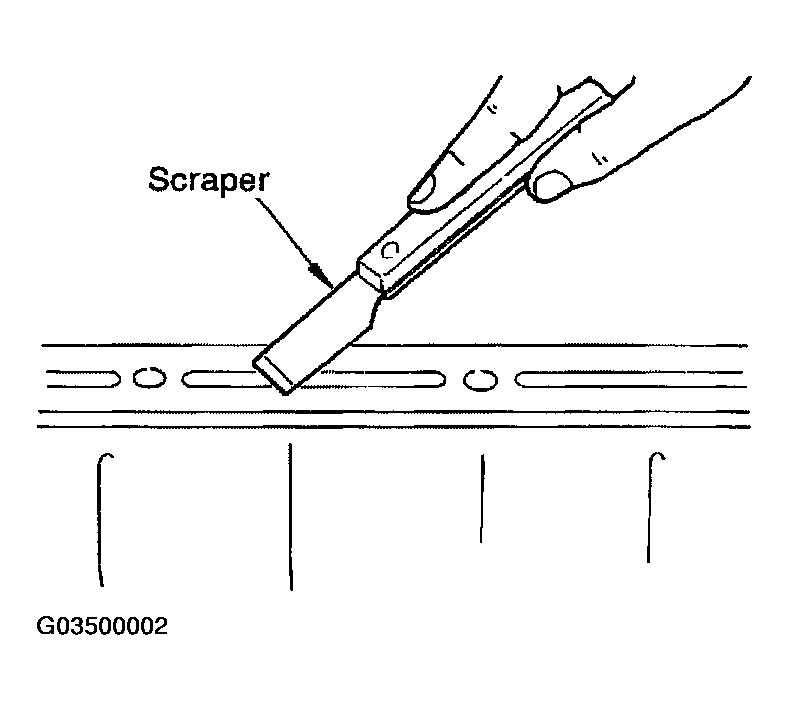

    Fig 1: Identifying Scraper
    G03500002Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Attach the sealant tube to the Tool.
    1. Tool number: WS39930000 ( - )
  4. Apply the sealant without breaks to the specified location with the specified dimensions using Tool.
    • If there is a groove for the sealant application, apply the sealant to the groove.

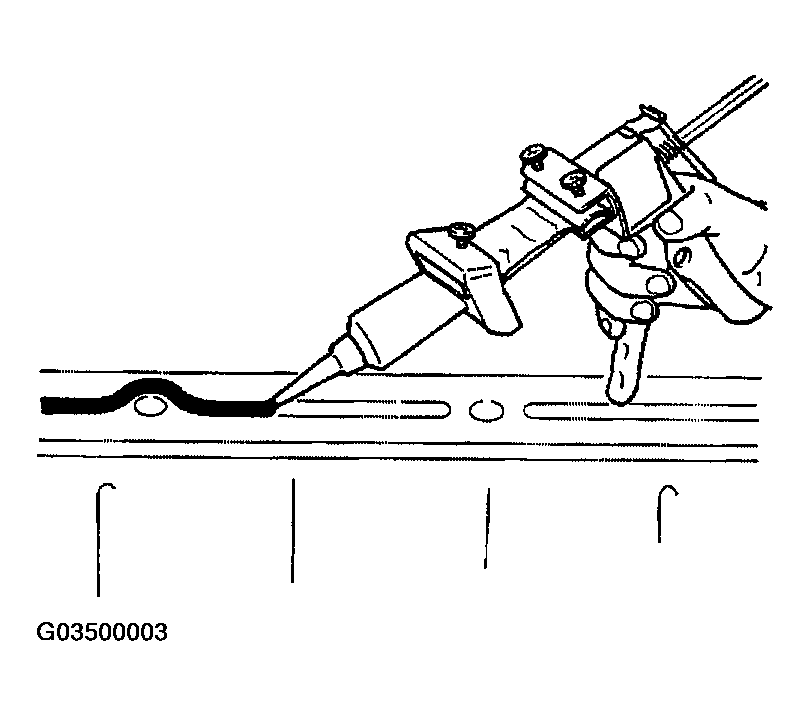

      Fig 2: Applying Sealant
      G03500003Courtesy of NISSAN MOTOR CO., U.S.A.
    • As for the bolt holes, normally apply the sealant inside the holes. Occasionally, it should be applied outside the holes. Make sure to read the text of service manual.
    • Within five minutes of sealant application, install the mating component.
    • If the sealant protrudes, wipe it off immediately.
    • Do not retighten after the installation.
    • After 30 minutes or more have passed from the installation, fill the engine with the proper oil and coolant. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .

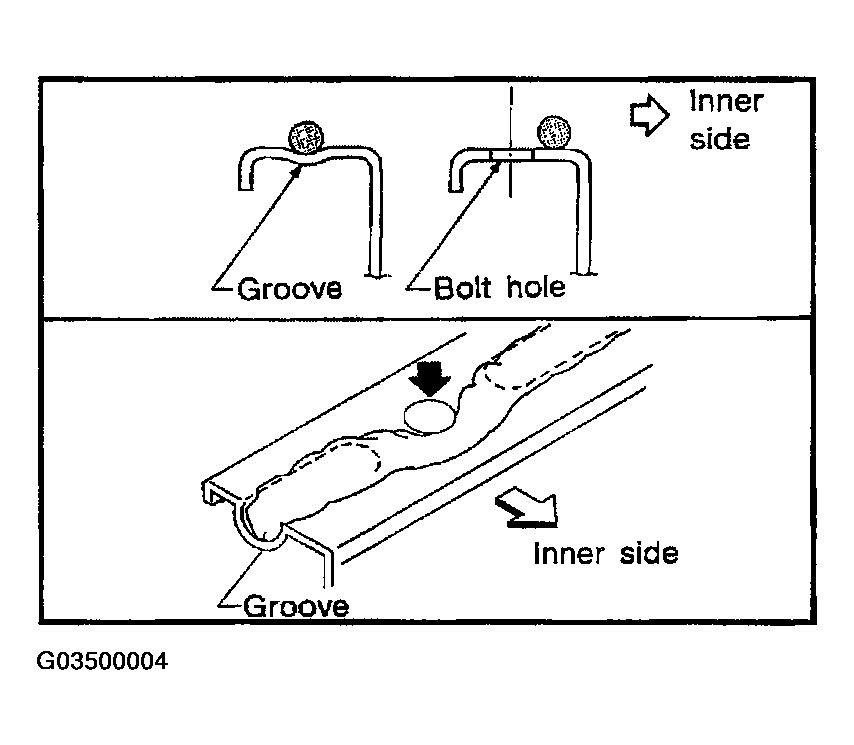

    Fig 3: Identifying Groove And Bolt Hole
    G03500004Courtesy of NISSAN MOTOR CO., U.S.A.
