Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover using power tool. Remove side engine covers.
  2. If removing RH rocker cover, disconnect the mass air flow sensor electrical connector and remove the air cleaner to electric throttle control actuator tube and air cleaner lid. Refer to Removal and Installation .
  3. If removing RH rocker cover, remove the front cowl panel.
  4. If removing RH rocker cover, remove the windshield wiper arms and motor assembly. Refer to REMOVAL AND INSTALLATION FOR WIPER MOTOR .
  5. If removing RH rocker cover, remove the intake manifold collector. Refer to Removal and Installation .
  6. If removing LH rocker cover, disconnect the air fuel (A/F) ratio sensor.
  7. Remove the ignition coils. Refer to Removal and Installation .
  8. Position engine harness aside.
  9. Disconnect PCV hose.
  10. Remove dipstick.

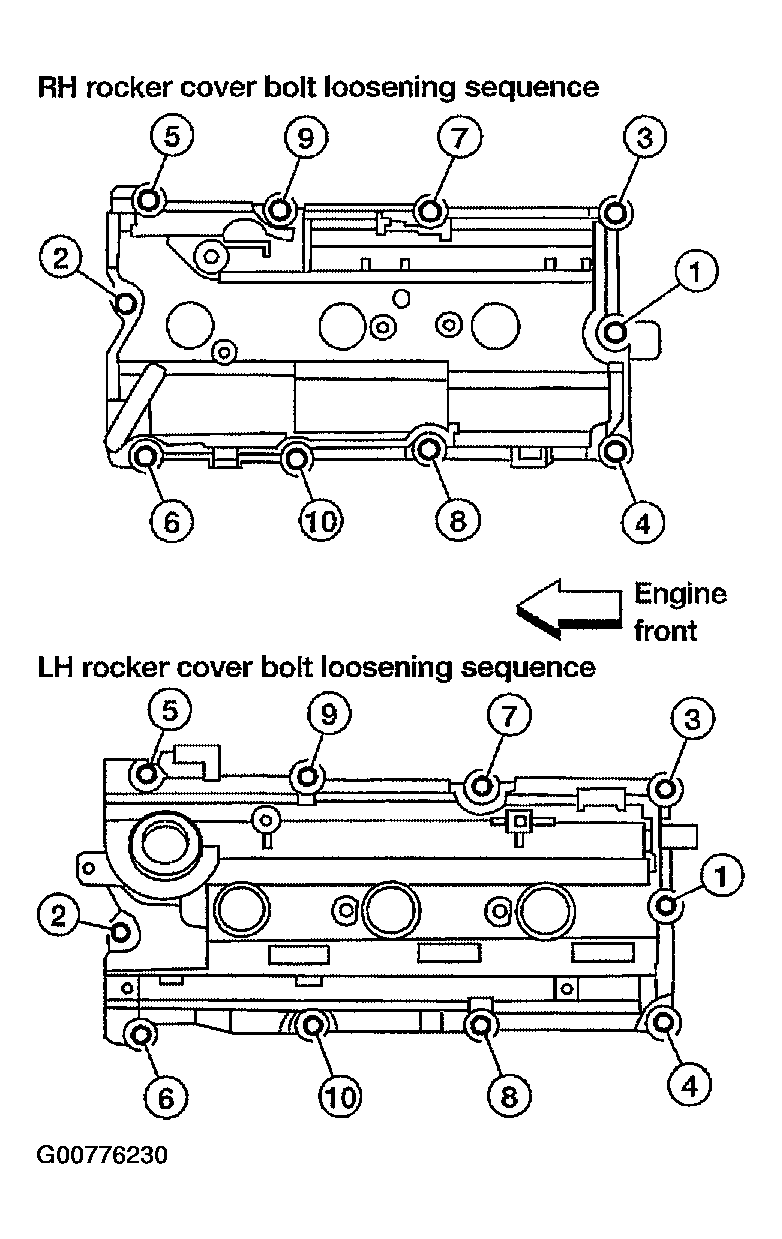

  11. Remove rocker covers bolts in the order shown.
    Fig 1: Removing Rocker Covers Bolts
    G00776230Courtesy of NISSAN MOTOR CO., U.S.A.
