Use the Chart Below to Help You Find the Cause of the Symptom.

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Locate the area where noise occurs.
  2. Confirm the type of noise.
  3. Specify the operating condition of engine.
  4. Check specified noise source. Repair or replace the identified part as necessary.

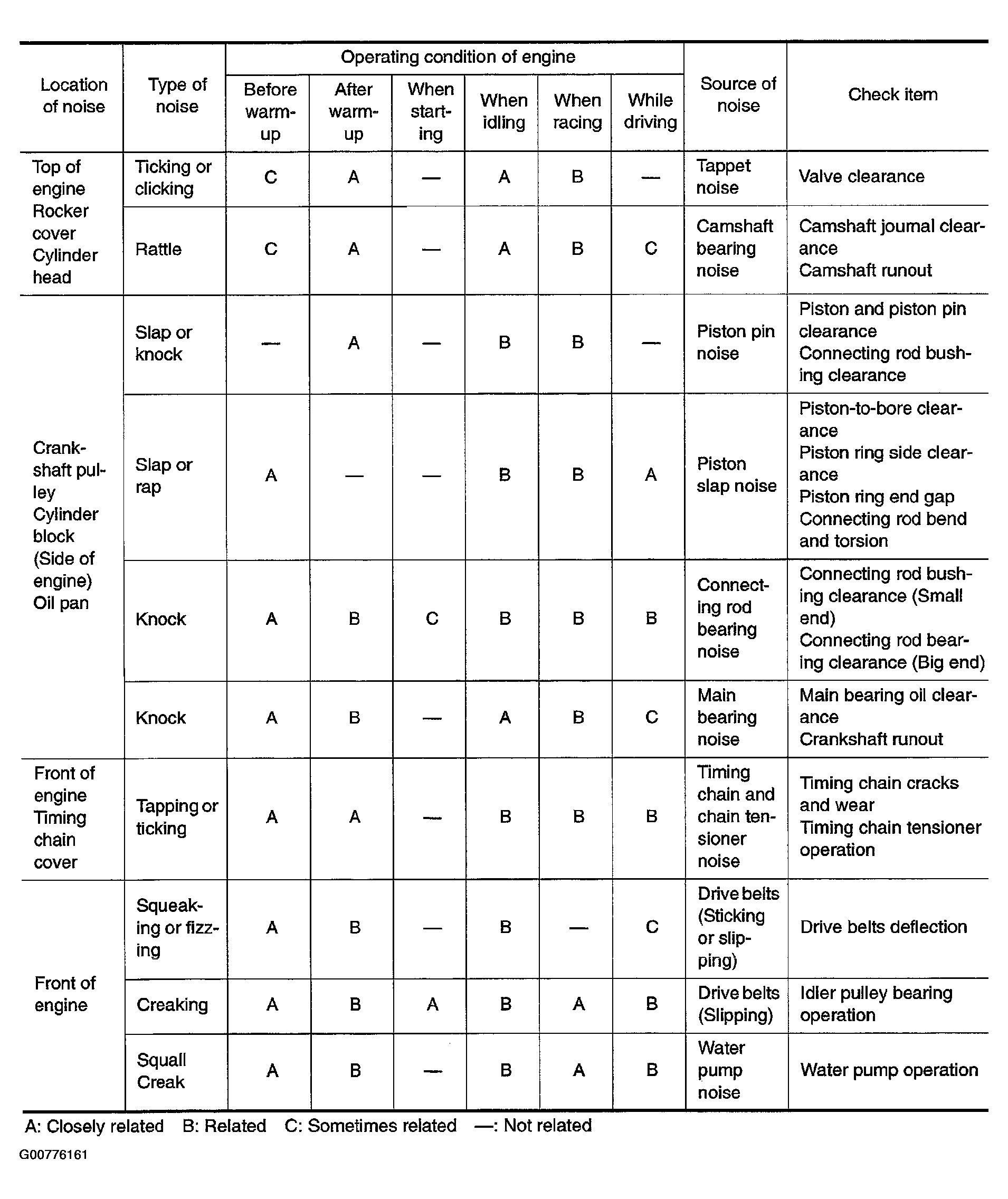

    Fig 1: Symptom Chart
    G00776161Courtesy of NISSAN MOTOR CO., U.S.A.
