Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the fuel pressure. Refer to FUEL PRESSURE RELEASE .
  2. Remove the intake manifold collector. Refer to Removal and Installation .
  3. Remove the fuel rail with the fuel injectors. Refer to Removal and Installation .
  4. Loosen the intake manifold nuts and bolts in the order shown using power tool, and remove the intake manifold.

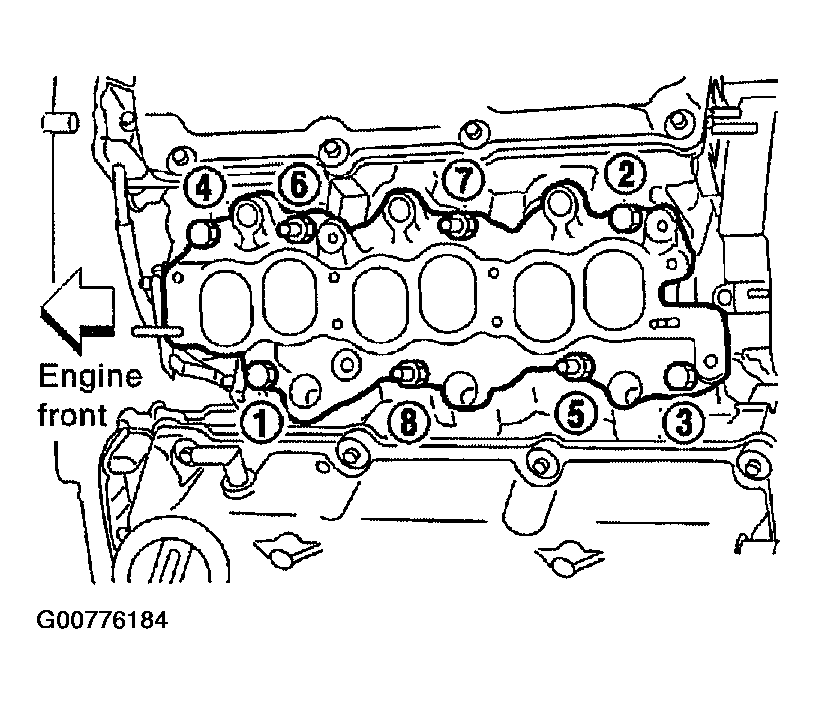

    Fig 1: Loosening Intake Manifold Nuts
    G00776184Courtesy of NISSAN MOTOR CO., U.S.A.
