When New Cylinder Block and Crankshaft are Used

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Main Bearing Selection Table  rows correspond to bearing housing grade on rear left side of cylinder block.

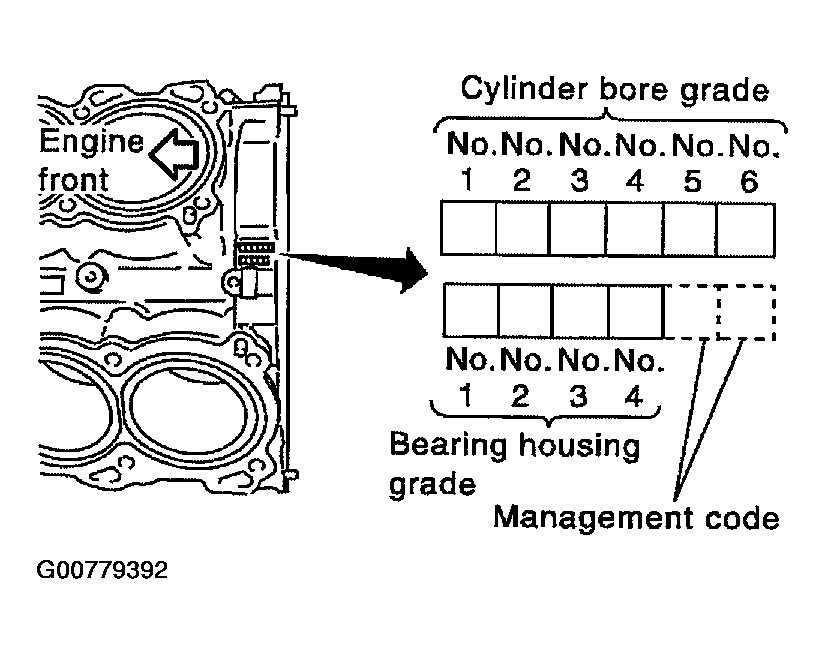

    Fig 1: Identifying Cylinder Bore Grade No.
    G00779392Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Apply journal diameter grade stamped on crankshaft front side to column in Main Bearing Selection Table .
  3. Find sign (main bearing grade) at crossing of row and column in Main Bearing Selection Table .

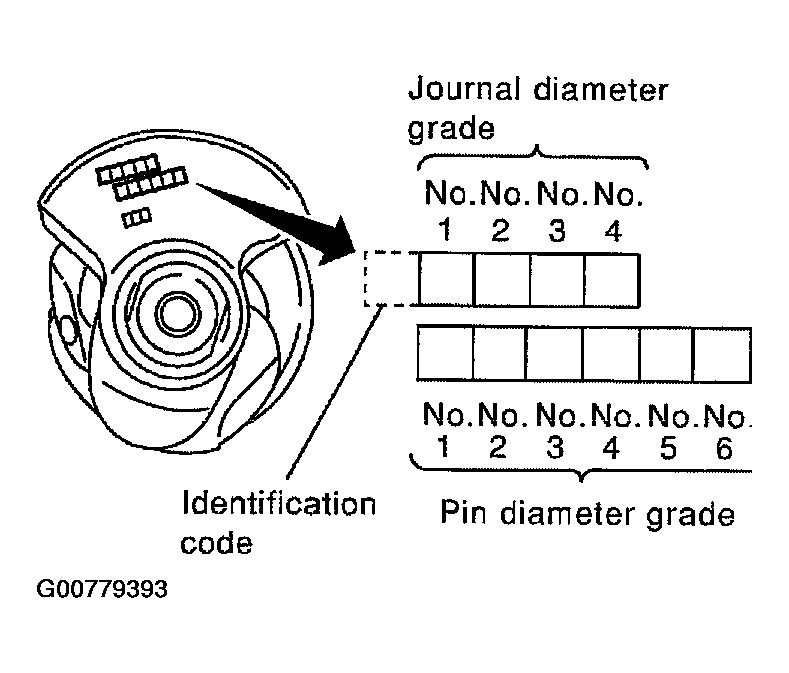

    Fig 2: Identifying Journal Bore Grade No.
    G00779393Courtesy of NISSAN MOTOR CO., U.S.A.
