Outer Diameter of Camshaft Journal
WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

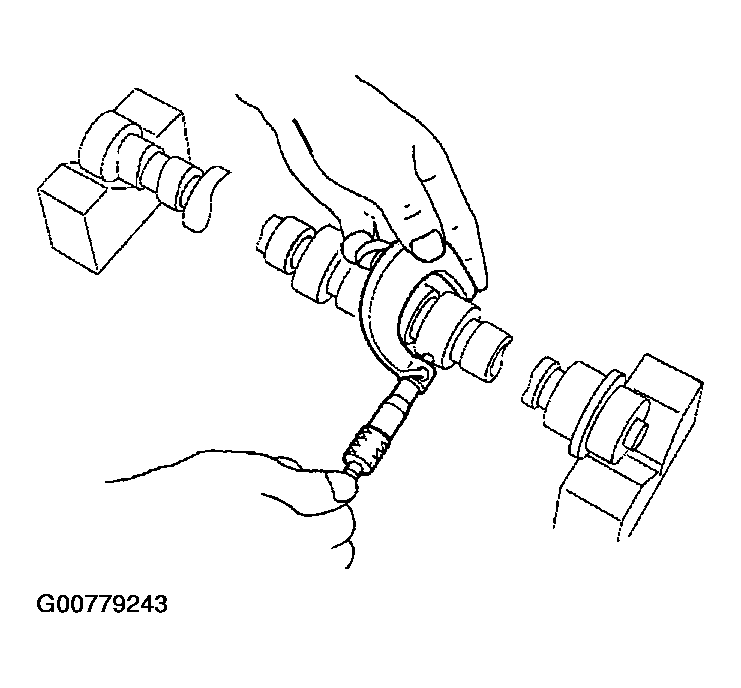

- Measure outer diameter of camshaft journal as shown.
- Standard outer diameter, No. 1: 25.935 - 25.955 mm (1.0211 - 1.0218 in)
- Standard outer diameter, No. 2, 3, 4: 23.445 - 23.465 mm (0.9230 - 0.9238 in)
Courtesy of NISSAN MOTOR CO., U.S.A.
