Disassembly and Assembly: Preparation

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Attach the spacer to the tip of the radiator plate pliers "A". Spacer specification: 1.5 mm (0.059 in) thick x 18 mm (0.71 in) wide x 8.5 mm (0.335 in) long.
  2. Make sure that when radiator plate pliers "A" are closed dimension "H"is approx. 7.6 mm (0.299 in).
  3. Adjust dimension "H" with the spacer, if necessary.

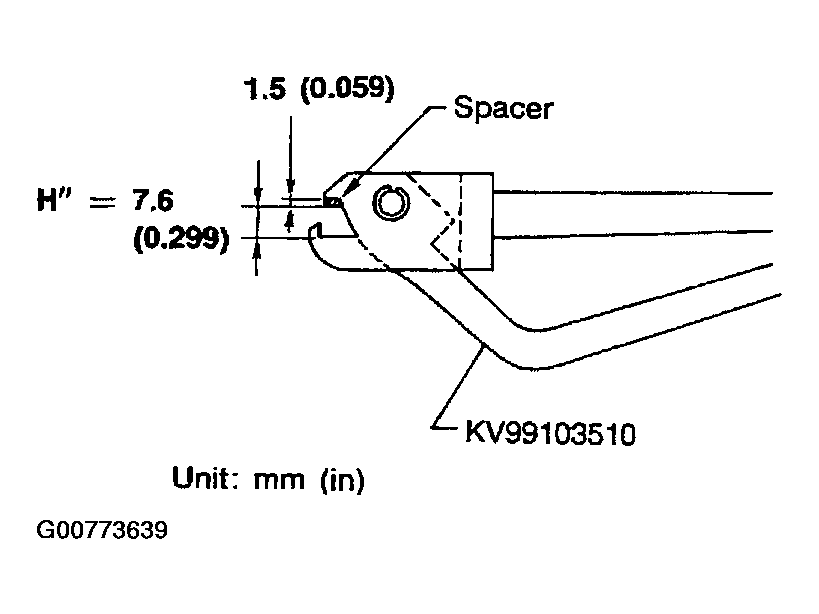

    Fig 1: Identifying Spacer
    G00773639Courtesy of NISSAN MOTOR CO., U.S.A.
