Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

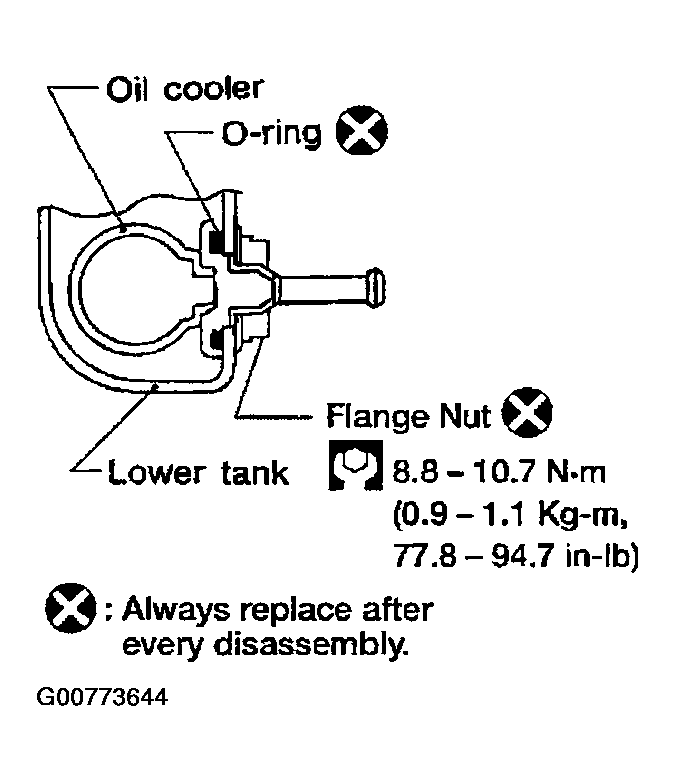

Install oil cooler (A/T model only).

Fig 1: Installing Oil Cooler
Courtesy of NISSAN MOTOR CO., U.S.A.

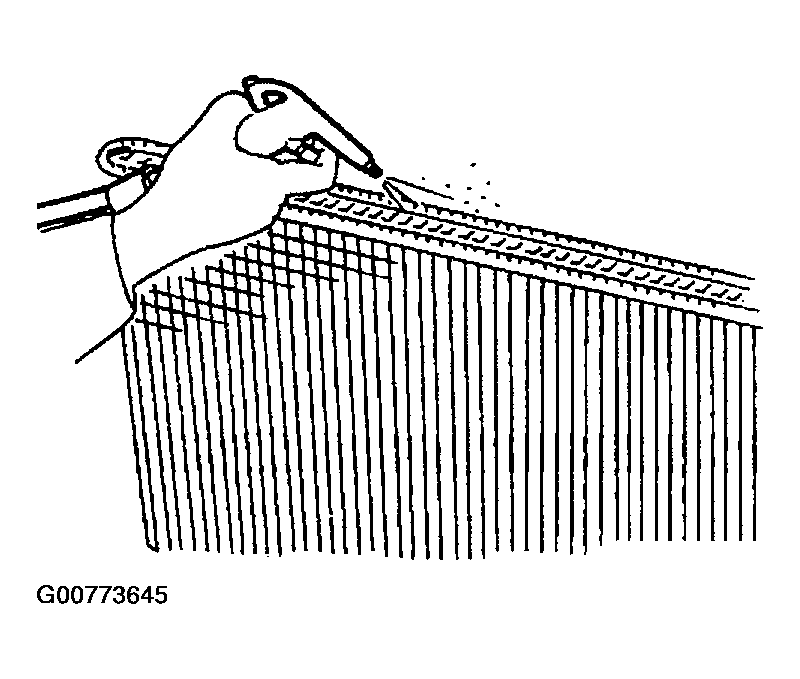

Clean contact portion of tank.

Fig 2: Cleaning Contact Portion Of Tank
Courtesy of NISSAN MOTOR CO., U.S.A.

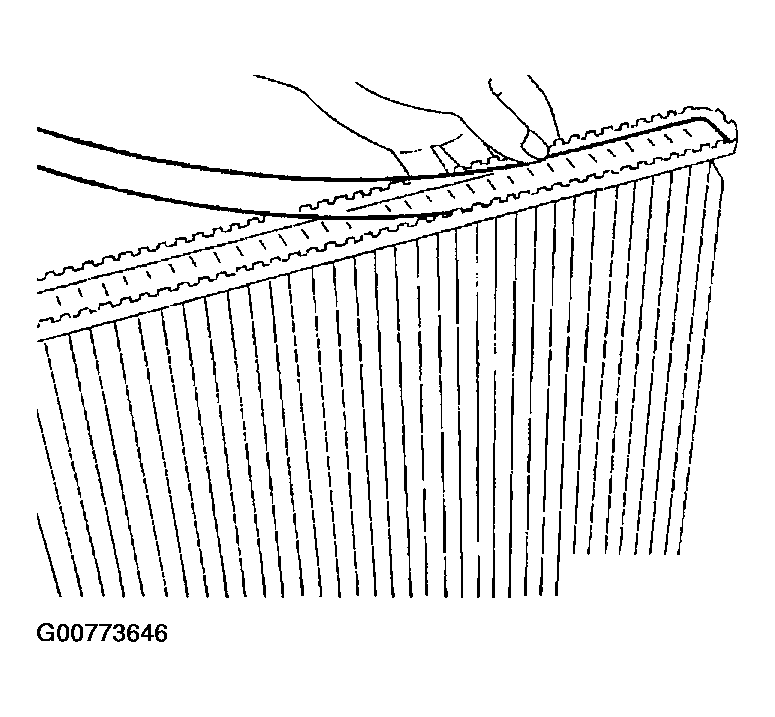

Install sealing rubber.
NOTE: Push it in with fingers.

CAUTION: Be careful not to twist sealing rubber.

Fig 3: Installing Sealing Rubber
Courtesy of NISSAN MOTOR CO., U.S.A.

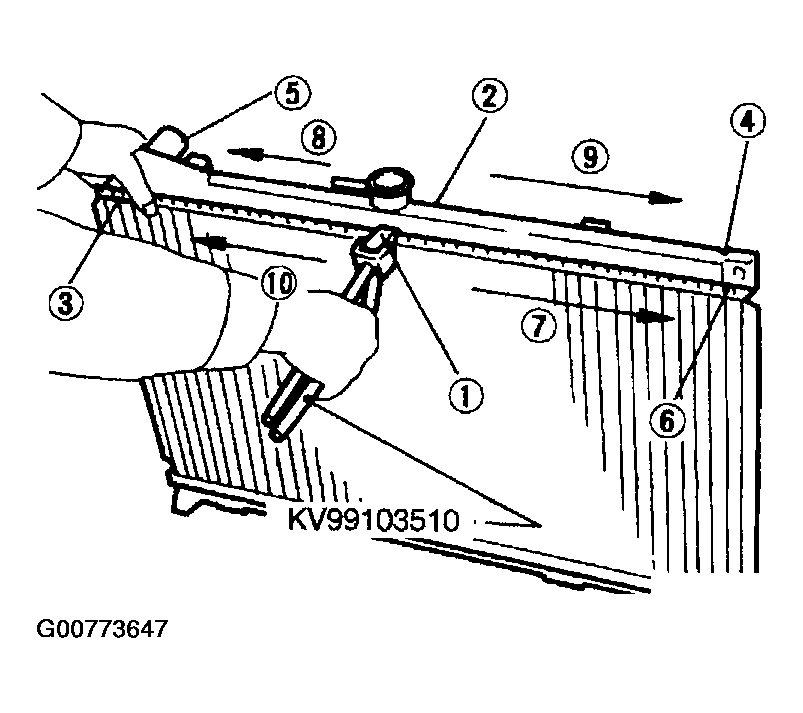

Crimp tank in specified sequence using Tool.

Fig 4: Crimping Tank
Courtesy of NISSAN MOTOR CO., U.S.A.

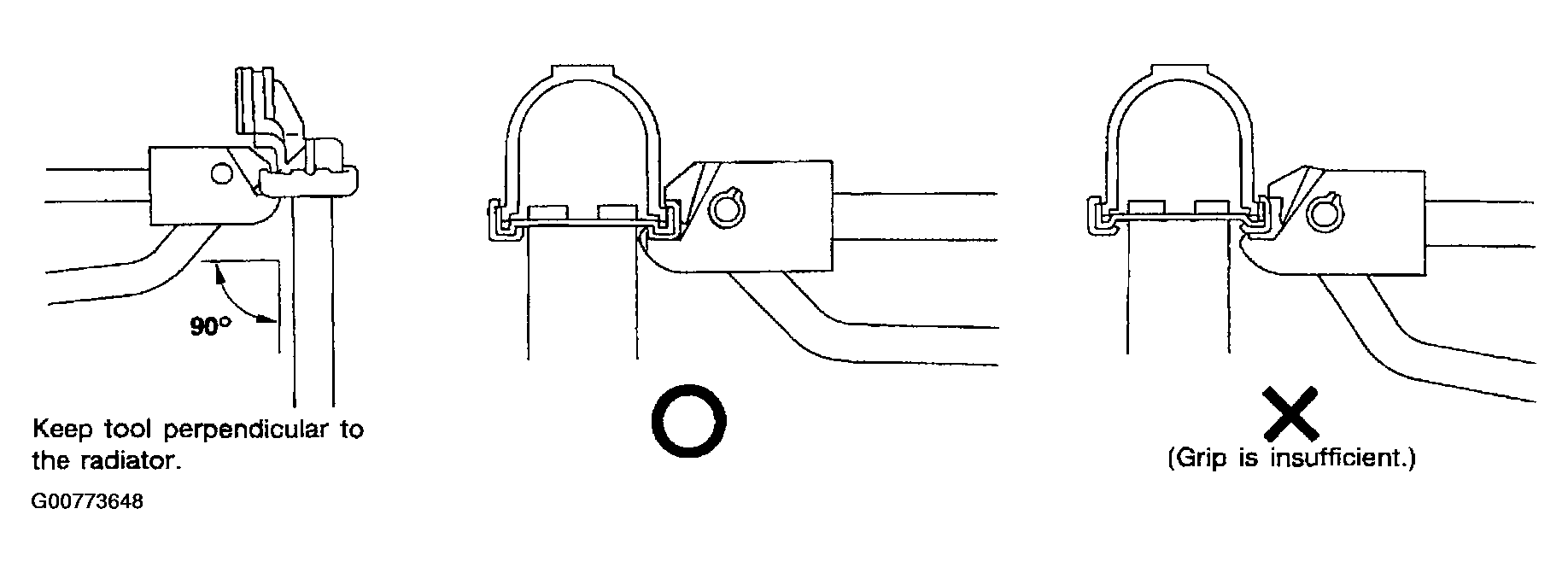

Fig 5: Identifying Grip Position
Courtesy of NISSAN MOTOR CO., U.S.A.

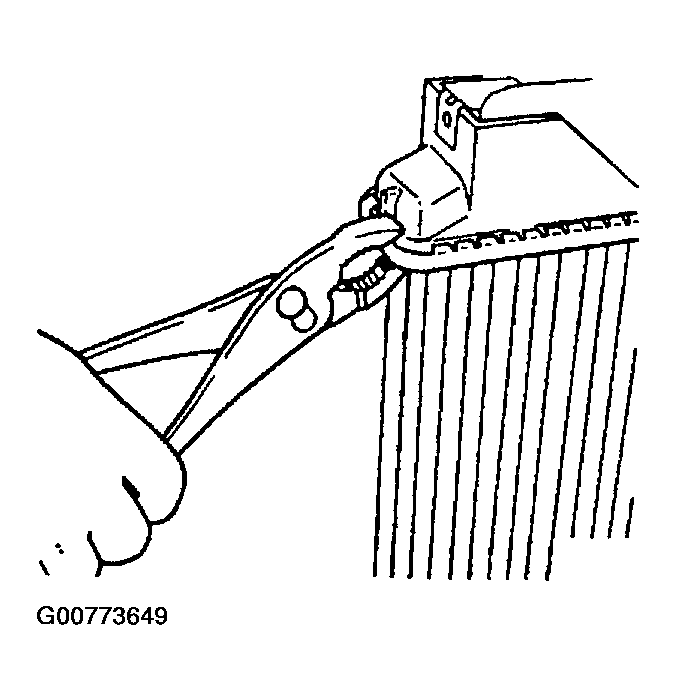

- Use pliers in the locations where Tool cannot be used.

  Fig 6: Identifying Plier Gripping
  Courtesy of NISSAN MOTOR CO., U.S.A.

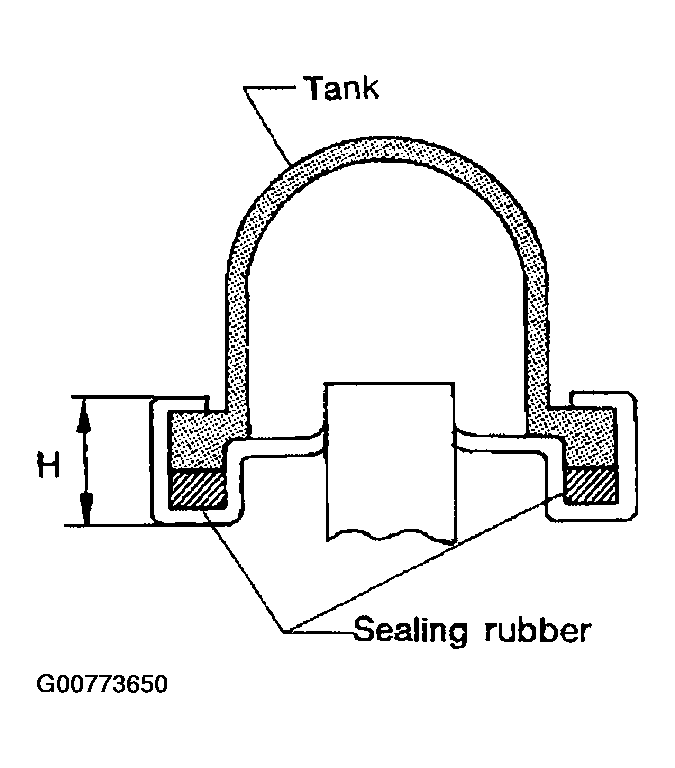

Make sure that the rim is completely crimped down.
1. Standard height "H" :8.0 - 8.4 mm (0.315-0.331 in)
Confirm that there is no leakage.
- Refer to . "CHECKING COOLING SYSTEM FOR LEAKS ".
Fig 7: Identifying Sealing Rubber
Courtesy of NISSAN MOTOR CO., U.S.A.
