Removal and Installation: Notes

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

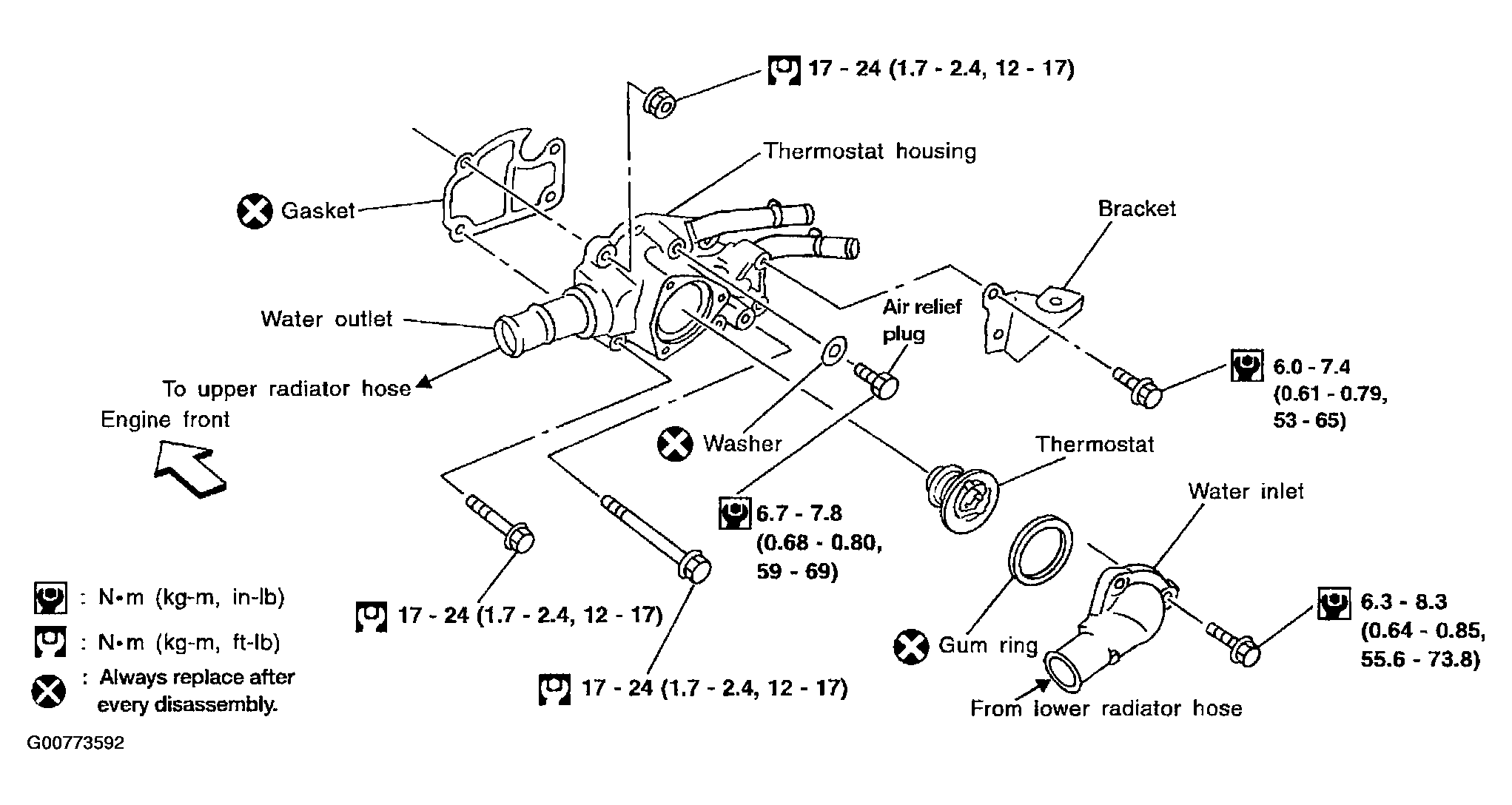

Fig 1: Exploded View Of Thermostat Housing
G00773592Courtesy of NISSAN MOTOR CO., U.S.A.
WARNING: Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure coolant escaping from the radiator.
CAUTION: Be careful not to spill coolant over the engine compartment. Use a rag to absorb any spilled coolant.
