Removal and Installation: Installation

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal, paying attention to the following:
- Before installing the thermostat, make sure the gum ring is properly seated around the thermostat.

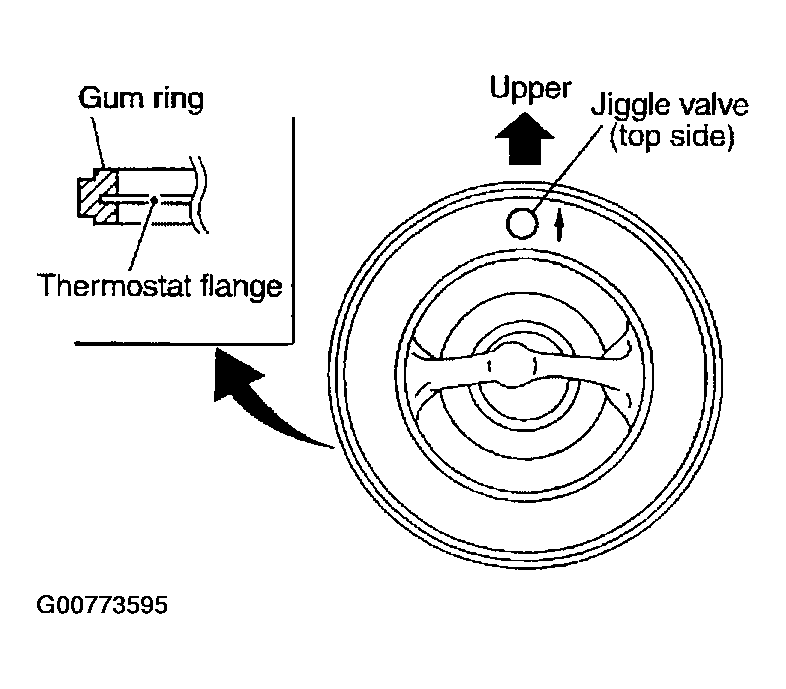

  Fig 1: Identifying Thermostat Gum Ring
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Install thermostat with jiggle valve or air bleeder at upper side.

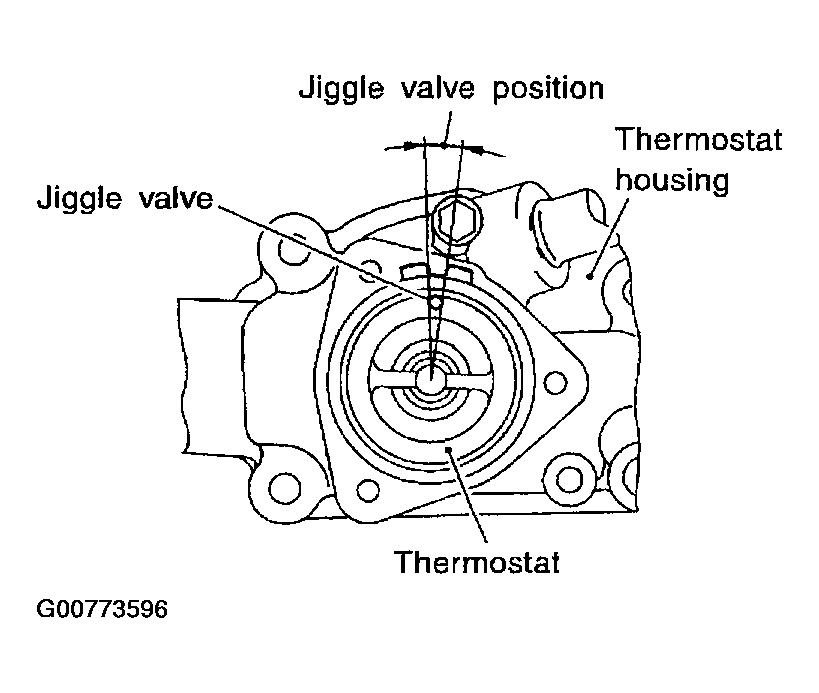

  Fig 2: Installing Thermostat With Jiggle Valve Or Air Bleeder At Upper Side
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Refill engine coolant after installation. Run engine for a few minutes, and check for any coolant leaks. Refer to Changing Engine Coolant .
