Section 1042 (Engine Cooling System - QG18DE): Radiator: Inspection

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Apply pressure using Tool.
1. Specified pressure value : 157 kPa (1.6 kg/cm ² , 23 psi)
WARNING: To prevent the risk of the hose coming undone while under pressure, securely fasten it down with a hose clamp. Attach a hose to the oil cooler as well (A/T model only).
Check for leaks in dip tank.

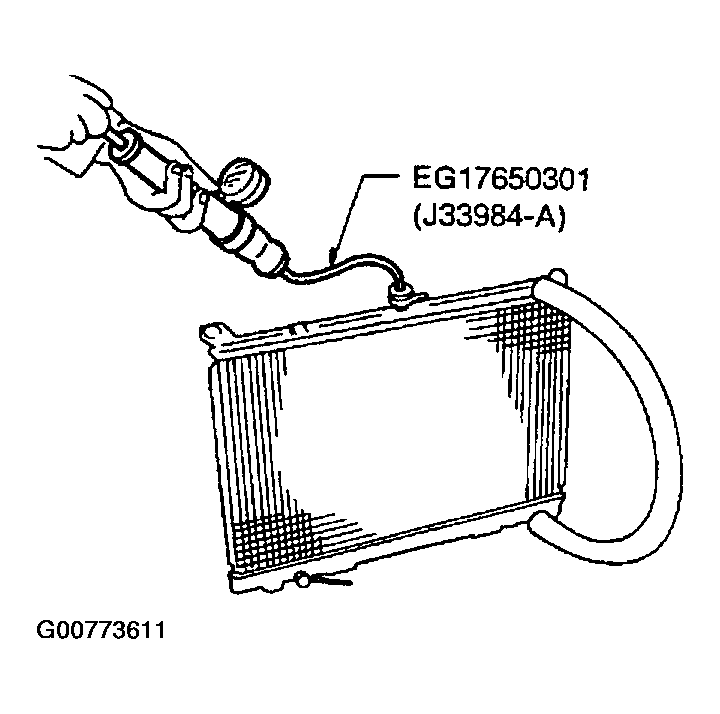

Fig 1: Applying Pressure To Radiator
Courtesy of NISSAN MOTOR CO., U.S.A.

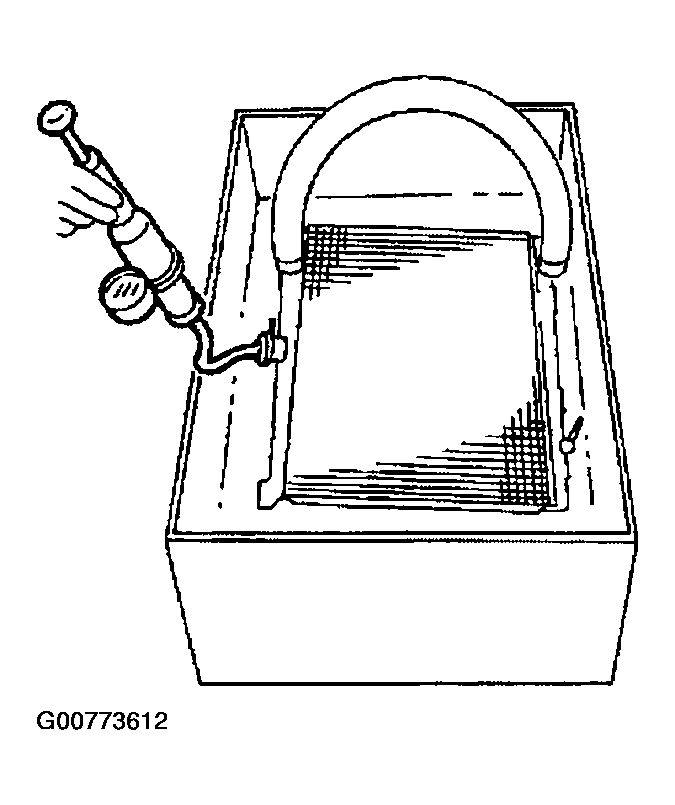

Fig 2: Checking For Leaks In Deep Tank
Courtesy of NISSAN MOTOR CO., U.S.A.
