Liquid Gasket Application Procedure

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Using a scraper, remove the old sealant adhering to the gasket application surface and the mating surface.
- Remove the old sealant completely from the groove of the gasket application surface, mounting bolts, and bolt holes.
Clean the mating surface to remove dirt, moisture, grease, and foreign material.
Attach the sealant tube to the tube presser.
Use Genuine RTV Silicone Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .

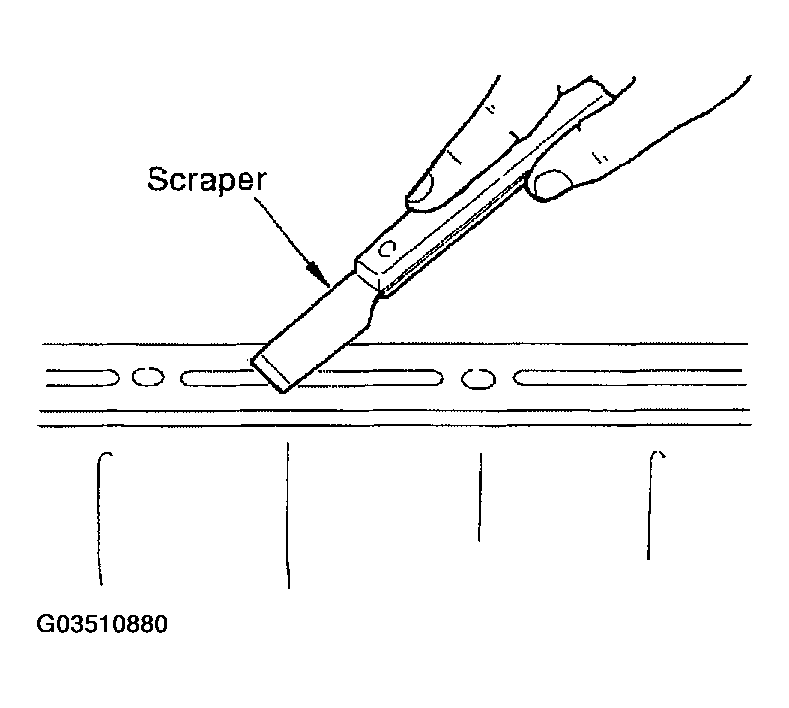

Fig 1: Removing Old Sealant
Courtesy of NISSAN MOTOR CO., U.S.A.
Apply the sealant without breaks to the specified location with the specified dimensions.

If there is a groove for the sealant application, apply the Sealant to the groove.
As for the bolt holes, normally apply the sealant inside the holes. Occasionally, it should be applied outside the holes.

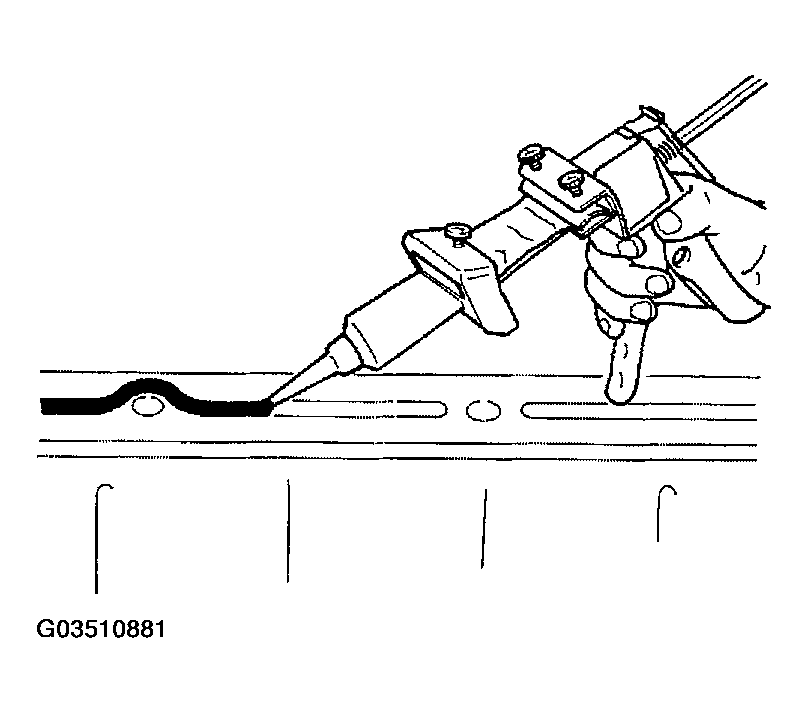

Fig 2: Applying Sealant To Groove

Courtesy of NISSAN MOTOR CO., U.S.A.

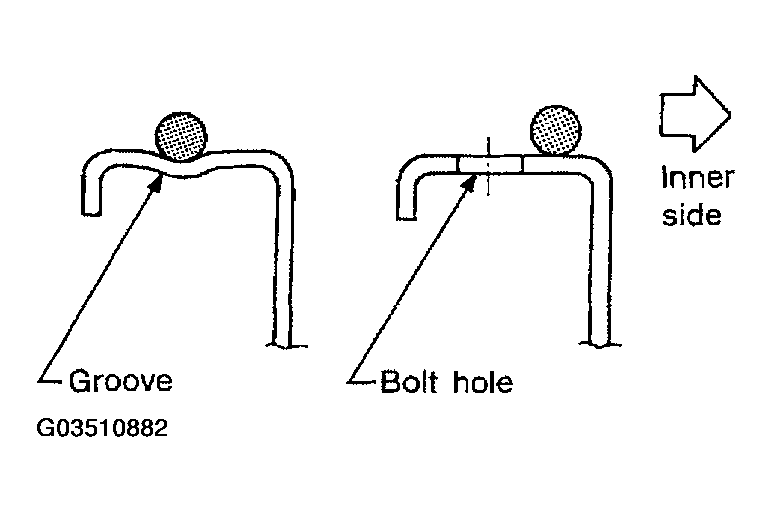

Fig 3: Applying Sealant Inside Holes

Courtesy of NISSAN MOTOR CO., U.S.A.

Within five minutes of sealant application, install the mating component.
If the sealant protrudes, wipe it off immediately.
Do not retighten after the installation.
After 30 minutes or more have passed after installation, fill the engine with oil and coolant.

CAUTION: If there are specific instructions in the service manual, observe them.
