Timing Chain: Components

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

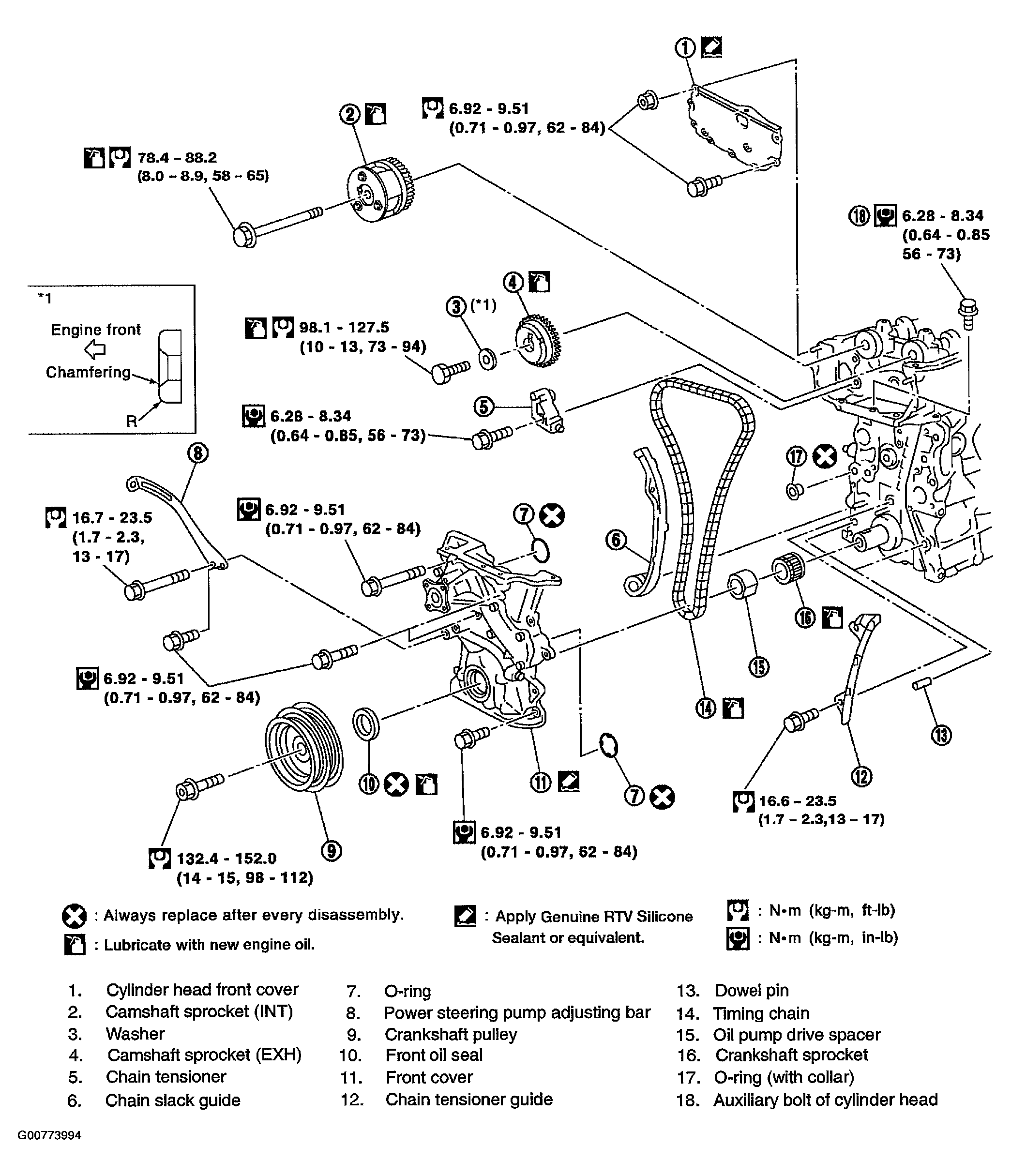

Fig 1: Identifying Timing Chain And Its Related Components
G00773994Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • After removing timing chain, do not turn crankshaft and camshaft separately, or valves will strike piston heads.
  • When installing chain tensioner, oil seats, or other sliding parts, lubricate contacting surfaces with new engine oil.
  • Apply new engine oil to bolt threads and seat surfaces when installing camshaft sprocket and crankshaft pulley.
