Valve Clearance

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

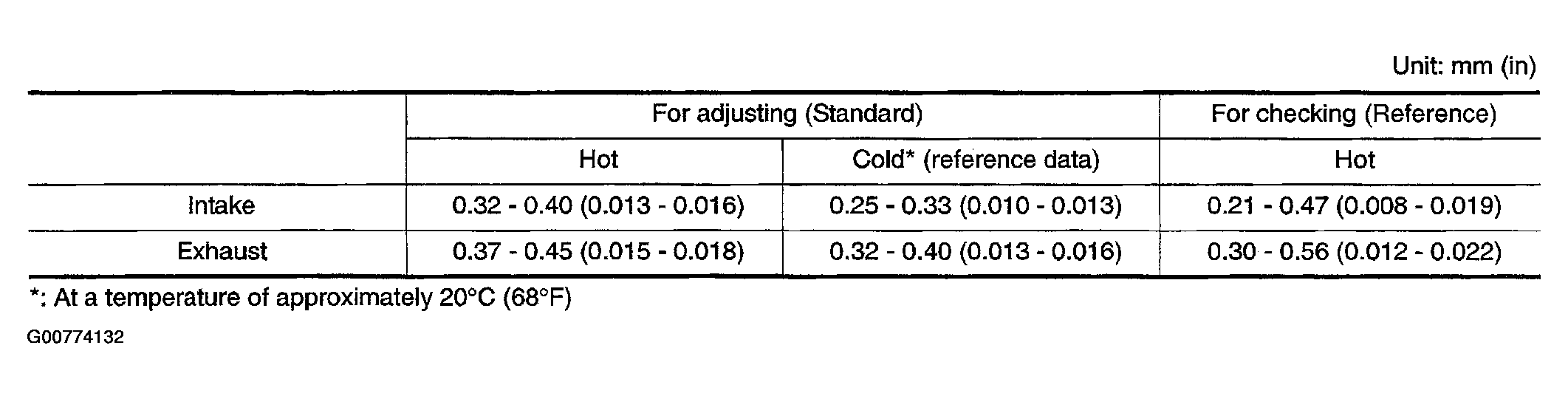

Fig 1: Engine Valve Clearance Specifications Chart
G00774132Courtesy of NISSAN MOTOR CO., U.S.A.

Whenever valve clearances are adjusted to cold specifications, check that the clearances satisfy hot specifications and adjust again if necessary.
