Removal and Installation: Removal
WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
- Move the harnesses on top surface and right side of rocker cover aside.
- Remove the ignition coils.
- Disconnect the PCV hose and blowby hose from the rocker cover.
- If necessary, remove the PCV control valve.
- Disconnect the intake valve timing control solenoid valve and camshaft position sensor (PHASE).
- If necessary, remove the intake valve timing control solenoid valve and camshaft position sensor (PHASE).CAUTION:
- Do not shock it.
- Do not disassemble it.
- The tip of the camshaft position sensor (PHASE) generates a strong magnetic field. Keep it away from metallic particles or objects affected by magnetic fields.

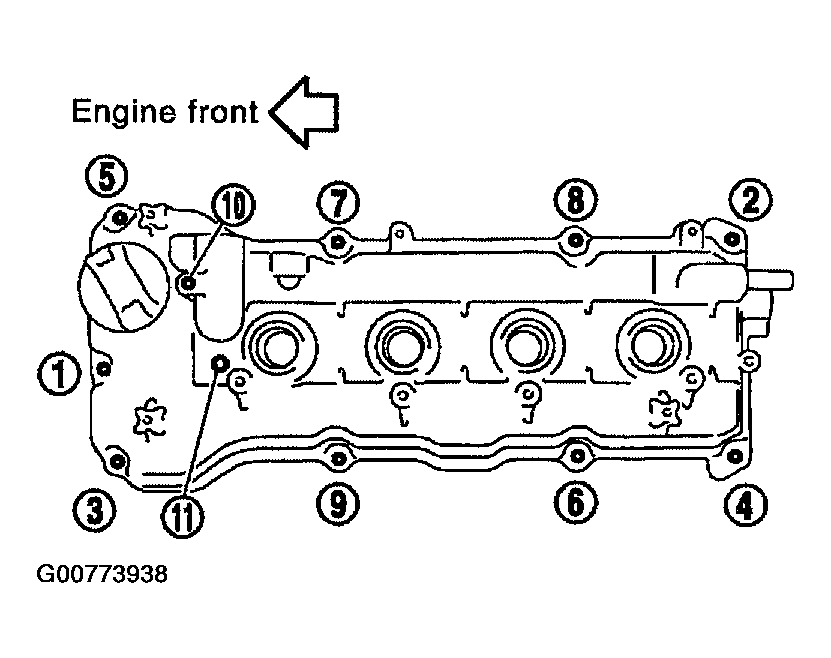

- Loosen the bolts in the order shown.
- If replacement is necessary, remove the rocker cover oil seal using a flat-head screwdriver.CAUTION: Be careful not to damage the rocker cover.
- Remove the rocker cover oil seal using a suitable tool.
