Removal and Installation

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

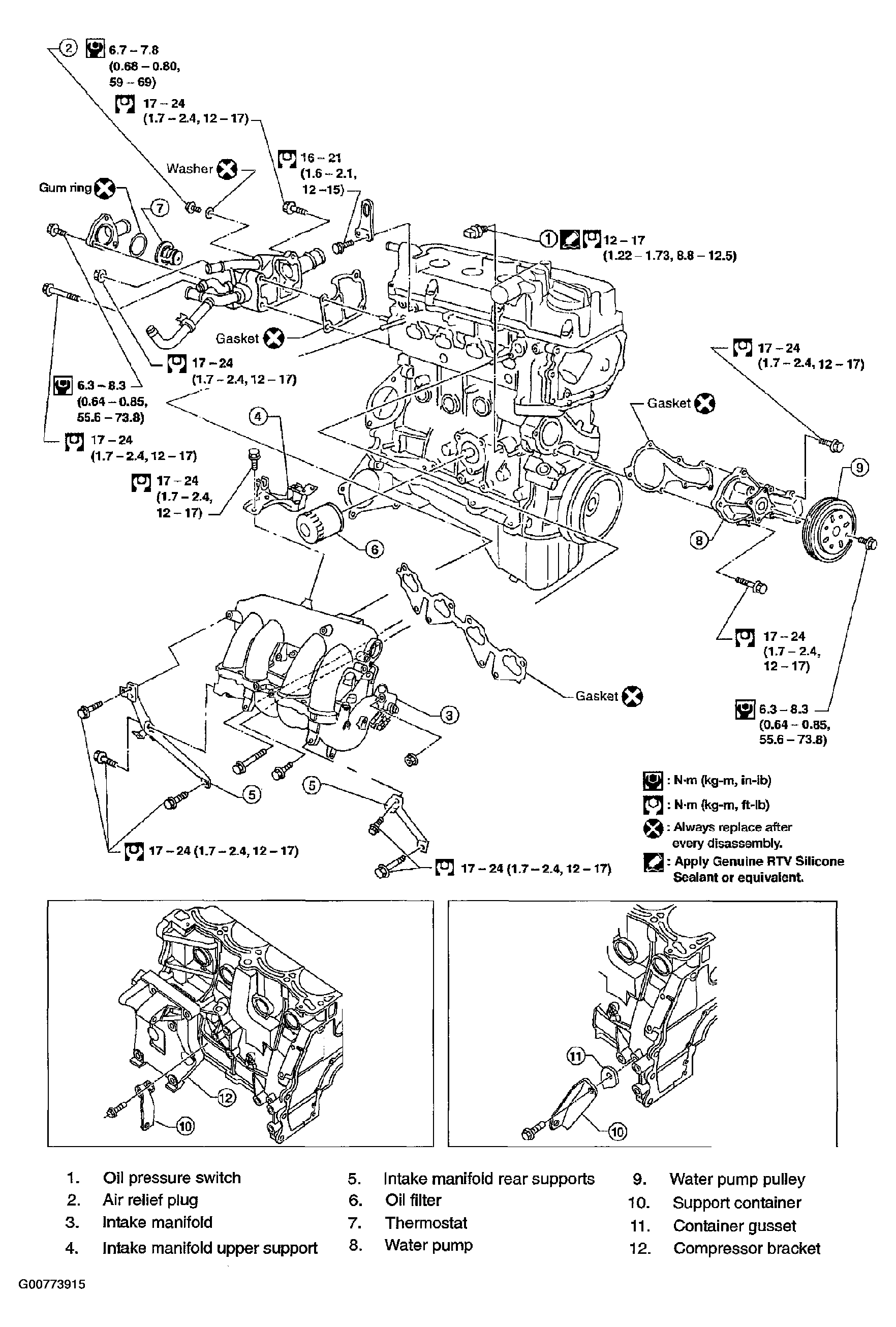

Fig 1: Removing Engine Outer Components (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Removing Engine Outer Components (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Perform "Throttle Valve Closed Position Learning" when harness connector of electronic throttle control actuator is disconnected. Refer to THROTTLE VALVE CLOSED POSITION LEARNING .
Perform "Idle Air Volume Learning" when harness connector of electronic throttle control actuator is replaced. Refer to IDLE AIR VOLUME LEARNING .

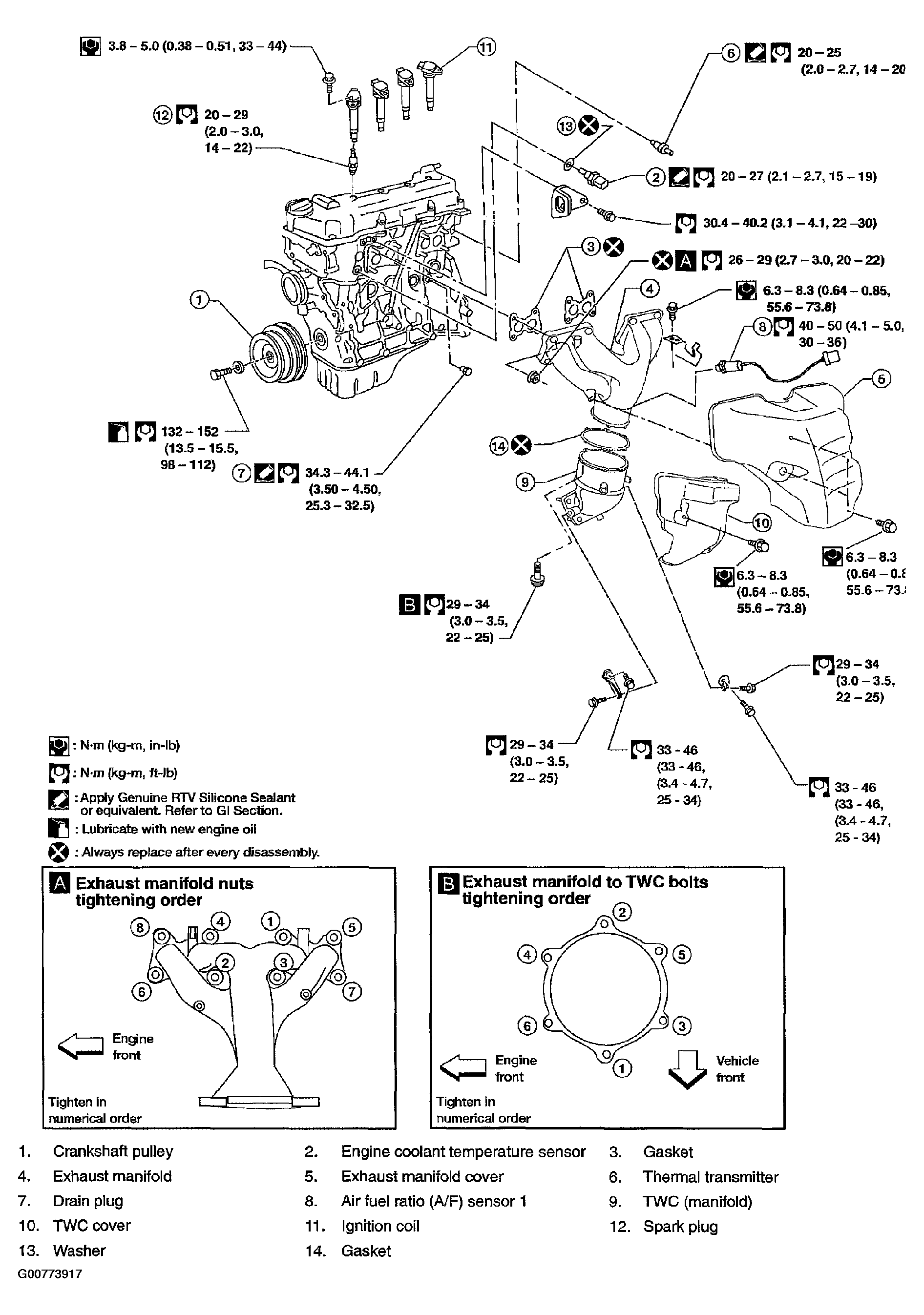

Fig 3: Removing Exhaust Manifold

Courtesy of NISSAN MOTOR CO., U.S.A.
