Rear Oil Seal

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transaxle. Refer to REMOVAL AND INSTALLATION (RS5F70A M/T) or REMOVAL AND INSTALLATION (RE4F03B A/T).
  2. Remove flywheel (MT) or drive plate (AT).
  3. Remove rear oil seal using suitable tool.
    CAUTION: Be careful not to scratch rear oil seal retainer.

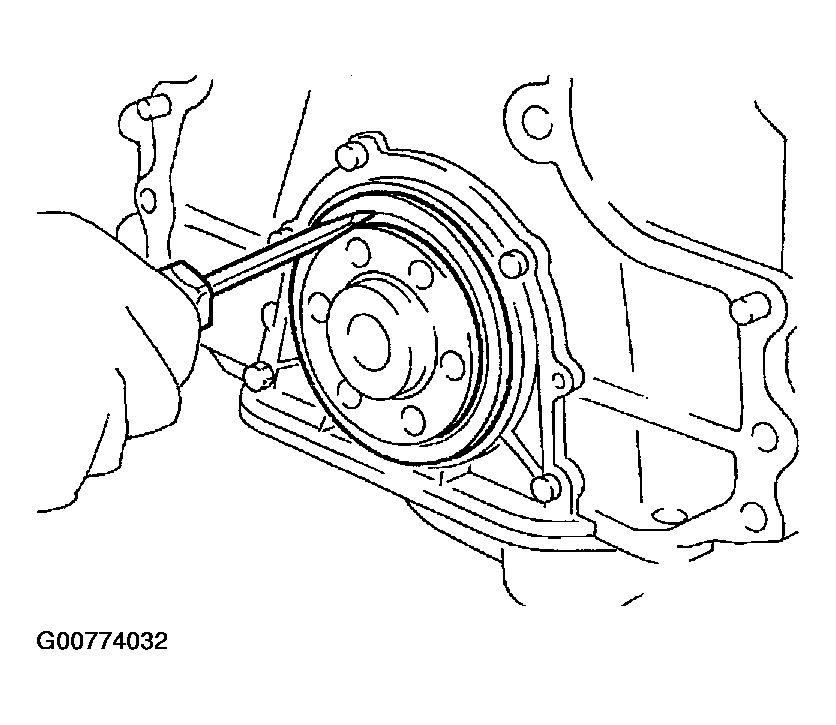

    Fig 1: Removing Rear Oil Seal Using Suitable Tool
    G00774032Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Apply new engine oil to new oil seal and install it using a suitable tool.
    • Install new oil seal in the direction shown.

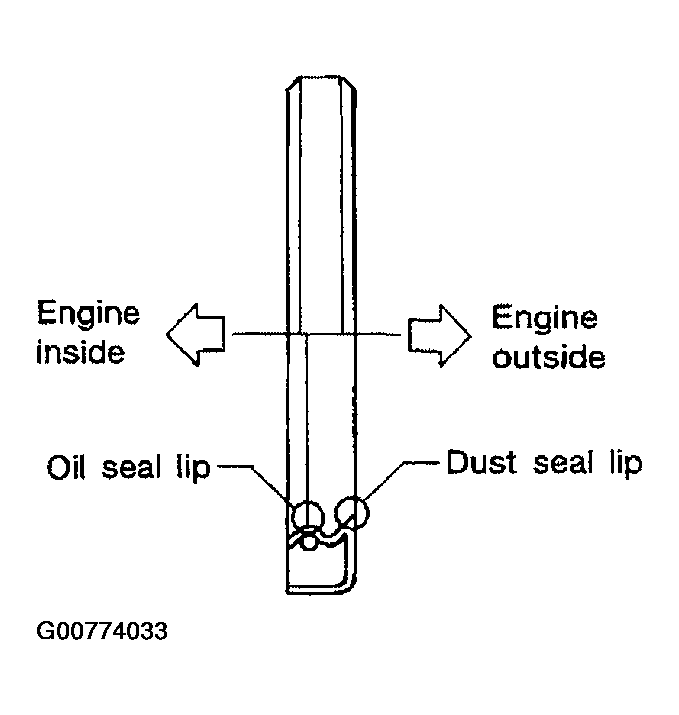

    Fig 2: Identifying Oil Seal Lip
    G00774033Courtesy of NISSAN MOTOR CO., U.S.A.

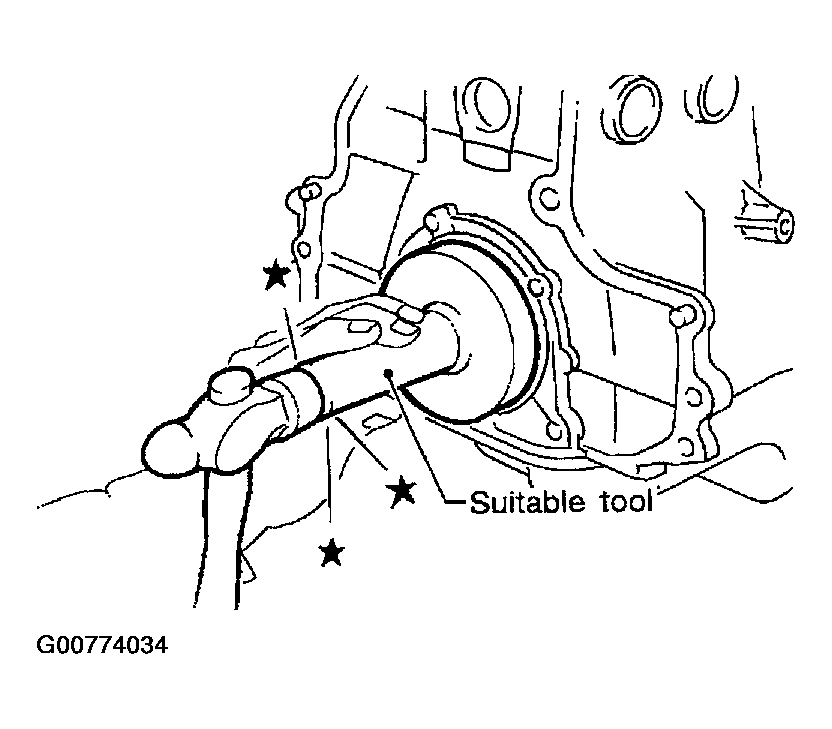

    Fig 3: Installing Rear Oil Seal Using Suitable Tool
    G00774034Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install flywheel (MT) or drive plate (AT). Refer to "COMPONENTS ".
  6. Install the transaxle. Refer to REMOVAL AND INSTALLATION (RS5F70A M/T), REMOVAL AND INSTALLATION (RS6F51H), REMOVAL AND INSTALLATION (RE4F03B) or REMOVAL AND INSTALLATION (RE4F04B).
