Front Oil Seal

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Remove the following parts:
- Engine under cover
- RH engine side cover
- Generator and power steering drive belts
- Crankshaft pulley
Remove front oil seal from front cover using suitable tool.
CAUTION: Be careful not to scratch front cover.

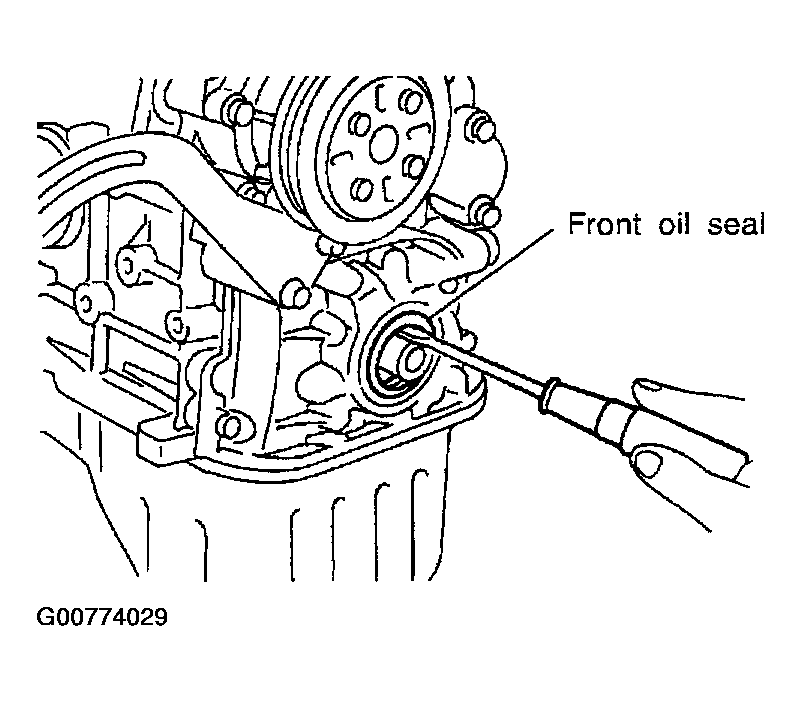

Fig 1: Removing Front Oil Seal From Front Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
Apply new engine oil to new oil seal and install it using a suitable tool.
- Install new oil seal in the direction shown.

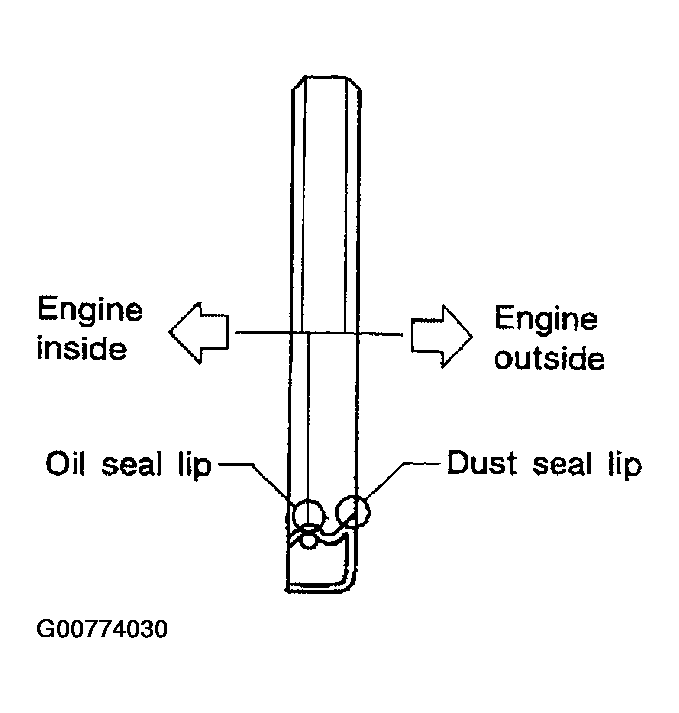

Fig 2: Identifying Oil Seal Lip
Courtesy of NISSAN MOTOR CO., U.S.A.

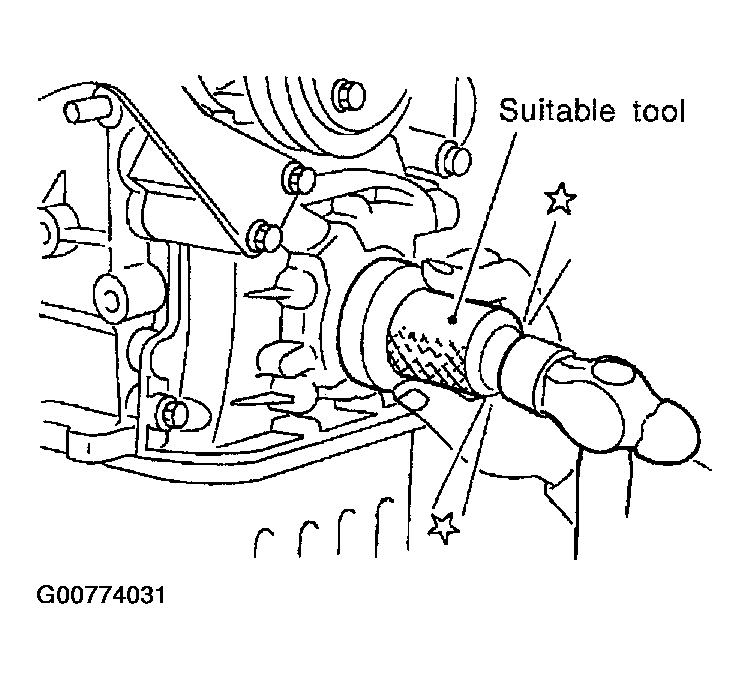

Fig 3: Installing Front Oil Seal To Front Cover
Courtesy of NISSAN MOTOR CO., U.S.A.
