NVH Troubleshooting - Engine Noise

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Use the chart below to help you find the cause of the symptom.

Locate the area where noise occurs.
Confirm the type of noise.
Specify the operating condition of engine.
Check specified noise source.

If necessary, repair or replace these parts.

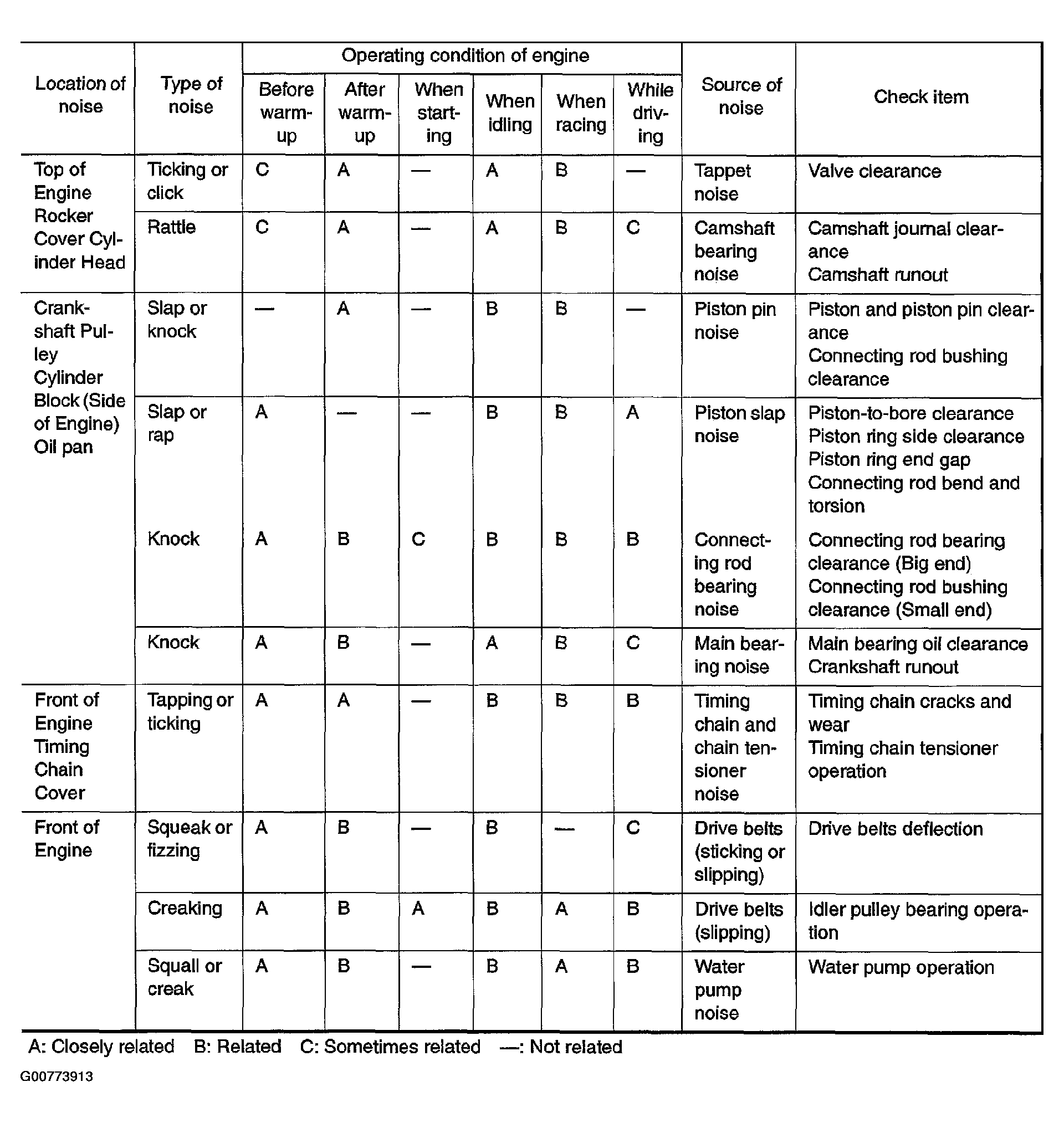

Fig 1: Noise, Vibration, And Harshness (NVH) Troubleshooting Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

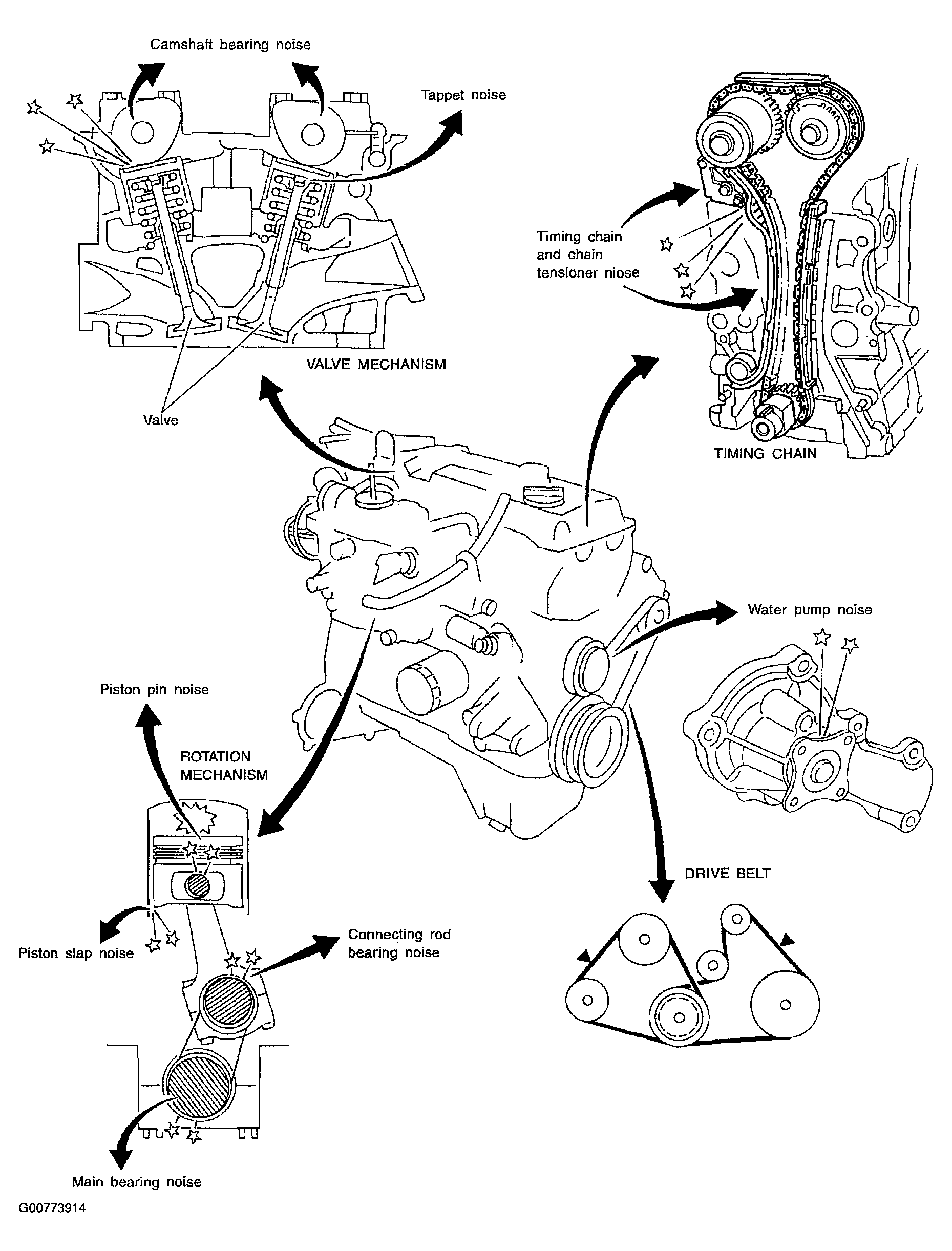

Fig 2: Identifying Engine Components

Courtesy of NISSAN MOTOR CO., U.S.A.
