Removal and Installation: Installation

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Before installing cylinder head gasket, apply a bead of Genuine RTV Silicone Sealant or equivalent, to mating surface of cylinder block as shown.
- Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
Install the cylinder head gasket.
NOTE: When installing the cylinder head with intake manifold, use a new cylinder head gasket.

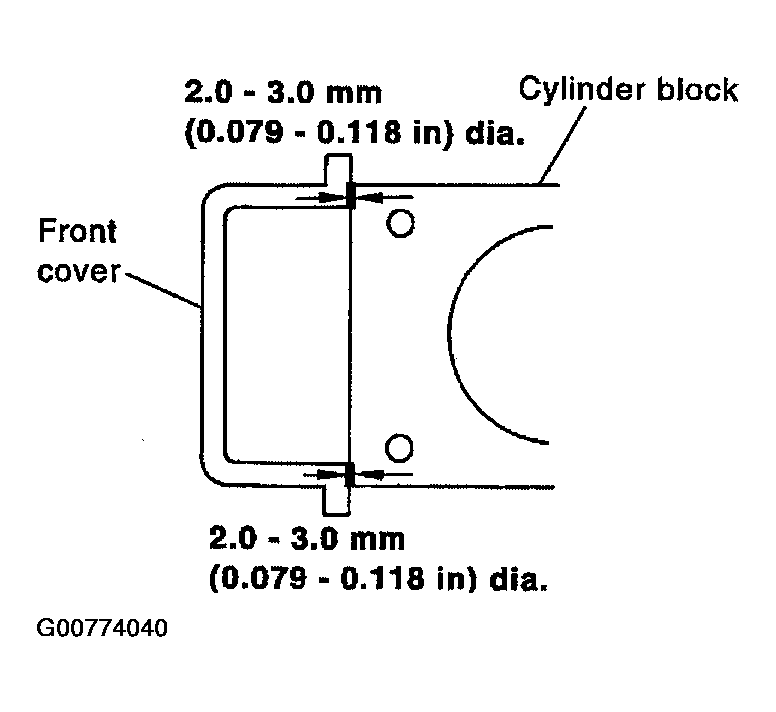

Fig 1: Identifying Cylinder Block And Front Cover For Applying Sealant
Courtesy of NISSAN MOTOR CO., U.S.A.
Install cylinder head and cylinder head bolts with washers.
- Apply new engine oil to threads and seating surface of mounting bolts.
CAUTION:
- Be sure to install washers between bolts and cylinder head with washer orientation as shown.

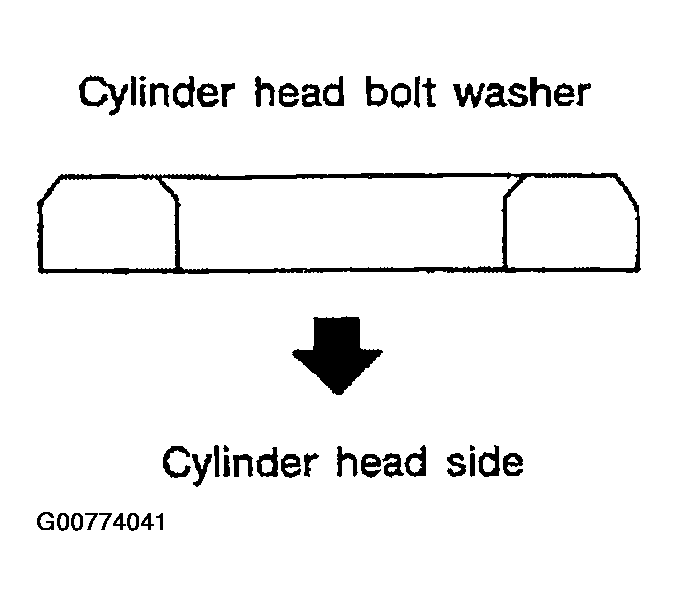

  Fig 2: Identifying Cylinder Head Bolt Washer
  Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten cylinder head bolts (1) to (10) in numerical order as shown in five steps.
1. Cylinder head bolts
  1. Step 1 : 29.4 N.m (3.0 kg-m, 22 ft-lb)
  2. Step 2 : 58.8 N.m (6.0 kg-m, 43 ft-lb)
  3. Step 3 : 0 N.m (0 kg-m, 0 ft-lb) (loosen)
  4. Step 4 : 27.4 - 31.4 N.m (2.8 - 3.2 kg-m, 21 - 23 ft-lb)
  5. Step 5 : 50° - 55° (target 50°) clockwise

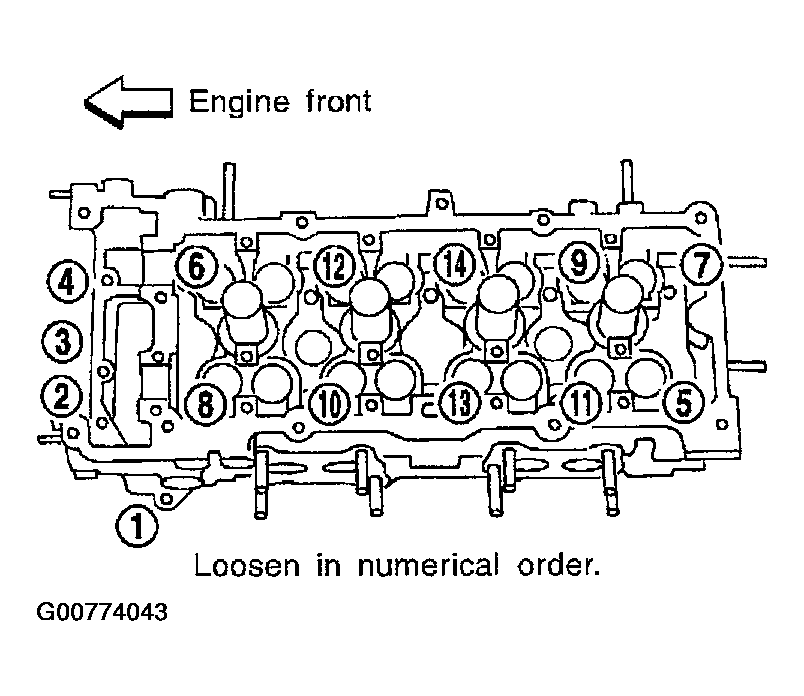

Fig 3: Identifying Tightening Sequence Of Cylinder Head Bolts (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

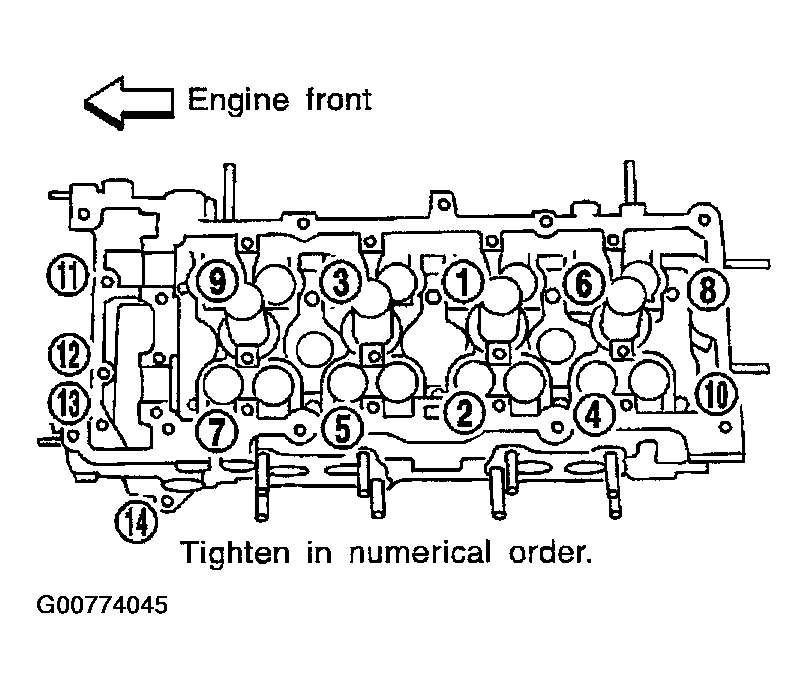

Fig 4: Identifying Tightening Sequence Of Cylinder Head Bolts (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Check and confirm the tightening angle by using angle wrench.

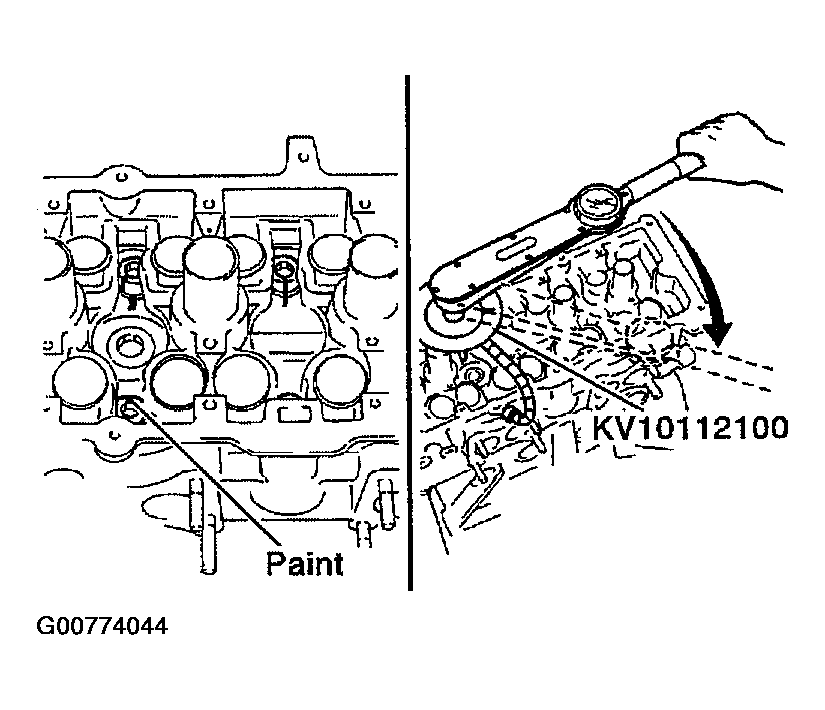

Fig 5: Checking Tightening Angle By Using Angle Wrench
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten cylinder head auxiliary bolts (11) to (14) in numerical order shown.
1. Cylinder head auxiliary bolts : 6.28 - 8.34 N.m (0.64 - 0.85 kg-m, 56 - 73 in-lb)
- Verify shank length under bolt head. [Bolt 11:20 mm (0.79 in), bolts 12 - 14: 25 mm (0.98 in)]
Fig 6: Identifying Tightening Sequence Of Cylinder Head Auxiliary Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Installation of the remaining components is in the reverse order of removal.
