Disassembly and Assembly: Notes

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

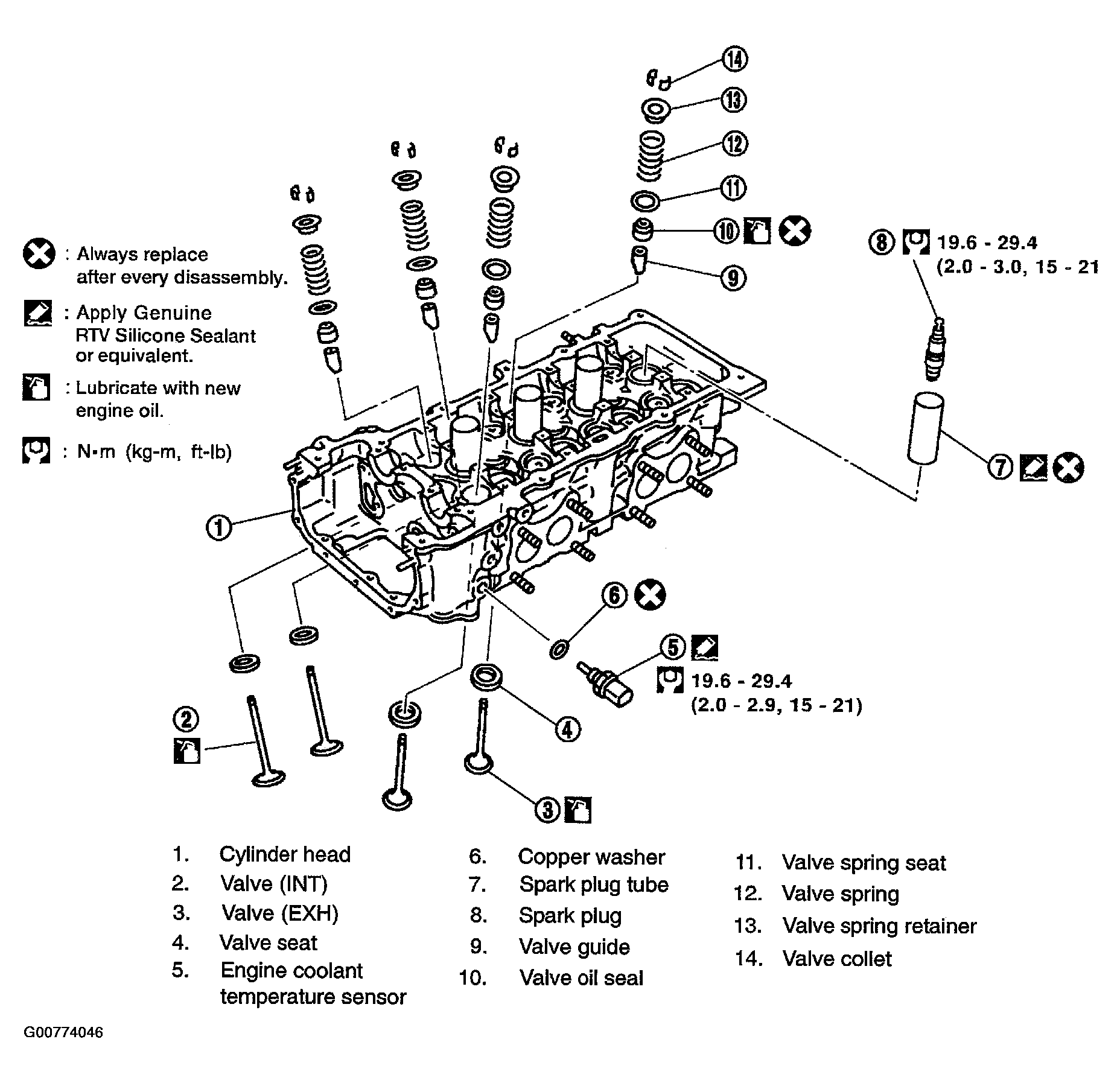

Fig 1: Removing Valve Parts
G00774046Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • When installing camshafts, chain tensioners, oil seals or other sliding parts, lubricate contacting surface with new engine oil.
  • Apply new engine oil to threads and seat surface when installing cylinder head, camshaft sprocket, crankshaft pulley and camshaft bracket.
  • Note valve lifter positions so as to ensure proper installation locations.
