Flywheel RUNOUT

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

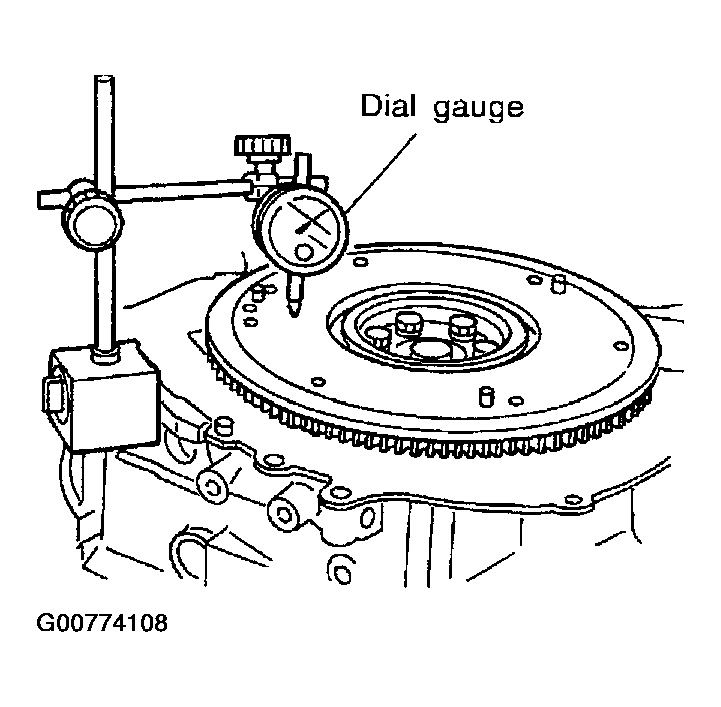

Fig 1: Measuring Flywheel Runout
G00774108Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Runout (Total indicator reading)
    1. Flywheel (M/T models) : Less than 0.15 mm (0.0059 in)
CAUTION:
  • Do not allow any magnetic materials to contact the ring gear teeth and rear plate.
  • Do not resurface flywheel. Replace as necessary.
