Cylinder Block: Inspection: Crankshaft

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Check crankshaft main and pin journals for score, wear or cracks.
With a micrometer, measure journals for taper and out-of-round.
1. Out-of-round, (X - Y)
  1. Standard : Less than 0.003 mm (0.0001 in)
  2. Limit : Less than 0.005 mm (0.0002 in)
2. Taper, (A - B)
  1. Standard : Less than 0.004 mm (0.0002 in)
  2. Limit : Less than 0.005 mm (0.0002 in)

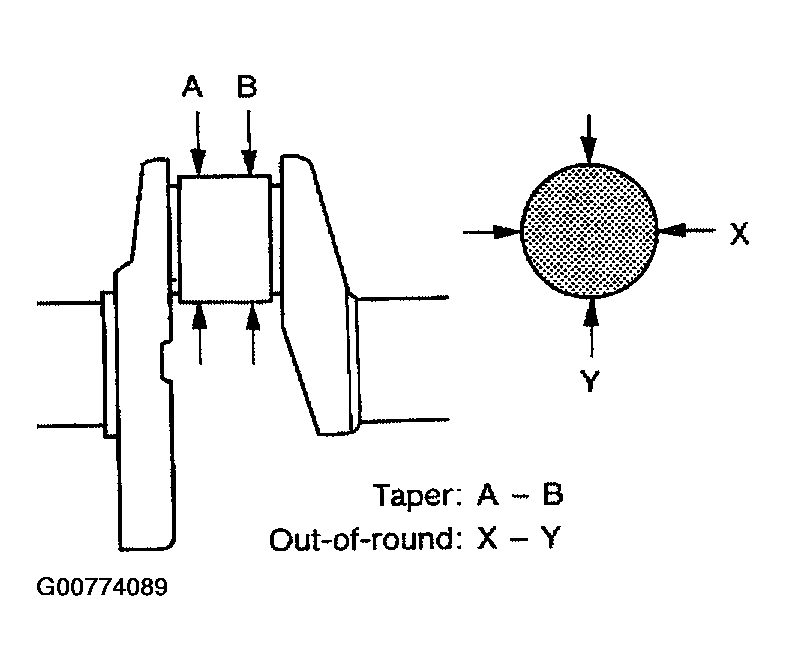

Fig 1: Identifying Crankshaft Main And Pin Journals
Courtesy of NISSAN MOTOR CO., U.S.A.
Measure crankshaft runout.
1. Runout, Standard (Total indicator reading) : Less than 0.04 mm (0.0016 in)
2. Limit : Less than 0.05 mm (0.0020 in)

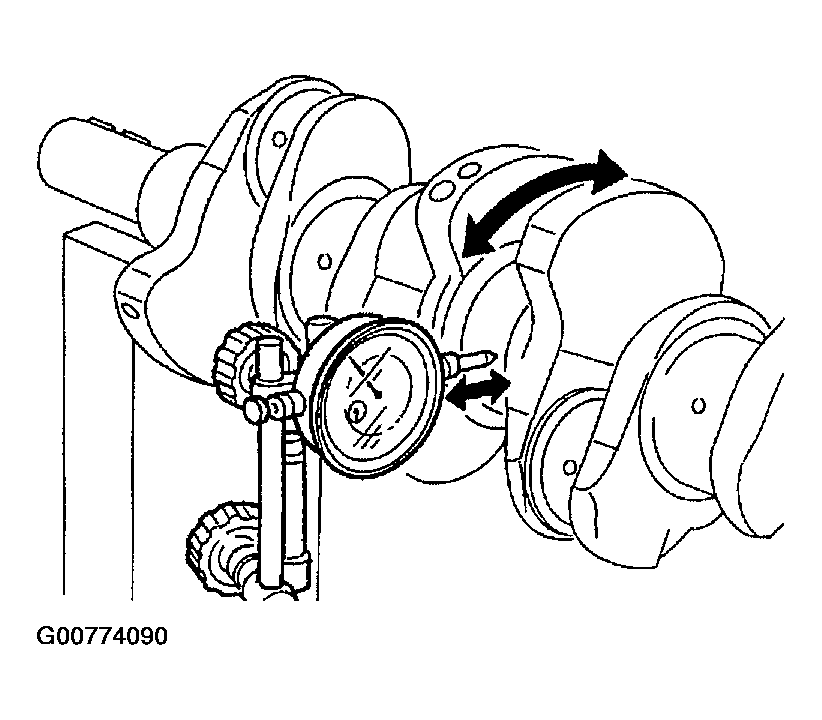

Fig 2: Measuring Crankshaft Runout
