Connecting Rod Bushing Clearance (Small End)

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Measure inner diameter "C" of bushing.

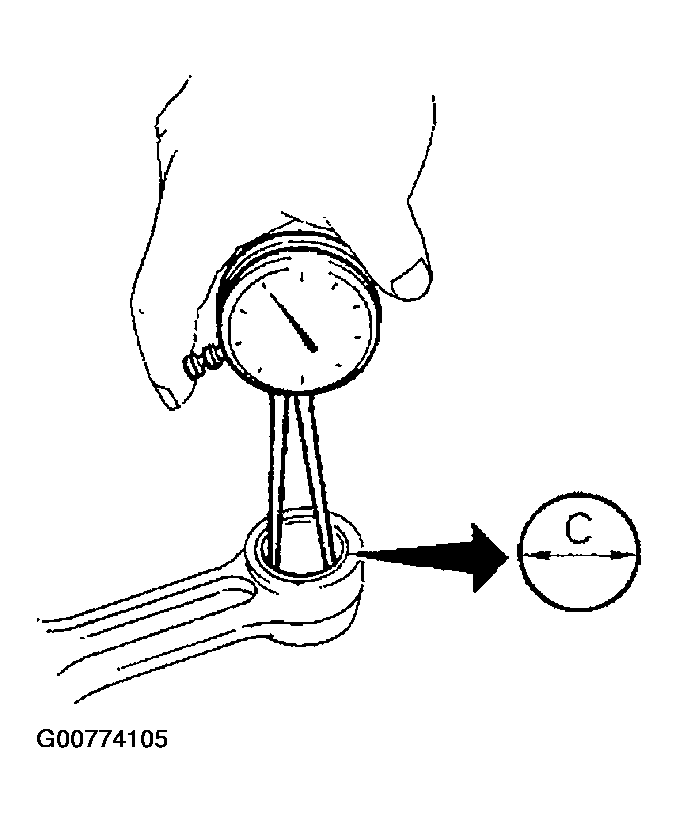

    Fig 1: Measuring Connecting Rod Bushing Inner Diameter
    G00774105Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Measure outer diameter "Dp" of piston pin.

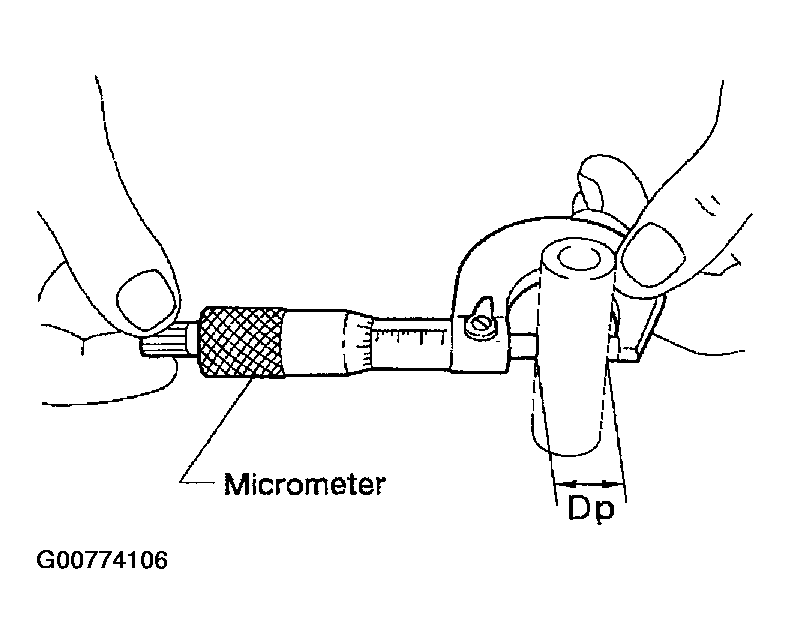

    Fig 2: Measuring Outer Diameter Of Piston Pin
    G00774106Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Calculate piston pin to connecting rod bushing clearance.
    1. Piston pin to connecting rod bushing clearance = C - Dp
      1. Standard : 0.005 - 0.017 mm (0.0002 - 0.0007 in)
      2. Limit : 0.023 mm (0.0009 in)
    • If it exceeds the limit, replace connecting rod assembly or connecting rod bushing and/or piston pin.
