Connecting Rod Bend And Torsion

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Bend Limit : 0.15 mm (0.0059 in) per 100 mm (3.94 in) length
Torsion Limit : 0.3 mm (0.012 in) per 100 mm (3.94 in) length

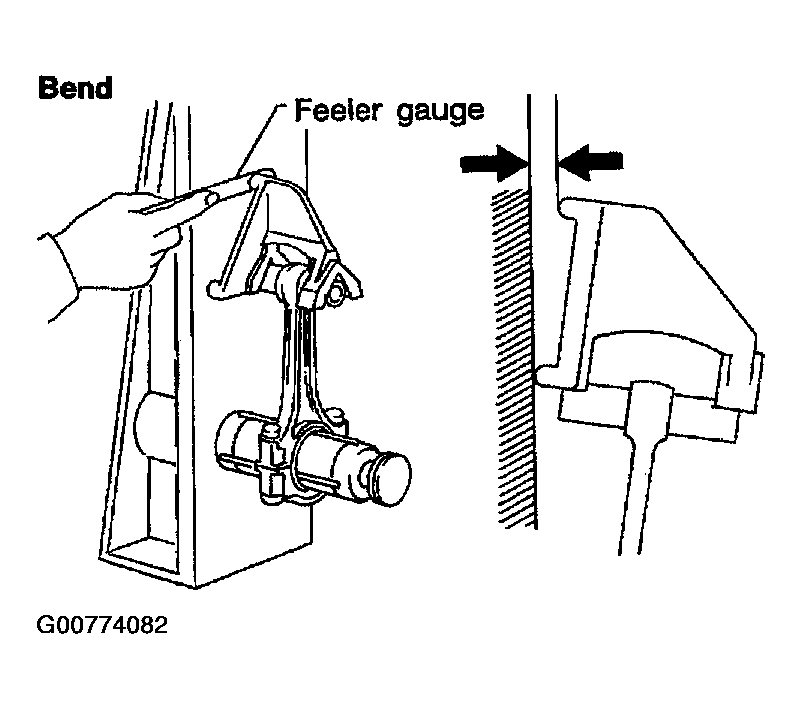

Fig 1: Checking Connecting Rod Bending
Courtesy of NISSAN MOTOR CO., U.S.A.

If it exceeds the limit, replace connecting rod assembly.

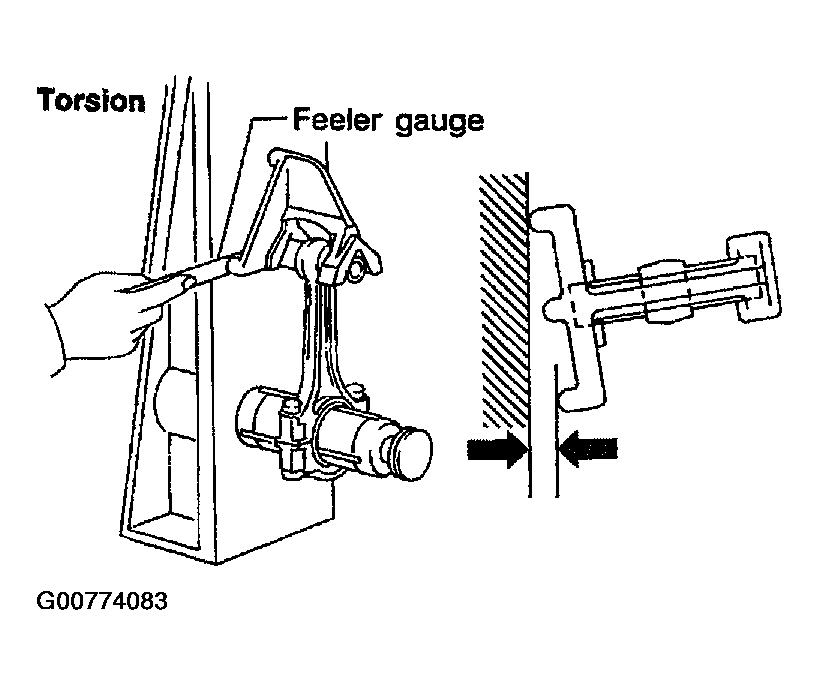

Fig 2: Checking Connecting Rod Torsion

Courtesy of NISSAN MOTOR CO., U.S.A.
