Method B (Using Plastigage)

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Do not turn crankshaft or connecting rod while Plastigage is being inserted.
  • If incorrect bearing clearance exists, use a thicker or undersized main bearing to ensure specified clearance.

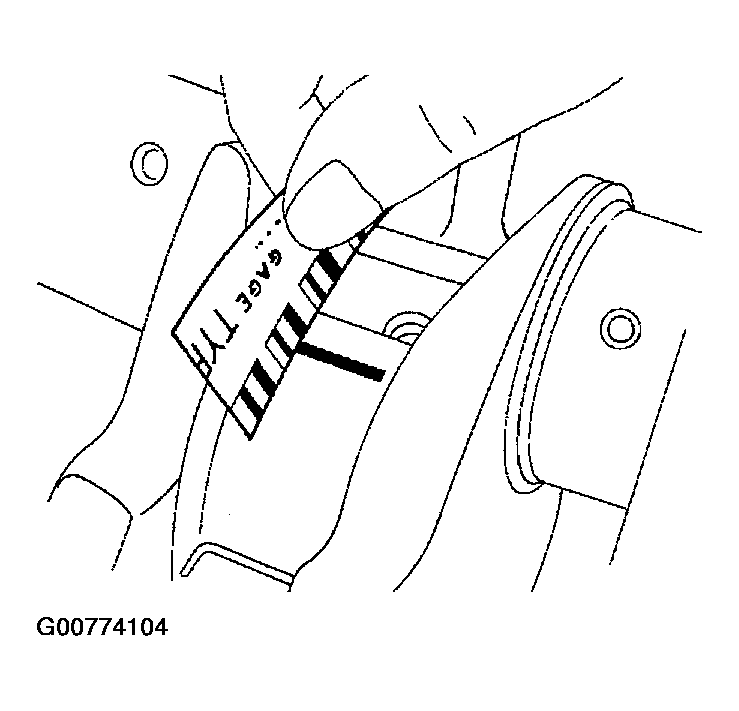

Fig 1: Using Plastigage
G00774104Courtesy of NISSAN MOTOR CO., U.S.A.
