Camshaft Sprocket Runout

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the camshaft sprocket on the camshaft.
  2. Measure camshaft sprocket runout while turning the camshaft by hand.
    1. Runout (total indicator reading : Less than 0.15 mm (0.0059 in)
  3. If it exceeds the specification, replace camshaft sprocket.

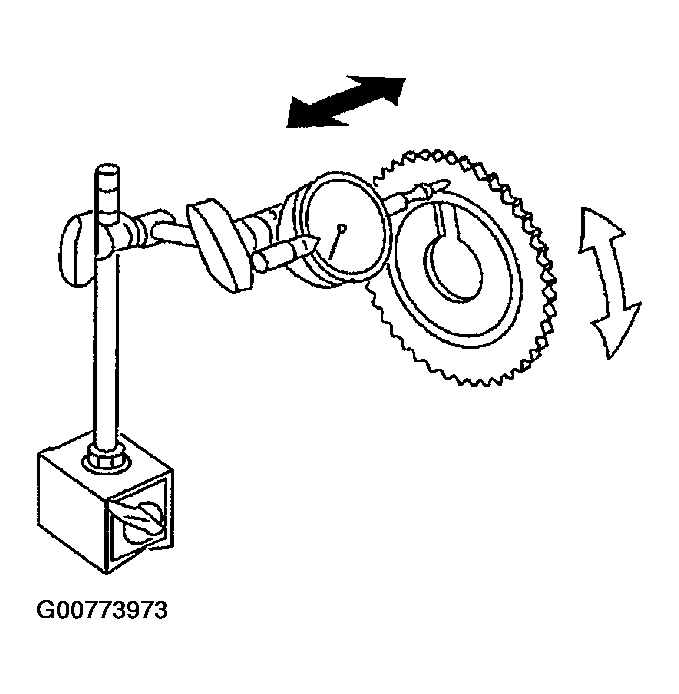

    Fig 1: Measuring Camshaft Sprocket Runout While Turning Camshaft By Hand
    G00773973Courtesy of NISSAN MOTOR CO., U.S.A.
