Camshaft Cam Height

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Measure the camshaft cam height.
1. Standard intake cam height :40.61 - 40.8 mm (1.599 - 1.606 in)
2. Standard exhaust cam height :38.965 - 39.155 mm (1.534 - 1.542 in)
3. Cam wear limit :0.20 mm (0.0079 in)
If wear is beyond the limit, replace the camshaft.

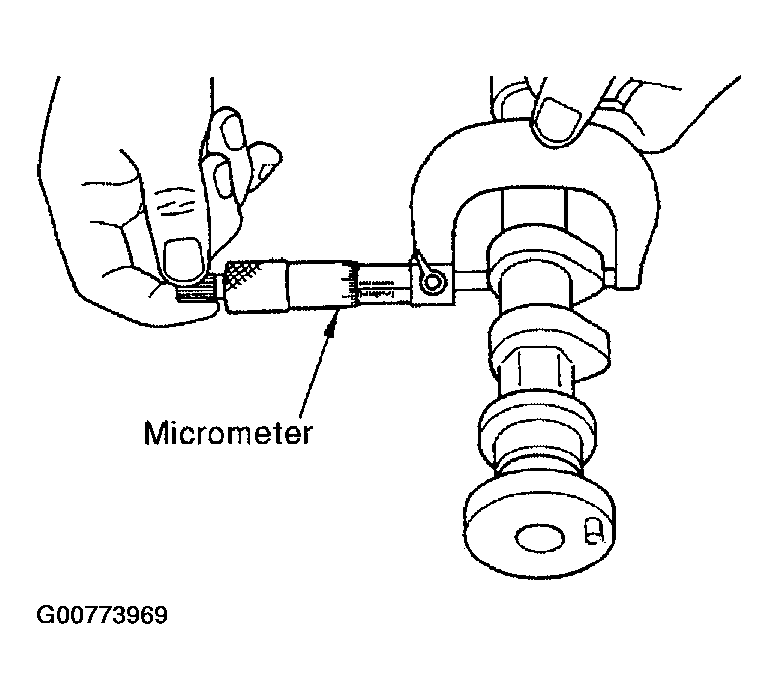

Fig 1: Checking Camshaft Cam Height
Courtesy of NISSAN MOTOR CO., U.S.A.
