Hose Removal And Installation

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

To prevent damage to rubber hose, do not pry off rubber hose with tapered tool or screwdriver.

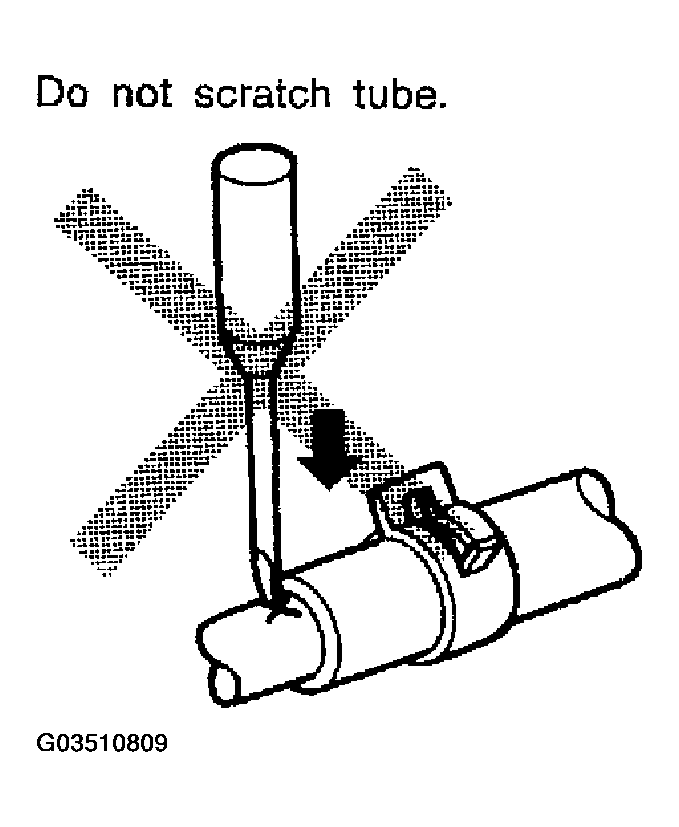

Fig 1: Precaution Do Not Scratch Tube
Courtesy of NISSAN MOTOR CO., U.S.A.
To reinstall the rubber hose securely, make sure that hose insertion length and orientation is correct. (If tube is equipped with hose stopper, insert rubber hose into tube until it butts up against hose stopper.)

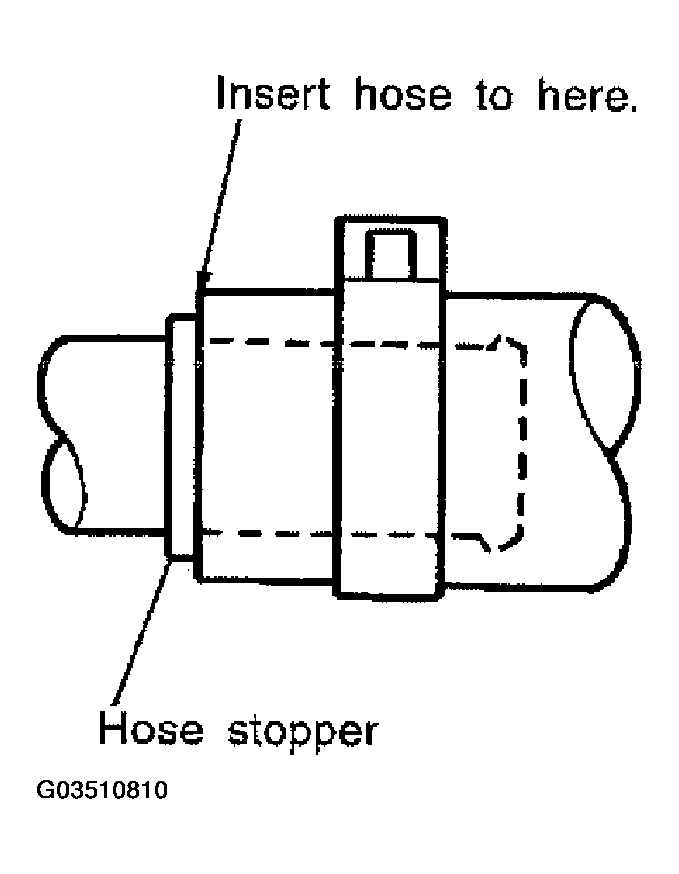

Fig 2: Reinstalling Rubber Hose

Courtesy of NISSAN MOTOR CO., U.S.A.
