Garage Jack and Safety Stand

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Never get under the vehicle while it is supported only by the jack. Always use safety stands when you have to get under the vehicle.
  • Place wheel chocks at both front and back of the wheels on the ground.

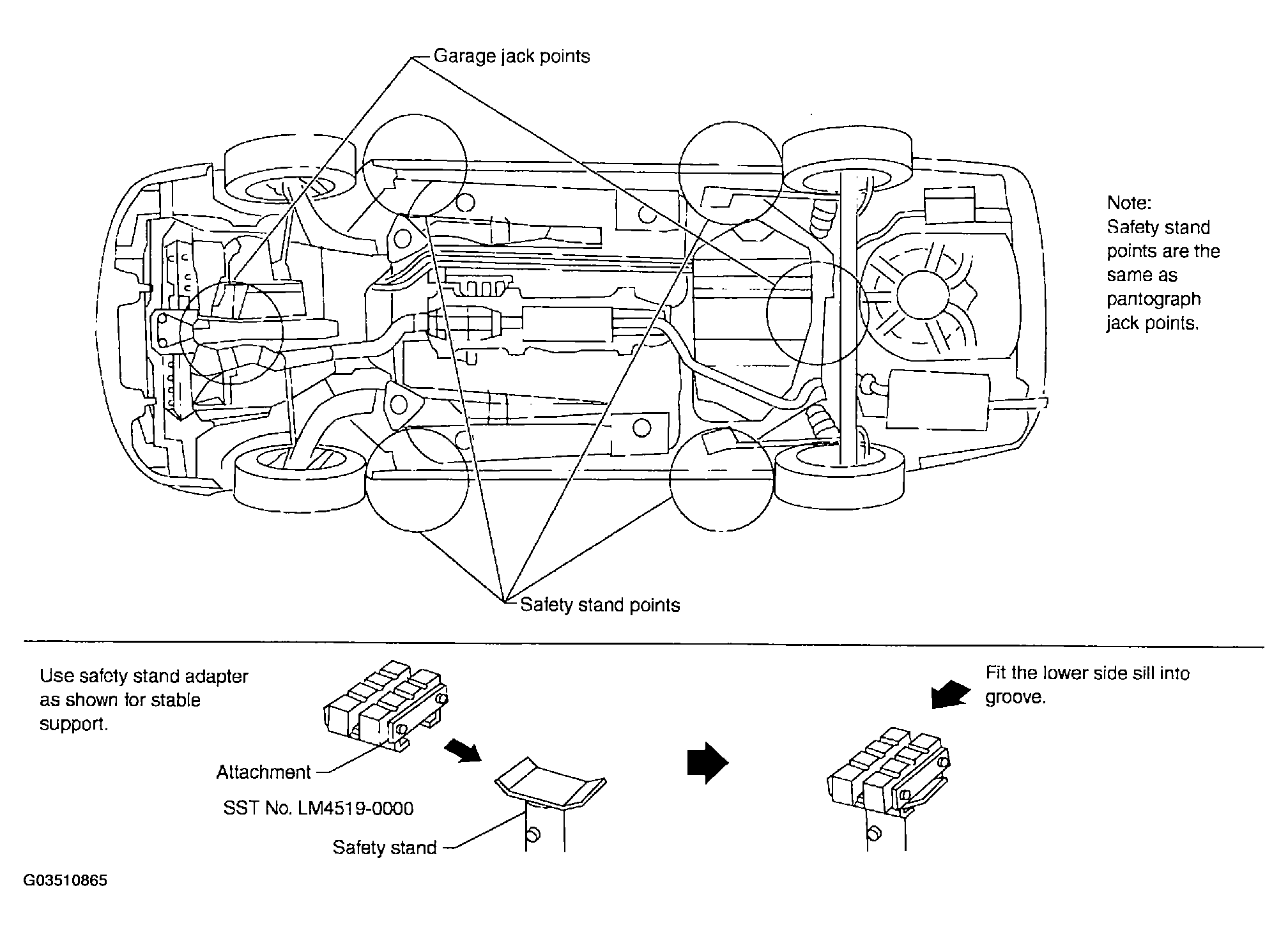

Fig 1: Identifying Garage Jack And Safety Stand Points
G03510865Courtesy of NISSAN MOTOR CO., U.S.A.
