Connector Symbols

WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

Most of connector symbols in wiring diagrams are shown from the terminal side.

Connector symbols shown from the terminal side are enclosed by a single line and followed by the direction mark.
Connector symbols shown from the harness side are enclosed by a double line and followed by the direction mark.
Certain systems and components, especially those related to OBD, may use a new style slide-locking type harness connector.

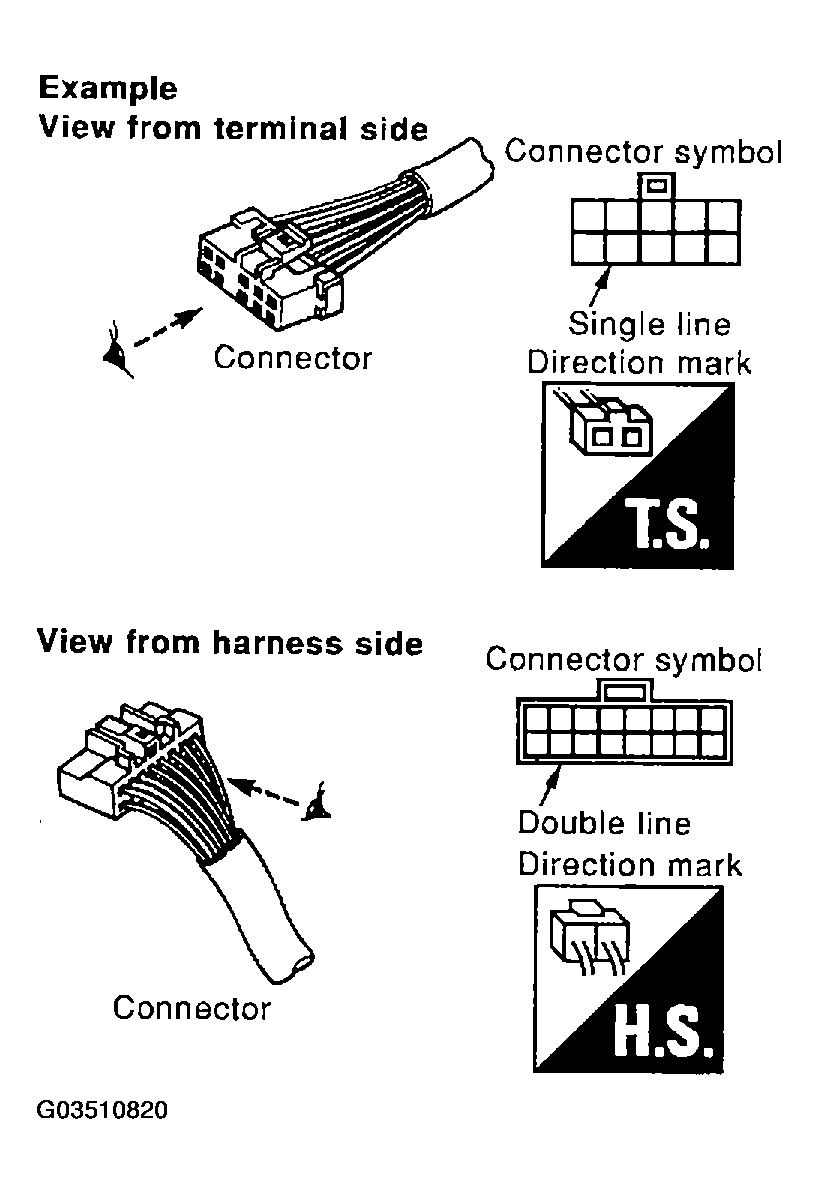

Fig 1: Identifying Connector Symbols From Terminal Side
Courtesy of NISSAN MOTOR CO., U.S.A.
Male and female terminals
Connector guides for male terminals are shown in black and female terminals in white in wiring diagrams.

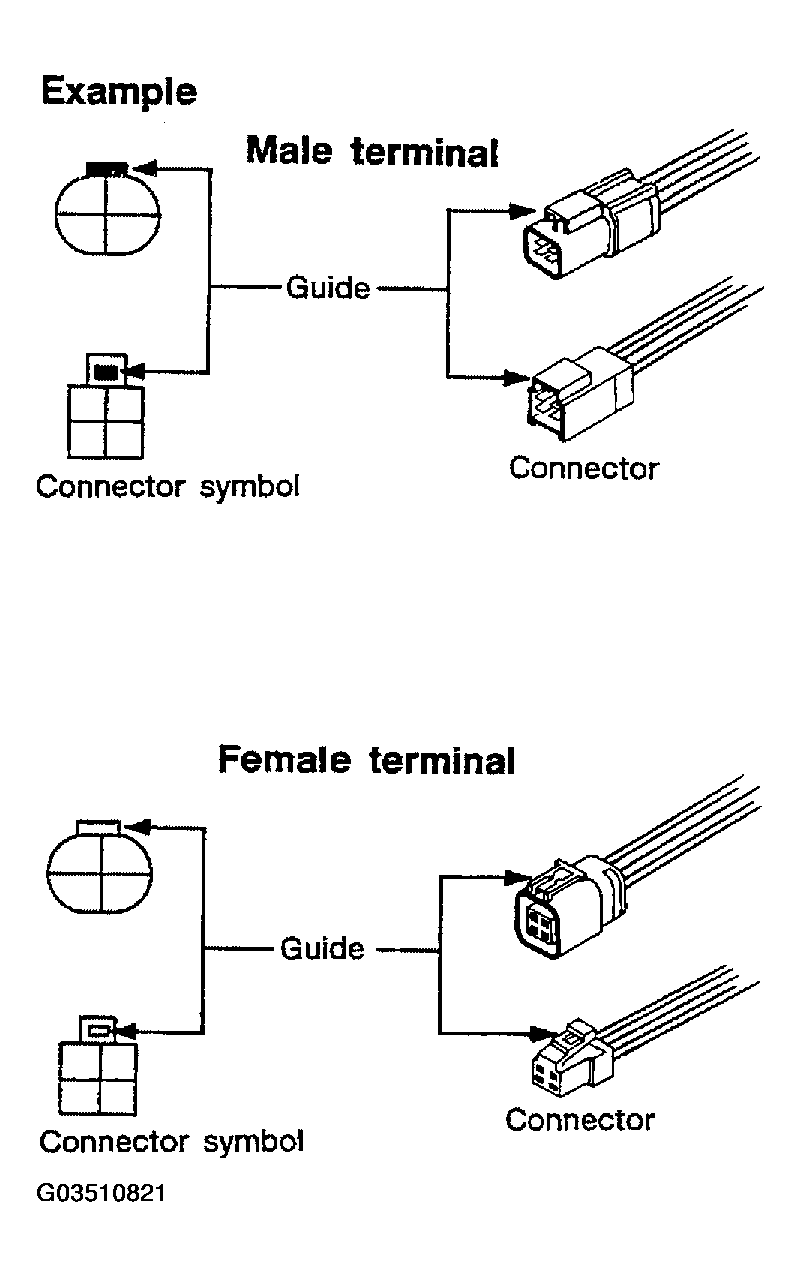

Fig 2: Identifying Male And Female Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.
