Key To Symbols Signifying Measurements Or Procedures
WARNING: This page is about a different car, the 2004 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

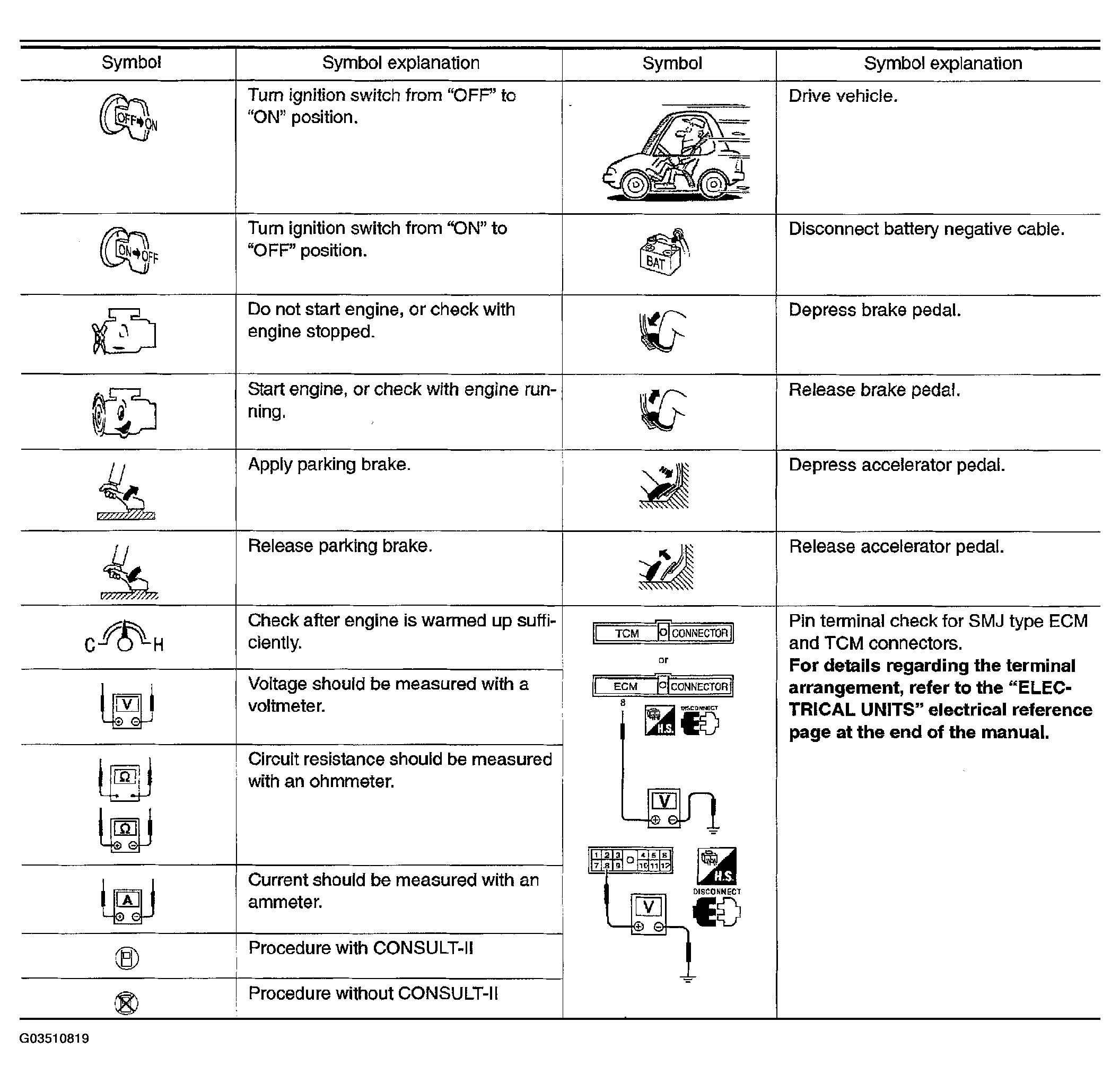

Fig 1: Identifying Key Symbols Signifying (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

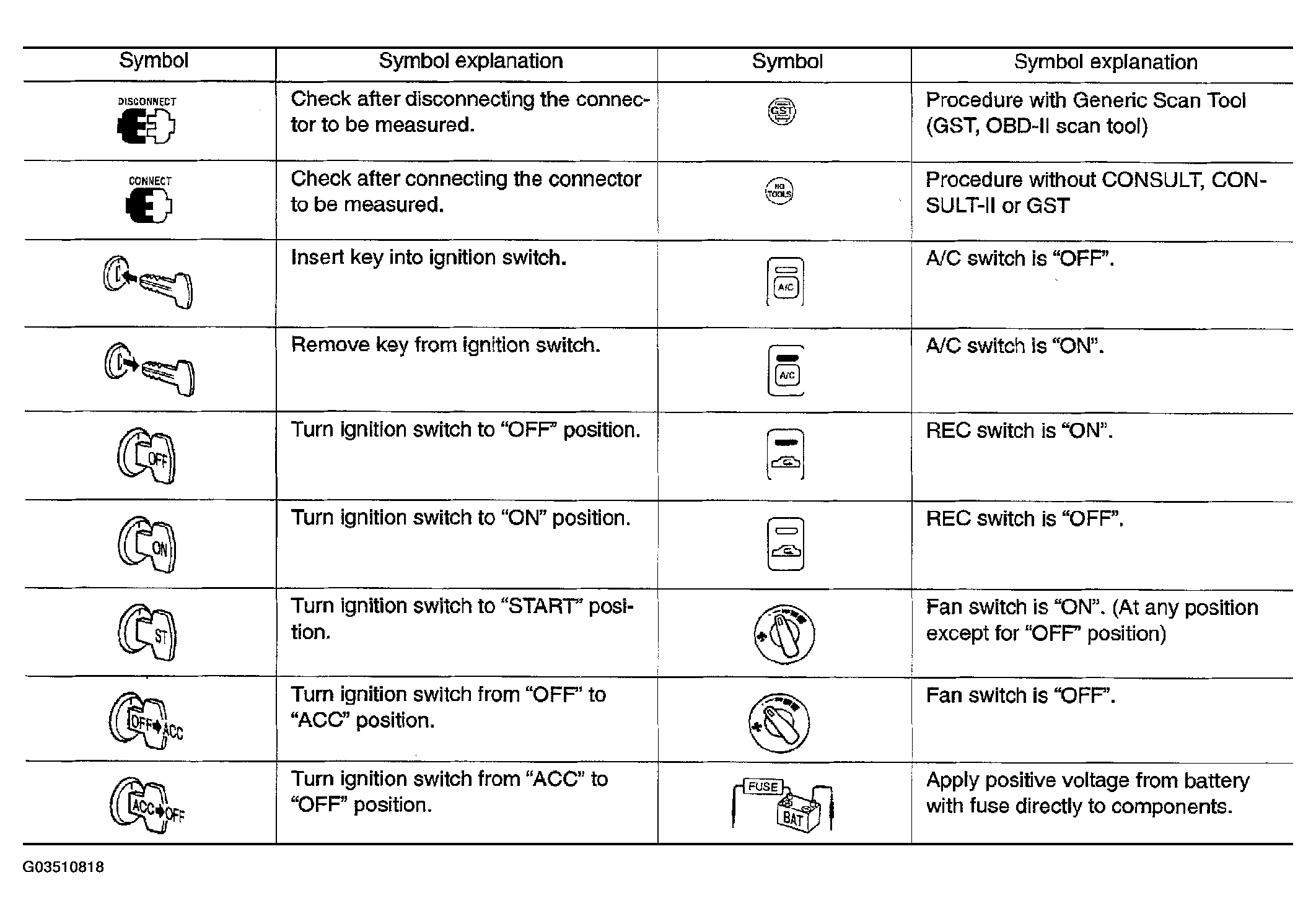

Fig 2: Identifying Key Symbols Signifying (2 Of 2)
