Removal And Installation

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Raise up rear seat cushion.
Remove outer anchor bolt.[A]
Remove rear side upper and lower garnish. Refer to "SIDE AND FLOOR TRIM " for details.

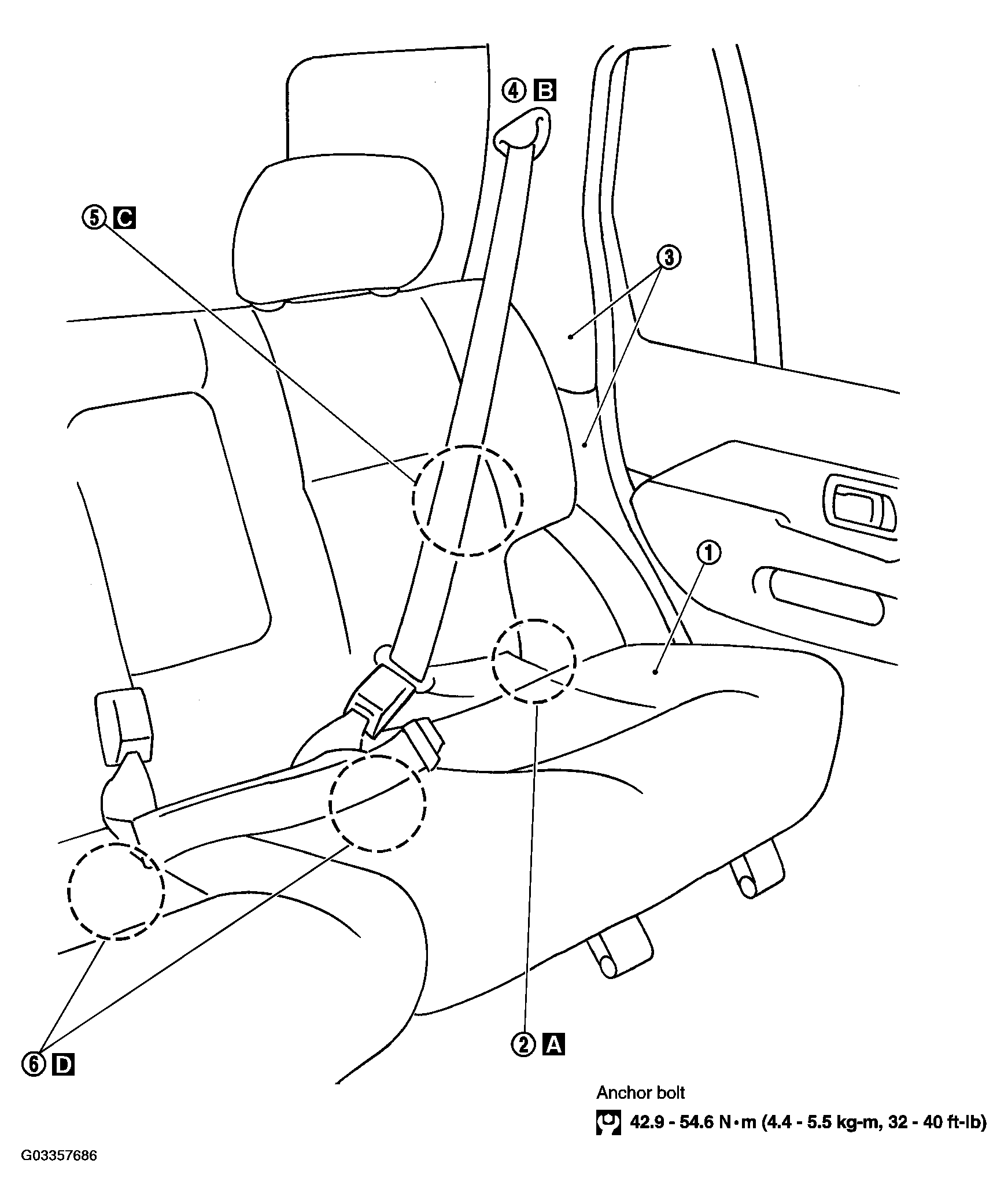

Fig 1: Seat Belt Illustration

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove anchor through-bolt.[B]
Remove anchor bolt and bolt securing rear seat belt retractor, then remove seat belt and seat belt retractor.[C]
Remove each anchor bolt.[D]

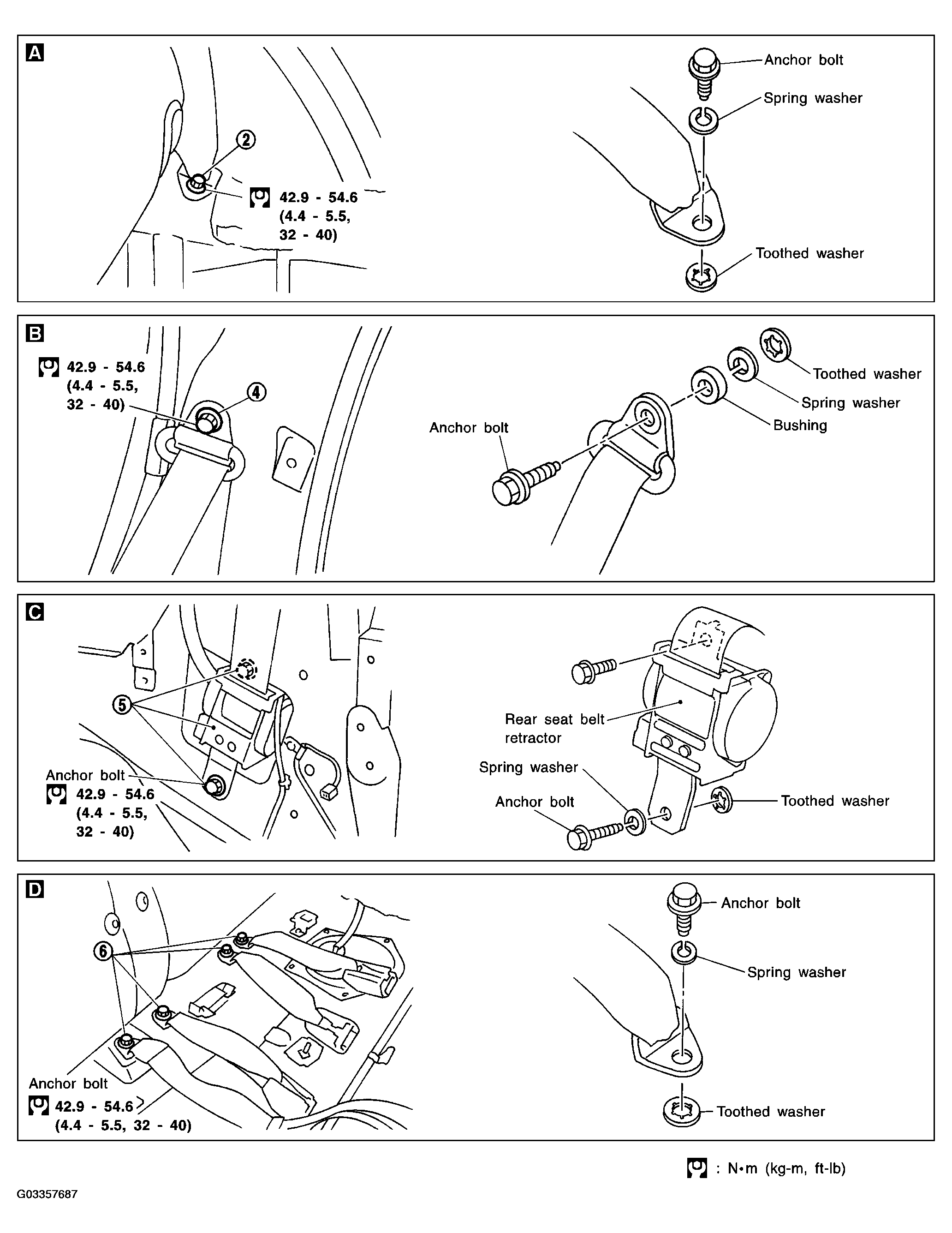

Fig 2: Removal And Installation View Of Rear Seat Belt
Courtesy of NISSAN MOTOR CO., U.S.A.
