Removal And Installation

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the seat all the way forward and tilt the seatback toward the front.
  2. Remove adjuster cover. [A]
  3. Remove floor anchor bolt. [B]
  4. Remove shoulder anchor bolt. [C]
  5. Remove center pillar upper and lower garnish. Refer to SIDE AND FLOOR TRIM for details.
  6. Disconnect seat belt pre-tensioner connector.
  7. Remove the bolt securing seat belt retractor, then remove seat belt and seat belt retractor.
  8. Remove bolts securing seat belt adjuster, then remove seat belt adjuster.

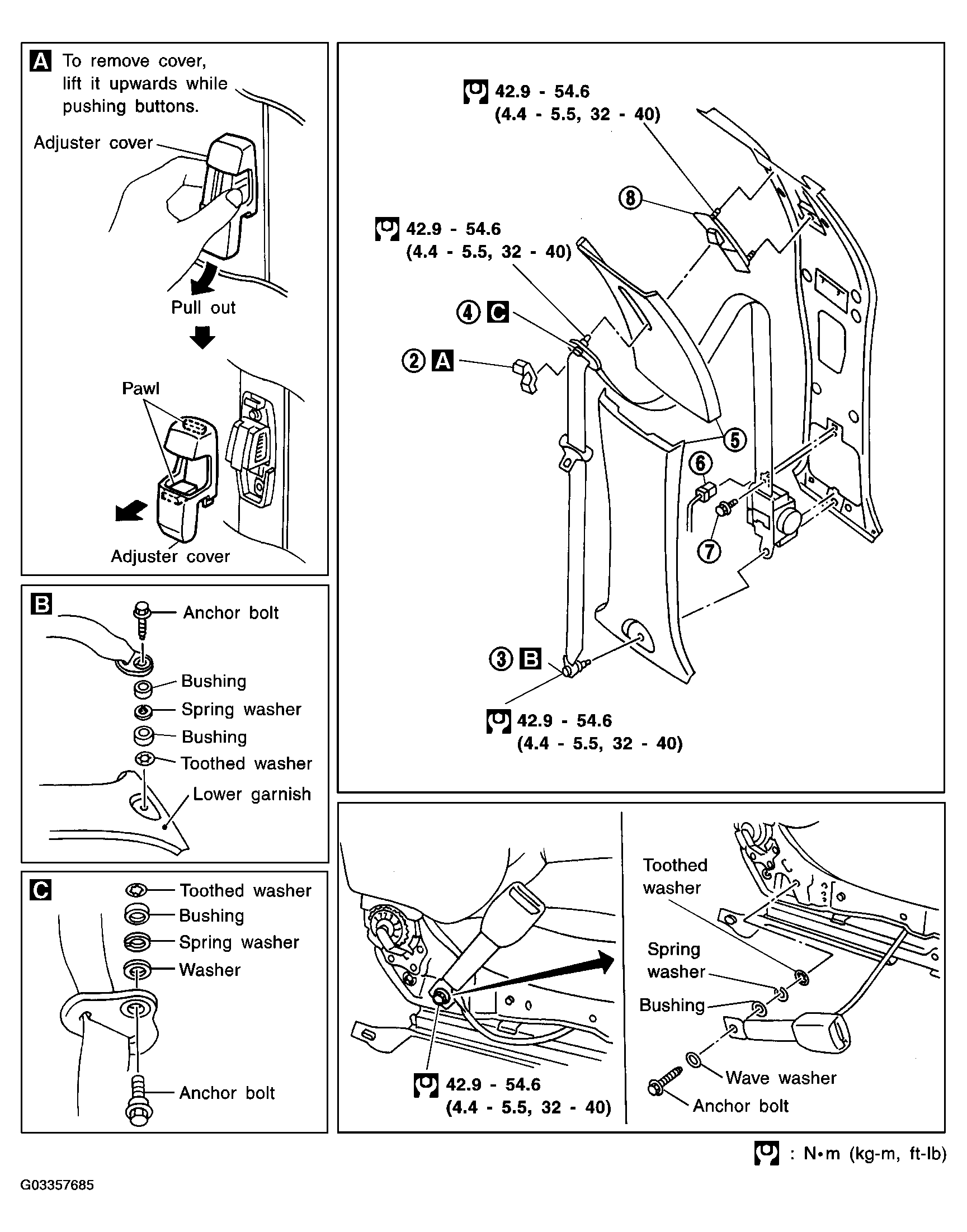

    Fig 1: Removal And Installation View Of Front Seat Belt
    G03357685Courtesy of NISSAN MOTOR CO., U.S.A.
