Check "L" Terminal Circuit

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

CHECK "L" TERMINAL CONNECTION
Check to see if "L" terminal is clean and tight.

OK or NG
1. OK: GO TO 2.
2. NG: Repair "L" terminal connection. Confirm repair by performing complete Battery/Starting/Charging system test.
CHECK "L" TERMINAL CIRCUIT
1. Disconnect F1 connector from generator.
2. Apply ground to connector F1 terminal L (BR/Y) with the ignition switch in the ON position.
CHARGE lamp should light up.

OK or NG
1. OK: Replace the generator. Confirm repair by performing complete Battery/Starting/Charging system test.
2. NG: Check the following.
  - 10A fuse [No. 14, located in fuse block (J/B)]
  - CHARGE lamp
  - Harness for open or short between combination meter and fuse
  - Harness for open or short between combination meter and generator

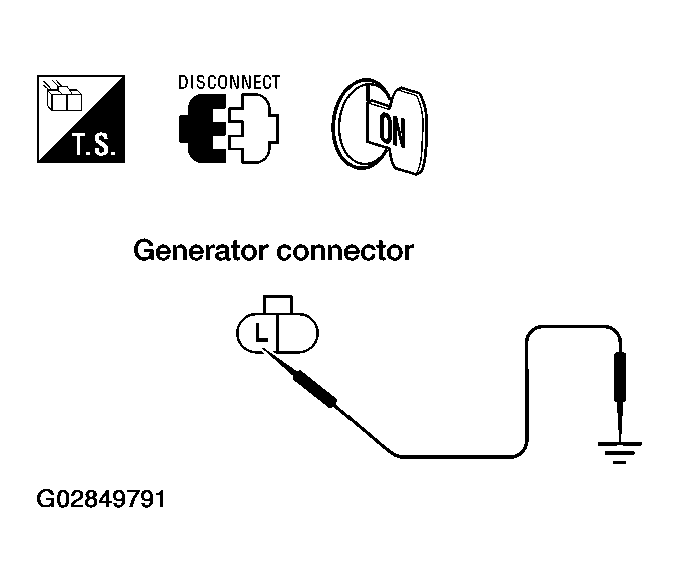

    Fig 1: Applying Ground To Connector F1 Terminal L (BR/Y)
    Courtesy of NISSAN MOTOR CO., U.S.A.
