Removal And Installation: Qr25DE: Removal
WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal.
- Remove the engine cover.
- Remove the front/right-side engine undercover, using power tools.
- Remove the drive belt.
- Disconnect the generator harness connector.
- Disconnect the engine ground wire from top mount.
- Remove the generator upper and lower mounting bolts, using power tools.

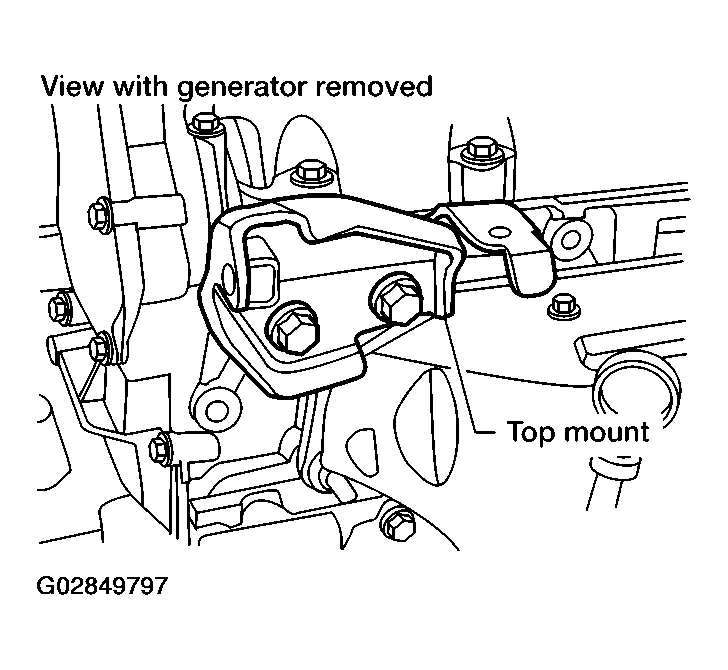

- Set the generator aside and remove the generator top mount.
- Slide the generator out and remove.
