Without Tachometer

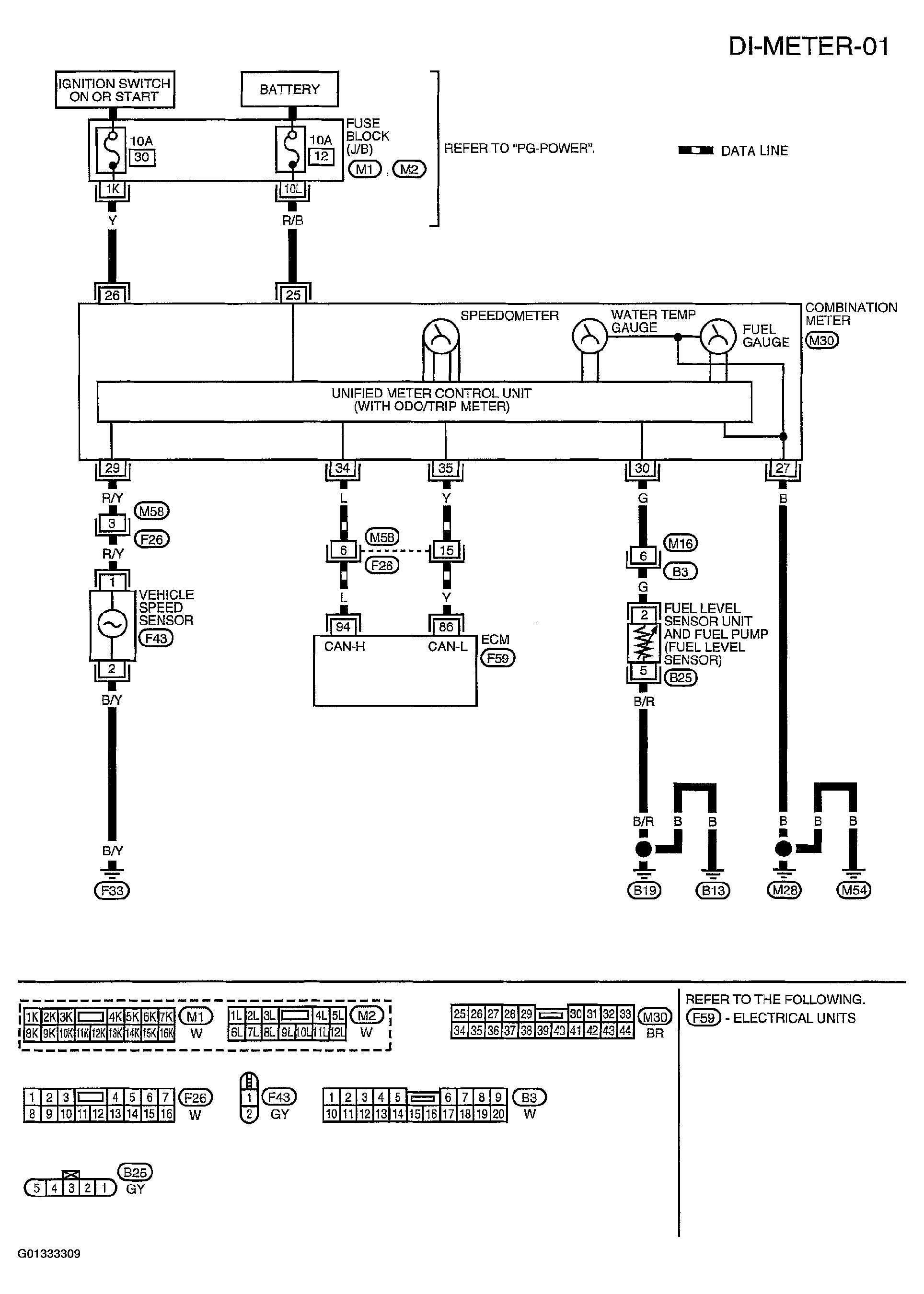

Fig 1: Wiring Diagram - METER - Without Tachometer

G01333309

Courtesy of NISSAN MOTOR CO., U.S.A.
