NVIS (NISSAN Vehicle Immobilizer System - NATS)
>>
NVIS (NISSAN Vehicle Immobilizer System-NATS)
>>
Trouble Diagnoses
>>
Symptom Matrix Chart 2
Symptom Matrix Chart 2
Non self-diagnosis related item

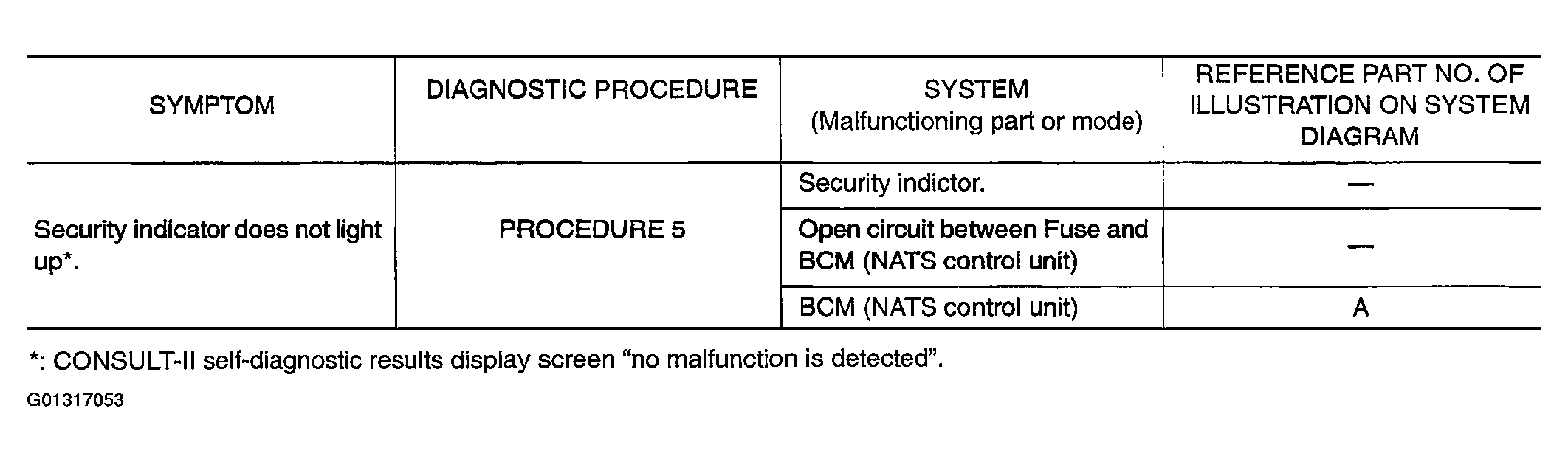

Fig 1: Symptom Matrix Chart 2 - Non Self-Diagnosis Related Item
Courtesy of NISSAN MOTOR CO., U.S.A.
