Locating Vehicle Immobilizer System Components And Harness Connector

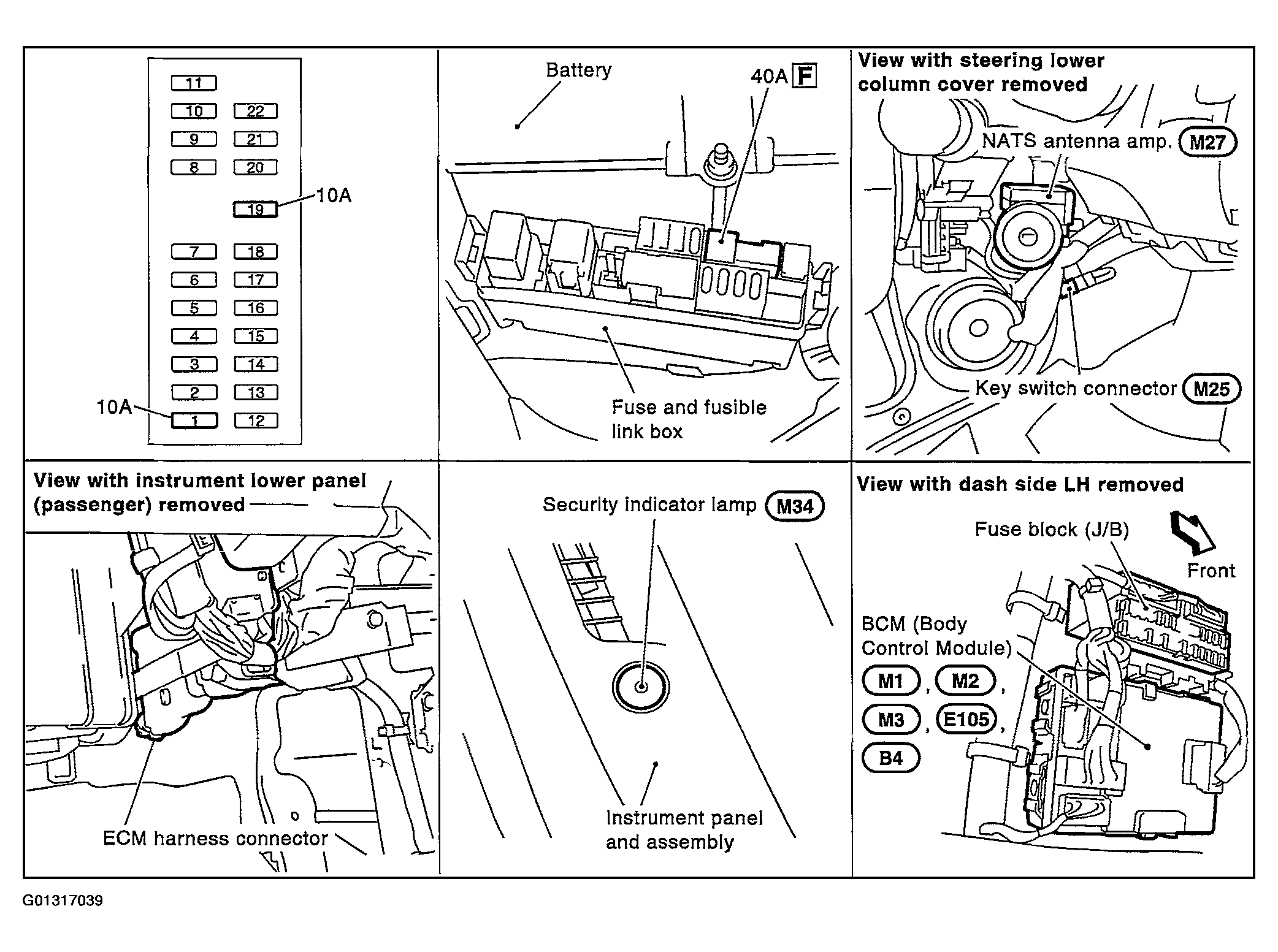

Fig 1: Component Parts And Harness Connector Location

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: If customer reports a "No start" condition, request ALL KEYS to be brought to an NISSAN dealer in case of a NVIS (NATS) malfunction.
