How To Replace NATS Antenna Amp.

NOTE:
  • If NATS antenna amp. is not installed correctly, NVIS (NATS) system will not operate properly and SELF-DIAG RESULTS on CONSULT-II screen will show "LOCK MODE" or "CHAIN OF IMMU-KEY".
  • Initialization is not necessary only when NATS antenna amp. is replaced with a new one.

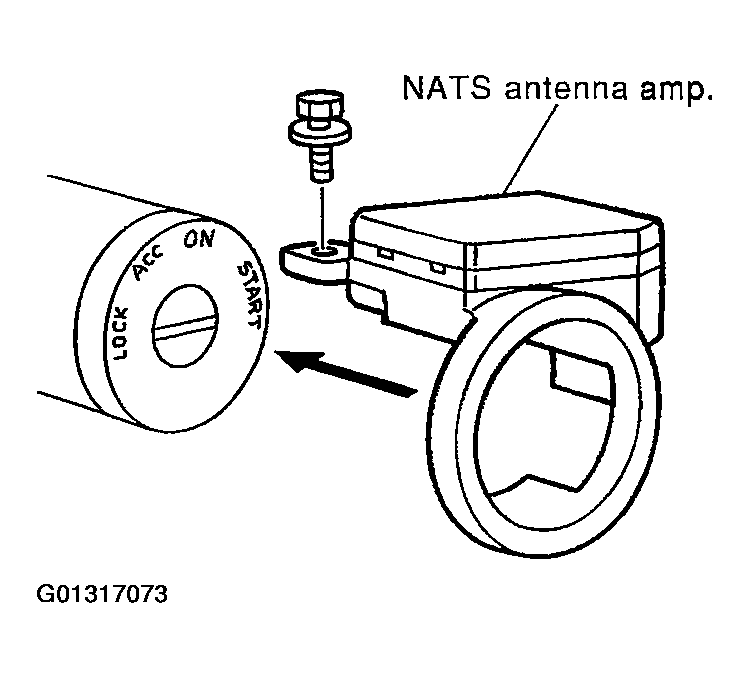

Fig 1: Replacing NATS Antenna Amp.
G01317073Courtesy of NISSAN MOTOR CO., U.S.A.
